Generator type: Synchronous permanent magnet 3 phase AC
Magnetic steel material: 38SH NdFeB class of insulation: B
Housing material: Cast iron/ aluminium shaft material: 45# steel
Rated rotate speed: 50 RPM
Rated voltage: 48VAC/96VAC/120VAC/220VAC/240VAC
Grade of protection: IP54 weight: 158kg (cast iron) / 129kg (aluminium)
Start up torque: 9.31Nm (cast iron) / 13.72Nm(aluminium)
Rated torque at rated speed: 554Nm
Remark: The design load electric resistance of above data is 4.6 Ω .

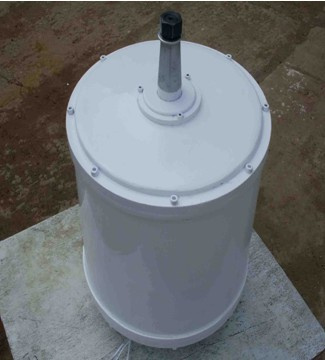

| 2KW50RPM 96V Vertical Generator Design Data |
| rpm | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 |
| no-load voltage ( Vac ) | 14 | 28 | 42 | 56 | 70 | 84 | 98 | 112 | 126 | 140 | 154 |
| load voltage (Vac) | 10 | 20 | 30 | 40 | 49 | 59 | 69 | 78 | 88 | 97 | 106 |
| load current (A) | 1.2 | 2.5 | 3.7 | 5 | 6.2 | 7.4 | 8.6 | 9.8 | 11 | 12.1 | 13.3 |
| output power(W) | 21 | 84 | 189 | 335 | 523 | 750 | 1016 | 1319 | 1657 | 2030 | 2435 |
| torque (Nm) | 61 | 119 | 176 | 233 | 289 | 345 | 399 | 452 | 504 | 554 | 604 |
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
