Diesel Generator
1. CE&ISO9001 approved, powered by KAIAO advanced air-cooled diesel engine Low noise
2. Ideal for home emergency use or as standby power supply
3. Large fuel tank, ensuring hours of continuous output
4. Advanced direct fuel injection system
5. A variety of specially-designed control panels available for different markets
Wuxi Kaiao Power Machinery Co., Ltd. specialized in the development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, etc.
|

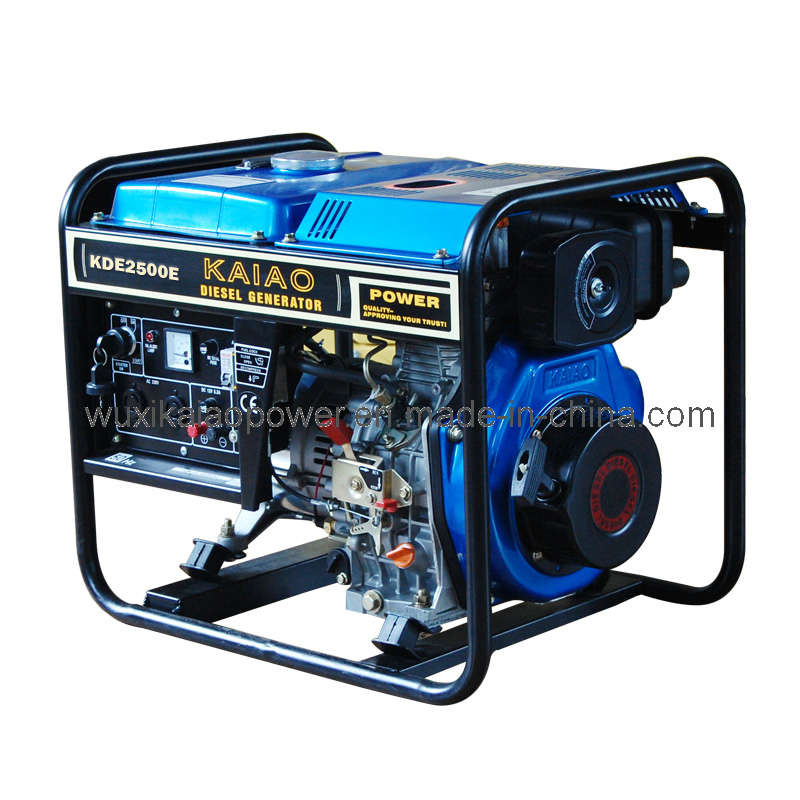

Diesel generator KDE2500E |
|
Generator Model |
KDE2500E |
|
Frequency (Hz) |
50 |
60 |
|
Output power (KVA) |
1.7 |
2 |
|
Max. Power(KVA) |
2 |
2.2 |
|
Voltage (V) |
115/230 |
120/240 |
|
Current (A) |
14.9/7.4 |
16.7/8.3 |
|
Engine speed (r/min) |
3000 |
3600 |
|
Phase |
Singe-phase |
|
Power facter |
1 |
|
Excitation system |
Self-excited constant voltage |
|
Noise level (7m) |
Type E: 77 |
|
Fuel tank capacity (L) |
Type E: 12.5 |
|
Structure |
E: open frame |
|
Panel |
Ordinary |
|
Outputsocket |
Two |
|
Output terminal post |
No |
|
DC12V output |
Terminal post |
|
Net weight |
E: 56 |
|
Dimension(L*W*H) |
E: 680*530*590 |
|
Engine Model |
KA170F |
|
Engine Type |
Single-cylinder, vertical, air-cooled, direct injection, four-stroke |
|
Bore*stroke (mm) |
70*55 |
|
Displacement (L) |
0.211 |
|
Power (KW) |
2.53 |
2.8/3600 |
|
Fuel consumption rate (g. KW/h) |
280.2 |
288.3 |
|
Compression ratio |
20 |
|
Lubrication system |
Spring |
|
Engine starting system |
Type X: Rocoil starter Type E: Electric starter |
|
Diesel oil model |
Summer: 0#, winter: -10# |
|
Lube oil model |
SAE10W-30 (above CD grade) |
|
Lube oil capacity (L) |
0.75 |
|
Battery capacity(V-AH) |
12V-36Ah |
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)
Air-cooled diesel generator light tower(400W-10000W)
Air-cooled gasoline generator (650W-5000W)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.
Electric welding set, construction machinery, and gardenging machinery, etc.
