Output Type: AC Three Phase
Speed: 1500RPM, 1800RPM
Frequency: 50Hz, 60Hz
Rated Power: 27kVA/220KW
Rated Voltage: 110/220V, 220/380V, 230/400V, 240/415V, 254/440V, 277/480V
Rated Current: 180AMP at 400V
Engine: Doosan
Alternator: Leroy somer, Stamford, Marathon
Controller: Deepsea, Woodward, DEIF, ComAp
Quality control: ISO9001, ISO14000, CE, SONCAP
Warranty: 1 year or 1000 hours

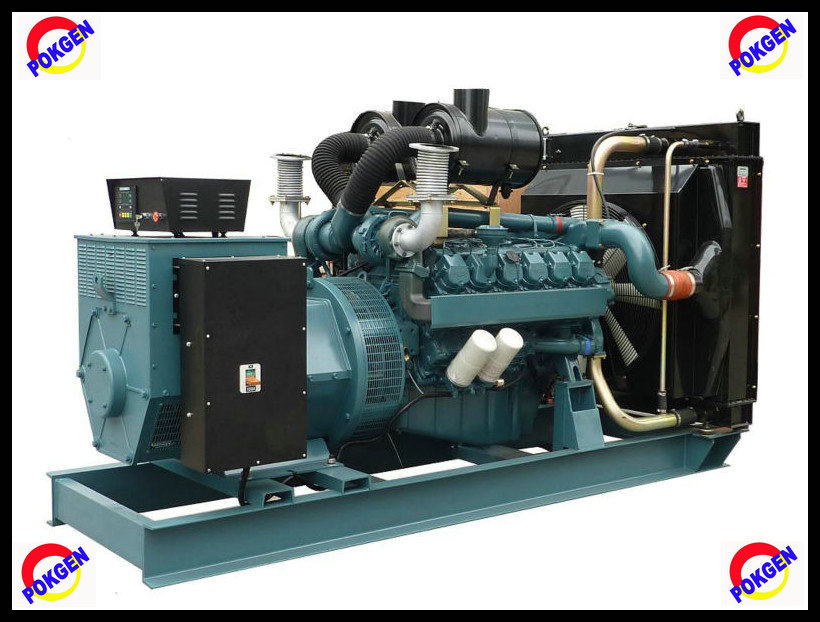

275kVA/220kw Doosan generator with ISO & CE
8hours base tank
50degree radiator
Low noise diesel generator
Type: Diesel generator
Generator Supply Scope:
1. Engine, alternator, radiator, auto control panel.
2. Base frame, base fuel tank, Flexible pipes, flange, exhaust silencer.
3. Battery, battery charger, battery wires, internal cables, circuit breaker.
4. Manual books of engine, alternator, genset, control panel, wires diagram.
Manufacturer |
Doosan Heavy Industries & Construction |
Model |
P126TI |
Engine Power |
|
--Continuous power |
206KW |
--Prime Power |
242KW |
--Standby Power |
272KW |
MECHANICAL SYSTEM:
Engine Type |
In-line 4 cycle, water cooled, turbo charged & intercooled |
Combustion type |
Direct injection |
Cylinder Type |
Replaceable dry liner |
Number of cylinder |
6 |
Bore x stroke |
123 x 155 mm |
Displacement |
11.051 lit |
Compression ratio |
17: 1 |
Firing order |
1-5-3-6-2-4 |
Injection timing |
16° BTDC |
Fly wheel housing |
SAE NO. 1 |
Fly wheel |
Clutch NO. 14 |
Rotation |
Counter clockwise viewed from flywheel |
ALTERNATOR GENERAL DATA:
Manufacturer / Model |
Leroy-somer Electro-technique (Fuzhou) Company Ltd. |
Model |
LSA46.2 L9 |
Output power |
220KW |
AVR model |
R250 |
Number of phase |
3 |
Power factor (Cos Phi) |
0.8 |
Altitude |
≤ 1000 m |
Overspeed |
2250RPM |
Number of Pole |
4 |
Exciter type |
Shunt |
Insulation class |
H |
Voltage regulation |
± 0.5% |
Sustained short circuit current |
300% (3 IN): 10s |
Total harmonics (TGH/THC) |
< 4 % |
Wave form: NEMA = TIF |
< 50 |
Wave form: I. E. C. = THF |
< 2% |
Bearing |
single |
Coupling |
Direct |
