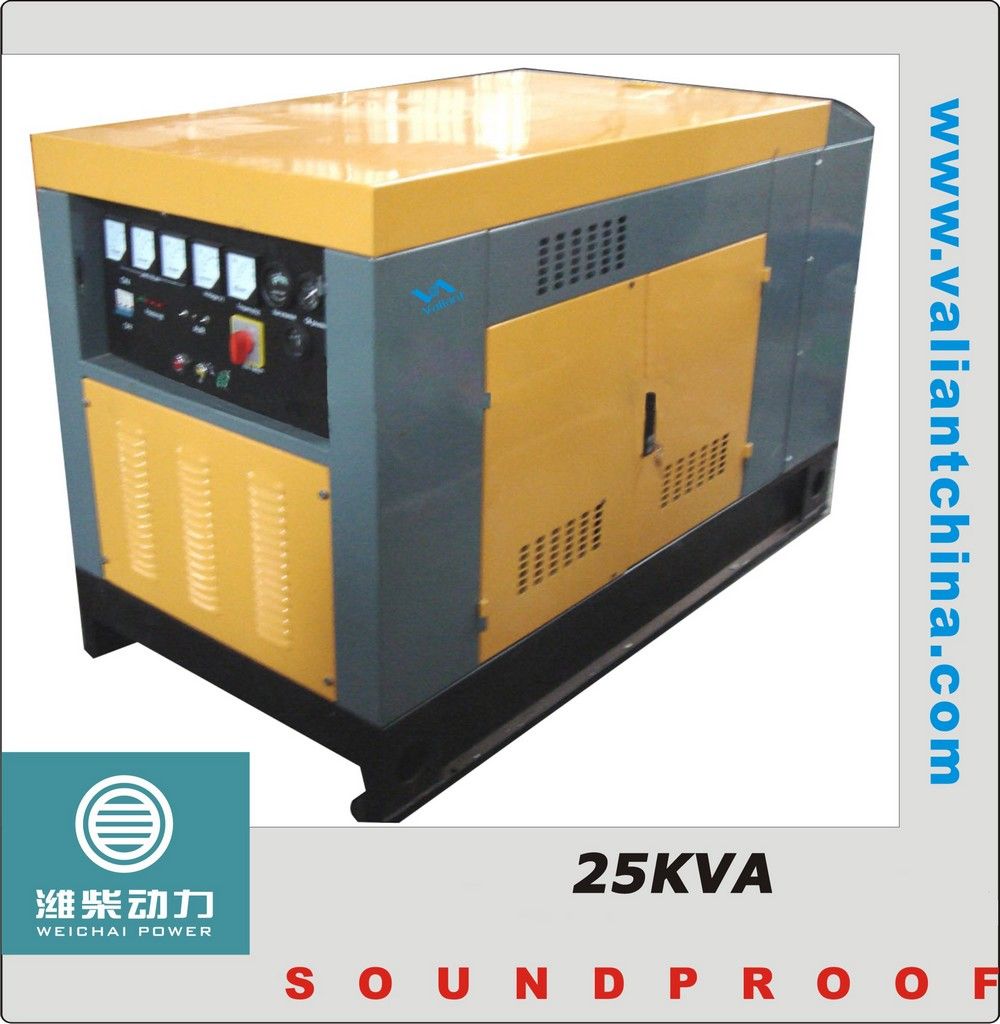

1. Weicai Engine, Stanford Alternator(Made in Shanghai, China) water cooled power generators;
2. Rated Power: 20KW/25kVA;
3. ISO9001: 2000 Certificate;
It is Popular in the whole Asia, especially in Yemen, India, Pakistan, Bangladesh, Iran etc.
Welcome to share your ideas with us in this field.
|
Gensets Model |
VW25E |
|
Rated power(kW/kVA) |
20/25 |
|
Max. power(kW/kVA) |
22/27.5 |
|
Frequency(Hz) |
50 |
|
Noice level for silent type (Db) |
75 |
|
Engine |
4 Stroke, water cooled |
|
Model type |
495D |
|
12 hours rated power(kw) |
26.5 |
|
Cylinders |
4 |
|
Bore× stroke(mm) |
95x115 |
|
Intake Method |
Nature |
|
Displacement(L) |
3.26 |
|
Fuel consumption(g/kw. h) |
242 |
|
Cooling starting method |
water cooled |
|
Engine manufacturer |
WEICHAI |
|
Model |
184F |
|
Alternator manufacturer |
Wuxi Dingol power co, . ltd. |
|
Rated power(kW/kVA) |
22/25 |
|
Rated currency(A) |
36.1 |
|
Rated voltage(V) |
230/400, 240/415 or other |
|
Power factor(coso) |
0.8(Lagging) |
|
Phase / Rotary speed |
3-phase, 1500rpm |
|
Excitation |
Self- exciting, |
|
Voltage regulation |
AVR, Automatic |
|
Net weight(Silent type)(kg) |
840 |
|
size(silent type)L× W× H(mm) |
2200× 950× 1350 |
