We manufacture solar modules:
*Mono solar panel from 10W to 300W
*Poly solar panel from 5W to 380W
*High quality EVA PET encapsulation
*Aluminium alloy and IP65 Rate
*5 years warranty and 25 years life span
Features:
1. High conversion efficiency based on leading innovative photovoltaic technologies;
2. High stabillity with guaranteed+/-3%power output tolerance, ensuring return on investment;
3. Beautiful appearance;
4. Sealed with high transparency low iron tempered glass, anti-aging EVA, high insulation TPT, with the anodizing (or plating finish);
5. Withstands high wind-pressure and snow load;
6. Easy to install.
Quality and Safety:
1.25-year power output warranty with China Pacific Property Insurance Co., Ltd;
2. Rigorous quality control meeting the highest international standards;
3. ISO9001: 2008(Quality Management System)certified factories manufacturing world-class products;
4. Products meet international standards and through professional testing and certification authority (SGS, UL, CE, TUV).
Recommended Applications:
1. On-grid utility systems;
2. On-grid commercial systems;
3. Off-grid ground mounted systems;
4. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photovoltaic power plants and other fields.

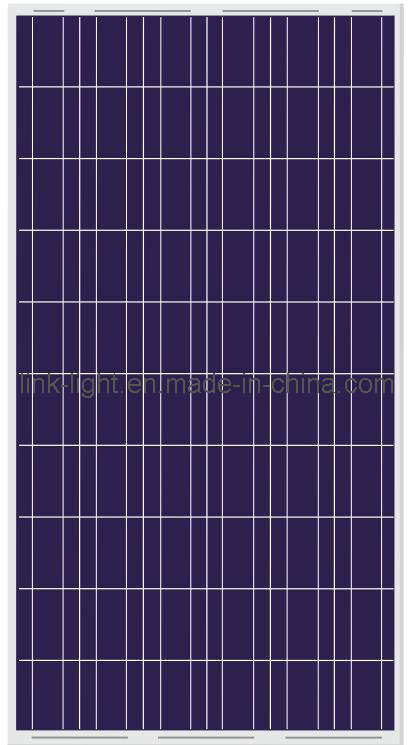

YHM series solar modules are made of high efficiency import (or home)monocrystalline(or polycrystalline)solar cells in series or in parallel, high transmission rate and low iron tempered glass, anti-aging EVA and high flam resistant \high insulation TPT by hot lamination, with anodized aluminum alloy frame. Products have high efficiency, long life, electric performance decay small, high resistance against wind pressure and hail impact, easy installation etc advantages.
Products are made according to international standard and have passed authority test center's examination certificate(SGS\IEC\CE\TUV), Our products can be used in solar lighting, solar lamps, home Solar power supply systems, traffic, communication, meteorological, solar buding and Pvstations etc widely.
|
Maximum Power(W) |
230 |
235 |
240 |
|
Optimum Power Voltage(Vmp) |
28.9 |
29.1 |
29.4 |
|
Optimum Operatige Current(Imp) |
7.96 |
8.08 |
8.17 |
|
Open Circuit Voltage(Voc) |
36.7 |
37.0 |
37.3 |
|
Short Circuit Current(Isc) |
8.55 |
8.60 |
8.65 |
|
Solar Cell: |
156*156 Polycrystalline silicon |
|
Number of Cell(pcs) |
6*10 |
|
Brand Name of Solar Cells |
Motech |
|
Size of Module(mm) |
1640*990*50 |
|
Caple & Connector Type |
Pass the TUV Certificate |
|
Frame(Material Corners, etc. ) |
Aluminium-alloy |
|
Rear cover |
Dupunt Tedlar+PET Film Dupunt Tedlar(TPT) |
|
Front glass |
3.2mm tempered glass |
|
Weight Per Piece(KG) |
20 |
|
Encapsulation material |
Ethylene Vinyl Acetate(EVA) |
|
Junction Box(protection degree/number of diodes) |
IP65 rated/3pcs |
|
Tolerance Wattage(e. g. +/-5%) |
± 5% |
|
Front Glass Thikness(mm) |
3.2 |
|
Temperature Coefficients of Isc(%) |
+0.037 |
|
Temperature Coefficients of Voc(%) |
-0.33 |
|
Temperature Coefficients of Pm(%) |
-0.46 |
|
Temperature Coefficients of Im(%) |
+0.04 |
|
Temperature Coefficients of Vm(%) |
-0.38 |
|
Temperature Range |
-40° C to +85° C |
|
Surface Maximum Load Capacity |
2400Pa/5400K |
|
Allowable Hail Load |
23m/s, 7.53g |
|
Bypass Diode Rating(A) |
12 |
|
Warranty |
90% of 10 years, 80% of 25 years. |
|
Standard Test Conditions |
AM1.5 1000W/m2 25 +/-2° C |
|
Packing |
|
|
1*20’ |
202pcs |
|
1*40’ STD |
504pcs |
Dongguan Link Light Solar Energy Science & Tech Co., Ltd. is specialized in producing and selling solar panels, solar street lights, solar electricity generating systems and other PV products.
1. Solar Panels: 0.1W-300W Mono/Poly crystalline solar panels/solar modules are suitable for solar lawn lights/ crafts / toys, solar wall lights, solar yard lights, solar street lights, solar traffic lights, solar home systems and solar power stations.
2. Solar Street Lights: We can provide OEM service according to your local condition. We also design solar street light systems for you according to your location.
3. Solar Power Systems: We can provide OEM service according to your local condition. We also design solar home systems for you according to your special requirements.
In 2006, we passed SGS and RoHS certificates and established good business relationships with some international lighting factories, solar toy factories, solar street light factories and solar power system factories.
In 2007, our annual production capacity reached 50 Megawatt, and our products were very hot in Taiwan area, Africa, the Middle East, USA and Germany. In 2009, we established good business relationships with domestic and overseas lighting and PV product companies. Our products are now well-known around the world.
In the early of this year, we passed CE and ISO9001: 2008 certificates. Now we are the solar panel supplier of Honeywell (America).
In the near future, we will engage ourselves to be the largest solar panel supplier in the South China.
