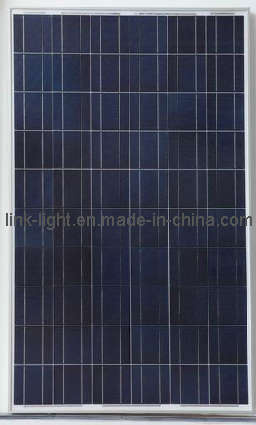

230W Solar Panel
30V Solar Panel
Polycrystalline Solar Panel
1. High efficient Solar cells.
2. OEM, ODM acceptable.
3. Suitable for Solar power station.
(Model): YHM230-30P
Pm (W): 230
Vmp(V): 28.9
Imp(A): 7.96
Voc(V): 36.7
Isc(A): 8.55
Size(mm): 1640*990*50
Operating T.: -40~80
Weight (kg): 20
Features:
1. High conversion efficiency based on leading innovative photovoltaic technologies;
2. High stabillity with guaranteed+/-3%power output tolerance, ensuring return on investment;
3. Beautiful appearance;
4. Sealed with high transparency low iron tempered glass, anti-aging EVA, high insulation TPT, with the anodizing (or plating finish);
5. Withstands high wind-pressure and snow load;
6. Easy to install.
Quality and Safety:
1.25-year power output warranty with China Pacific Property Insurance Co., Ltd;
2. Rigorous quality control meeting the highest international standards;
3. ISO9001: 2008(Quality Management System)certified factories manufacturing world-class products;
4. Products meet international standards and through professional testing and certification authority (SGS, UL, CE, TUV).
Recommended Applications:
1. On-grid utility systems;
2. On-grid commercial systems;
3. Off-grid ground mounted systems;
4. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photovoltaic power plants and other fields.
Maximum Power(W) |
230 |
235 |
240 |
Optimum Power Voltage(Vmp) |
28.9 |
29.1 |
29.4 |
Optimum Operatige Current(Imp) |
7.96 |
8.08 |
8.17 |
Open Circuit Voltage(Voc) |
36.7 |
37.0 |
37.3 |
Short Circuit Current(Isc) |
8.55 |
8.60 |
8.65 |
Solar Cell: |
156*156 Polycrystalline silicon |
Number of Cell(pcs) |
6*10 |
Brand Name of Solar Cells |
Motech |
Size of Module(mm) |
1640*990*50 |
Caple & Connector Type |
Pass the TUV Certificate |
Frame(Material Corners, etc. ) |
Aluminium-alloy |
Rear cover |
Dupunt Tedlar+PET Film Dupunt Tedlar(TPT) |
Front glass |
3.2mm tempered glass |
Weight Per Piece(KG) |
20 |
Encapsulation material |
Ethylene Vinyl Acetate(EVA) |
Junction Box(protection degree/number of diodes) |
IP65 rated/3pcs |
Tolerance Wattage(e. g. +/-5%) |
± 5% |
Front Glass Thikness(mm) |
3.2 |
Temperature Coefficients of Isc(%) |
+0.037 |
Temperature Coefficients of Voc(%) |
-0.33 |
Temperature Coefficients of Pm(%) |
-0.46 |
Temperature Coefficients of Im(%) |
+0.04 |
Temperature Coefficients of Vm(%) |
-0.38 |
Temperature Range |
-40° C to +85° C |
Surface Maximum Load Capacity |
2400Pa/5400K |
Allowable Hail Load |
23m/s, 7.53g |
Bypass Diode Rating(A) |
12 |
Warranty |
90% of 10 years, 80% of 25 years. |
Standard Test Conditions |
AM1.5 1000W/m2 25 +/-2° C |
Packing |
|
1*20' |
202pcs |
1*40' STD |
504pcs |
