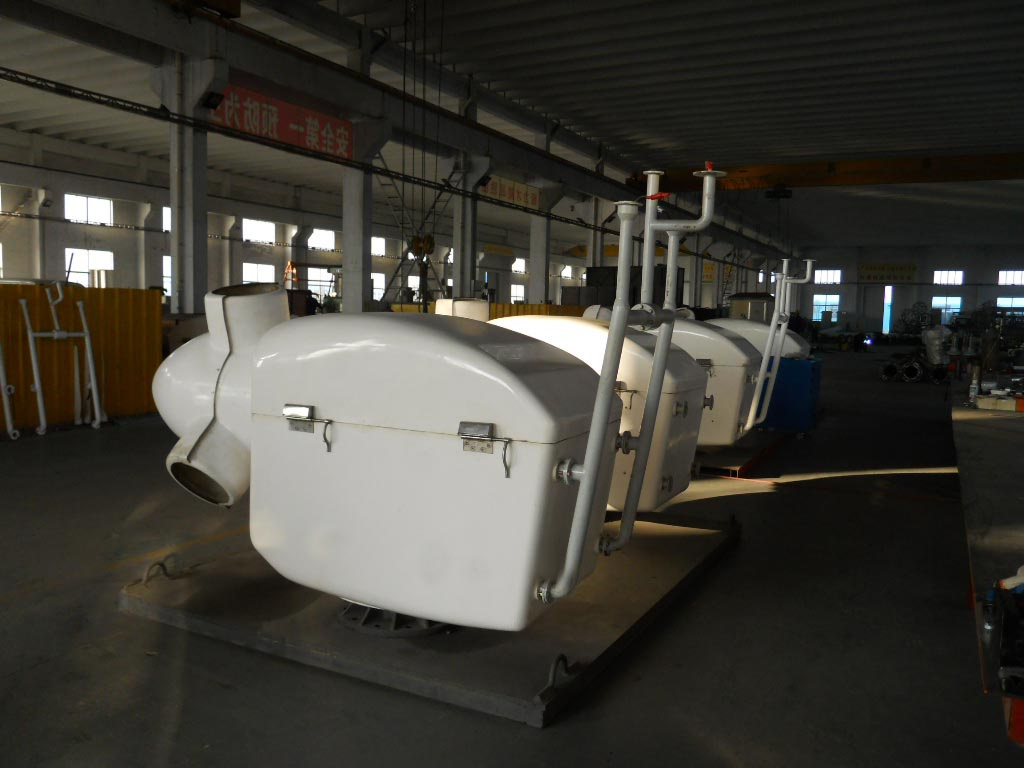

20kw Wind Turbine Generator System

20KW Wind Turbine generator system.

This wind turbine with pitch control systems, with CE /ISO certification

Introduction:

MSFD_20KW technical parameter
Rated power(W): 20000
Blades material: FRP/3
Rated wind speed(m/s): 10
Speed regulation: Variable pitch & brake system
Startup wind speed(m/s): 2
Generator type: Three-phase AC PM
Working speed(m/s): 2.5~25
Tower height (m): 15M(optional)
Survival wind(m/s): 45
Shut down method: Hand/Electric winch
Rated rpm(r/min): 150
Turbine main body weight (kg): 800
Blade diameter (m): 10
Working voltage (v): DC120V/600V
Power supply method: Three-phase whole-wave bridge rectifier constant DC charger
Battery bank(Optional): [12V. 200AH]× 30.


20kW wind turbine generator system:

1. Product features:

1) SCF Supercritical generator
Hummer's wind generator adopts SCF supercritical technology which won a gold award in the 37th Salon Eureka in Brussels. This technology significantly reduces generator's weight and size down to 25% to 30% of the traditional one, and the production efficiency is 25% to 30% higher. This ensures that the generator functions perfectly in small wind condition.

2) SKF bearings
Hummer wind turbine adopts two SKF (Svenska Kullager Fabriken) bearings which are produced by the largest bearing manufacturer in the world, with the perfect internal geometric structure, known for its life-time endurance and reliable quality. Ordinary bearings need to be changed every two or three years, while SKF bearings can greatly reduce the maintenance costs on this matter.

3)PLC integrated with Siemens module
Hummer wind turbine's controlling system adopts the smart touch-screen PLC (Programmable Logic Controller) which is integrated with Siemens controlling unit. The PLC will alarm and adjust the abnormal running status of the wind turbine automatically both timely and efficiently. Siemens module offers high reliability to our PLC and its customers worldwide can testify for that.

4)Low noise
The design of the rotor blade of Hummer wind turbine absorbs the highlights of the small aircraft's airfoil, which is compliance with the aerodynamic standards. It provides a more aesthetic look and a higher efficiency and reduces the noise production as much as possible.

2. Application area:

1) Housing, office, farm and factory;
2) Telecommunications Station
3) TV Transfer Station;
4) Monitoring Station (military, hydrology, observatory)
5) Water-pumping Station;

3. Company strong strength:

1)High Technology--Won gold award of 37th World Invention Exposition in Brussels Eureka WITH 7 Patents;
2)High Quality--CE, ISO Certificate;
3)Hight Service--Long time warranty with Unique Service department.
