Advantage:

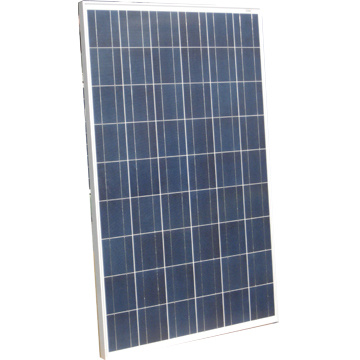

Solar module
Solar efficiency 16% & excellent character
CE, TUV, IEC certificate
Limited warranty 25 yrs
Reasonable price
Solar module
1. With advanced materials and equipments, our modules are designed and manufactured in consistency with the IEC 61215: 1993 standards which can guarantee excellent electrical performance and the product life span of 25 years.
2. A film of PECVD is coated on the upper surface as antireflection measure which the characteristic of deep blue color.
3. The modules are embedded with a sheet of imported strong transparent glass, two sheets of long endurance EVA, a high efficiency poly-crystalline cells sheet and a sheet of antihumidity TPT for different weather conditions.
4. High quality anodized aluminum frame which is the choice for strong wind resistance and mountain terrain.
5. A multifunction box can safeguard safe connection.
6. The exterior design and electrical performance of each every module are fully tasted to guarantee superior quality
|
Description of Specification |
Units |
Model |
|
NES54-6-205P |
|
General Data |
|
Nominal Power |
W |
205 |
|
Application |
|
DC 18V System |
|
Surface Maximum Load Capacity |
kg/m 2 |
200 |
|
Storage & Operating Temperature |
Deg C |
-40 to +80 |
|
Standard Test Conditions |
|
1000W/M² , 1.5AM, 25 |
|
Dimensions(L*W*H) |
mm |
1482*992*40 |
|
Weight |
kg |
16.8 |
|
Solar Cell |
|
Cell Type |
|
Poly |
|
Wafer Diameter |
mm 2 |
156*156 |
|
Number of Cells |
|
54(6*9) |
|
Maximum Power |
W |
200 |
|
Watt Tolerance |
% |
+/-3 |
|
Voltage & Ampereage |
|
Maximum System Voltage |
Volts |
1000 |
|
Maximum Operating Voltage(Vmp) |
Volts |
26.3 |
|
Maximum Operating Current(Imp) |
Amps |
7.56 |
|
Open Circuit Voltage(Voc) |
Volts |
33.6 |
|
Short Circuit Current(Isc) |
Amps |
8.21 |
|
Operational Temperatures |
|
Temp Coefficent of Isc(TK Isc) |
% per deg. C |
+0.05 |
|
Temp Coefficent of Voc(TK Voc) |
% per deg. C |
-0.34 |
|
Temp Coefficent of Pmax(TK Pmax) |
% per deg. C |
-0.45 |
|
Normal Op. Cell Temp (NOCT) |
deg. C |
45± 2 |
|
Materials & Accessories Data (All Certified by CE and TUV) |
|
Cable |
Connerctors |
|
IP65 |
|
Length |
M |
0.9 |
|
Wire Diameter |
mm 2 |
4 |
|
Frame |
|
Aluminum Anodzed |
|
Glass |
Thickness |
mm |
3.2 |
|
Low lron, High Transmisson, Toughness |
|
YES |
|
EVA resin |
mm |
0.5 |
|
Backsheet(TPT) |
mm |
0.3 |
Warranty
(Output) |
10 years |
% |
90 |
|
20 - 25 years |
% |
80 |
|
Whols Panel |
Years |
5 |
No. 36 Research Institute of CETC is A FIRST CLASS Scientific Research Institute engaged in Technical Research & Equipment Development in the fields of Communication & Specialized communication. Specialized Fields comprises of broadly as Signal processing, RF Power, Antennas, Software & Computer Application, Wired & Wireless Communication, Chip Board Electronics, Solar Panel & Systems, Solar Applications & Configuration, etc. Our R & D Center is rated as a 1st Class Center in China, with considerations towards Green Energy, Environment Protection coupled with most Advanced Scientific Equipments to assist our Research Facilities, Design & Development Methods. Our Testing Equipments & Machinery are from high quality manufacturers from around the world and also from within China. We also have the largest setup for the lowest frequency Anechoic Chamber in China. Our Computer Aided Design Center (CAD), Simulation Laboratory, Testing Centre, Precision Component Manufacturing Center are considered the best in the industry.
New Energy Sector is the primary division of No. 36 Research Institute, which specializes in Design, Development, Manufacture, and Distribution of High Quality Solar Modules & Solar Application System and offers Technology Services. The products include High Efficiency Mono Crystalline & Polycrystalline Solar Panel ranging between 10 Watts & 300 Watts; Solar Power Generation Systems for Home & Commercial establishments for use with different appliances; Solar Off Network / Grid connected Power Generation Systems and customized products tailor made to specific requirements. The New Energy Sector is equiped with advanced testing and manufacturing devices to cater with and excellent product line. We are capable of conducting a thorough Analysis & Evaluation of Raw Materials, Performance & Finished Products. Our products have been Certified by bodies such as: TUV, CGC, and CE.
