2015 Hot Sell Thailand and Vietnam 20-600kw Biomass Gas Generator Set for Household and Animal Waste Crop for Power Station

Specifications

1.Supply power from 10KW to 1000KW
2. Advanced Control Panel
3. Water-cooled engine
4. Service OEM Offer

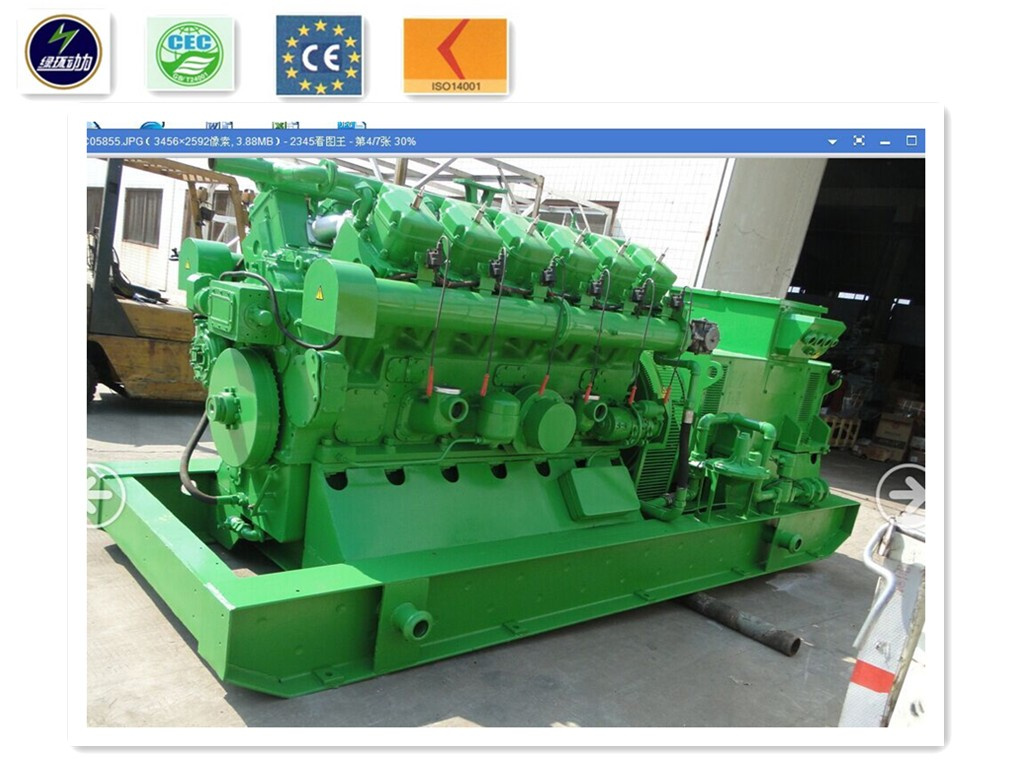

Lvhuan gas genset is a new green environmental product which meets demands of world environment protection and market.

With domestic advanced technology, our genset possesses features of speedy start, easy to operate, complete models, etc.

a. Biomass exists in various forms, like wood, crop( straws of rice, wheat, bean, cotton, husk,etc), weeds, algae, etc, in the plants. Others like animal wastes spoil and the organic exist in waste water and rubbish etc.

Now there are mainly three ways to generate power with biomass: gasify generating, burning generating, CHP technology. In China, we are rich in the resources of biomass, but lack in the power supply. So our country can supply a vast stage to show the advantage and economy to generate power with biomass.

Shandong Lvhuan Power Equipment Co.,Ltd is a pioneer and practitioner in green energy and renewable resources.

 b. Biomass is biological material derived from living, or recently living organisms. It most often refers to plants or plant-based materials which are specifically called lignocellulosic biomass. As an energy source, biomass can be used directly via combustion to produce heat. It is a renewable energy source, For the use of the term in ecology.

Shandong Lvhuan Power Equipment Co.,Ltd is a pioneer and practitioner in green energy and renewable resources.

 Main composition of biomass gas:

After being gasified, the basis of gas is CO(20%), H₂(9%), CH₄(12%),CO₂(12%), N₂(52%), The lower heating value is 5-6 MJ/Nm³.

Efficiency of gasification:1 kg dried material can generate 2 Nm³ gas, conversation rate is more than 85%. 1 kg dry material can generate 1 kw.h power.

Requirements for biomass gas:

Within 1m from pressure regulating value of gas intake;

Gas temperature<40ºC

The ratio of CH₄ in natural gas >70%;

Pressure of natural gas: 3--10 kpa, rate of pressure change <1 kpa/min;

H₂S≤200mg/Nm³;

NH3≤20mg/Nm³;

Tar content≤20mg/ Nm³;

Moisture content ≤40g/Nm³;

Impurity particle size ≤5µm, impurity content ≤30 mg/Nm³

Heat value≥4.2MJ/Nm³

Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.

Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.

Pressure charging system:Pulse Mixed-flow  supercharger, compression  ration is  1:8,meet engine's  requirement   for gas-flow rate.

Speed regulating system:EGS gas controller of American WOODWARD Company.

scope of application:Biogas generator set is widely used in the many area where can generate biogas,like rubbish landfill,livestock excrement disposal,industrial organism disposal.

our factory

our certification
