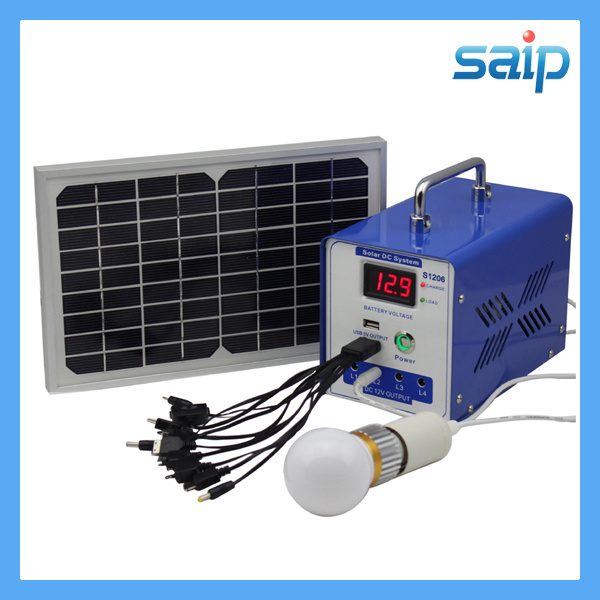

2014 Household Portable Mini Solar DC Generator (S1207)
Features:
1. Energy saving, environmental -friendly
2. Long life service
3. Low maintanence
4. CE&RoHS
Brief descriptions:
We adopt the PV generating technology to develop and the product has the features of no pollution, no noise and maintenance-free. The system can provide the functions of lighting and mobile charging.
1. Avoid using the machine under such conditions as having flammable or explosive or erosive gas and too hot places.
2. This system equips with solar panel and battery. Under the condition of fully charged, it can supply power for 2pcs 3W LED lights and charge the mobile.
|
Solar DC generator |
|
Model |
S1206H |
|
Battery Capacity |
5AH |
|
Rated Charging Current |
1A |
Rated Discharge Current |
2A |
|
Rated Working Voltage |
12V |
Solar Panel Voltage |
≤25V |
|
Floating Charge Voltage |
14V |
No-load Loss |
≤8mA |
|
Low voltage Disconnect Point |
10.5V |
Low Voltage Reconnect Point |
11.5V |
|
USB Port Current |
≤500mA |
Storage Temperature |
-15~40 Centigrade |
|
Working Temperature |
-10~50 Centigrade |
Humidity Requirement |
≤90% No Condensation |
|
Dimension |
200x120x140mm |
|
|
|
Model |
S1207H |
|
Battery Capacity |
7AH |
|
Rated Charging Current |
2A |
Rated Discharge Current |
2A |
|
Rated Working Voltage |
12V |
Solar Panel Voltage |
≤25V |
|
Floating Charge Voltage |
14V |
No-load Loss |
≤8mA |
|
Low voltage Disconnect Point |
10.5V |
Low Voltage Reconnect Point |
11.5V |
|
USB Port Current |
≤500mA |
Storage Temperature |
-15~40 Centigrade |
|
Working Temperature |
-10~50 Centigrade |
Humidity Requirement |
≤90% No Condensation |
|
Dimension |
200x120x140mm |
|
|
|
Model |
S1212H |
|
Battery Capacity |
12AH |
|
Rated Charging Current |
2A |
Rated Discharge Current |
2A |
|
Rated Working Voltage |
12V |
Solar Panel Voltage |
≤25V |
|
Floating Charge Voltage |
14V |
No-load Loss |
≤8mA |
|
Low voltage Disconnect Point |
10.5V |
Low Voltage Reconnect Point |
11.5V |
|
USB Port Current |
≤500mA |
Storage Temperature |
-15~40 Centigrade |
|
Working Temperature |
-10~50 Centigrade |
Humidity Requirement |
≤90% No Condensation |
|
Dimension |
200x120x140mm |
|
|
|
Model |
S1217H |
|
Battery Capacity |
17AH |
|
Rated Charging Current |
2A |
Rated Discharge Current |
2A |
|
Rated Working Voltage |
12V |
Solar Panel Voltage |
≤25V |
|
Floating Charge Voltage |
14V |
No-load Loss |
≤8mA |
|
Low voltage Disconnect Point |
10.5V |
Low Voltage Reconnect Point |
11.5V |
|
USB Port Current |
≤500mA |
Storage Temperature |
-15~40 Centigrade |
|
Working Temperature |
-10~50 Centigrade |
Humidity Requirement |
≤90% No Condensation |
|
Dimension |
250x153x206mm |
|
|
|
Model |
S1224H |
|
Battery Capacity |
24AH |
|
Rated Charging Current |
2A |
Rated Discharge Current |
2A |
|
Rated Working Voltage |
12V |
Solar Panel Voltage |
≤25V |
|
Floating Charge Voltage |
14V |
No-load Loss |
≤8mA |
|
Low voltage Disconnect Point |
10.5V |
Low Voltage Reconnect Point |
11.5V |
|
USB Port Current |
≤500mA |
Storage Temperature |
-15~40 Centigrade |
|
Working Temperature |
-10~50 Centigrade |
Humidity Requirement |
≤90% No Condensation |
|
Dimension |
250x153x206mm |
