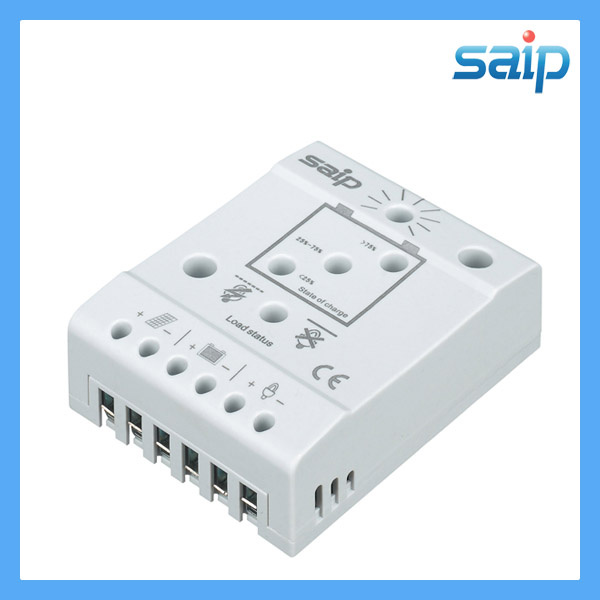

2014 Hot Solar Charger Controller (SML 10)
1,12V/24V,automatic recognition
2, CE,ROSH
3,PWM Solar Charge Controller
1. Brief Introduction
The？ SML？ series？ is？ a？ sophisticated？ solar？ charge？ controller？ family？ for？ low？ cost？ appl ications.The electronic circui t is equipped with a microcontrol ler that provides？high-efficiency charging？ technology？ together with a number of outstanding status display, warning and safety functions .
2. Features
1.Battery State-of-Charge display with 3 LEDs.
2.Acoustic load disconnect pre-warning.
3.PWM-regulation (series type).
4.Boost, Equal ize and Float charging, also for VRLA.
5.Automatic 12/24 Volt detection.
6.Integrated temperature compensation.
7.Large terminals (up to 16mm2 wire size).
8.SOC and voltage control led LVD.
9.Fully electronical ly protected.
3. Product Show
4. ABOUT？ US
？
SAIPWELL, as a professional manufacturer and supplier, is specialized in developing, producing？ electric equipments fitting all over the world. Our goal is to BUILD BEATIFIC？ PRODUCT
？
Please kindly contact with us freely. High quality,reasonable price,best service is offered to you.
？
Saip as always inherits "high quality and sincere service".
Saip - your successful cooperative partner!
|
Model |
SML05 |
SML08 |
SML10 |
SML15 |
SML20 |
SML25 |
|
Nominalvoltage: |
12/24V automatic recognition |
|
Max. module current |
5A |
8A |
10A |
15A |
20A |
25A |
|
Max. load current |
5A |
8A |
10A |
15A |
20A |
25A |
|
Boost voltage |
14.5V/29.0V |
|
Equalization voltage |
14.8V/29.6V |
|
Equal ization voltage |
13.7/27.4V |
|
Deep discharge protection |
11.4-11.9V/22.8-23.8V control led by statc of charge 11.0/22.0V control led by voltage |
|
Load reconnect voltag |
12.8/25.6V |
|
Temperature compensation |
-4mV/cel l*K |
|
Self consumption |
<4mA |
|
Max. wire size |
16mm ²(AWG#6) |
|
Dimensions(W×H×D) |
80*100*32mm(w*h*d) |
|
Weight |
220g |
|
Temperature range |
-20to+50°C |
|
Type of protection |
IP22 |
Yueqing Saibang Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces new source products, including Solar Generator, Solar charge controller, Wind Generator, Solar Inverter, Solar tracking systems and so on.
