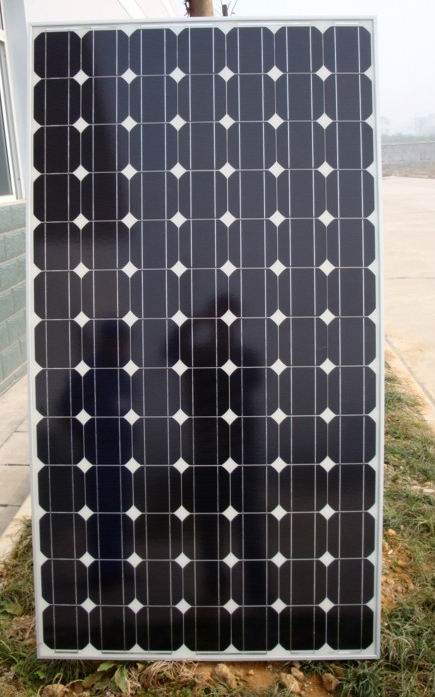

200W Solar Panels (Model: BR-M200W)
Product Name: 200Watts Solar Panel
Model Number: BRM200W 1580*1068 (8*12=96 Cells)
Standard: TUV, IEC61215, CE & EN
Place of Origin: Jiangsu of China
Solar cell spec: 125*125 Monocrystalline silicon solar cells
Specifications: PV mbdule with 200W maximum power
Max. System voltage: 1000V DC
Power tolerance: 0%-3%
Surface max. Load capacity: 70m/S(200KG/sq. M)
Weight: 23.5KG
Dimensions: 1580mm*1068mm*50mm
Electrical characteristics:
Open circuit voltage(V): 50.3V
Short circuit current(A): 5.20A
Max. Power voltage(V): 44.8V
Max. Power current(A): 4.47A
Module efficiency(%): ≥ 15.0%
FF(%): 73.3%
Conditions (STD):
Irradiance: 1000W/M2
Temperature: 25° C
Yangzhou Bright Solar Solutions Co., Ltd., Established in 1997, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP, CCPIT, SASO and CCC approved manufacturer.
Overseas Exploration and Popularity:
We had successfully sold our solar street lights and solar panels to overseas markets more than 50 Countries such as the USA, Canada, UK, Greece, France, Italy, Australia, Turkey, Jordan, Saudi Arabia, Iraq, UAE, India, Philippines, Pakistan, Cambodia, Taiwan, Nigeria, Ghana, Congo, South Africa, Mexico, Haiti, etc.
For the Future:
With advanced manufacturing & testing equipments, our factories are growing better and better. We hope to cooperate with more partners and distributors to develop more business to create prosperous win-win partnerships. OEM is available. Welcome your inquiry mail or call.
Main Products:
Solar Street Lights & Solar Street Lighting & LED Solar Street Lighting;
Solar Garden Lights & Solar Landscape Lights;
Solar Panel & Solar Modules.
Small Solar Home System & Solar Home Kits.
Attention: We are good at
1: Designing, producing, installing solar 10W-120W Solar LED street lights
2: Designing, producing 10W-240W LED Lamp for outdoor street and road using.
3: Producing solar panel below 310W
4. Solar Battery 7Ah-300Ah/12V
5. Solar Home Kits 3W-5000W System
OEM Service for solar lighting and PV panel is available.
Welcome your inquiry of solar outdoor lights and solar home lights.
