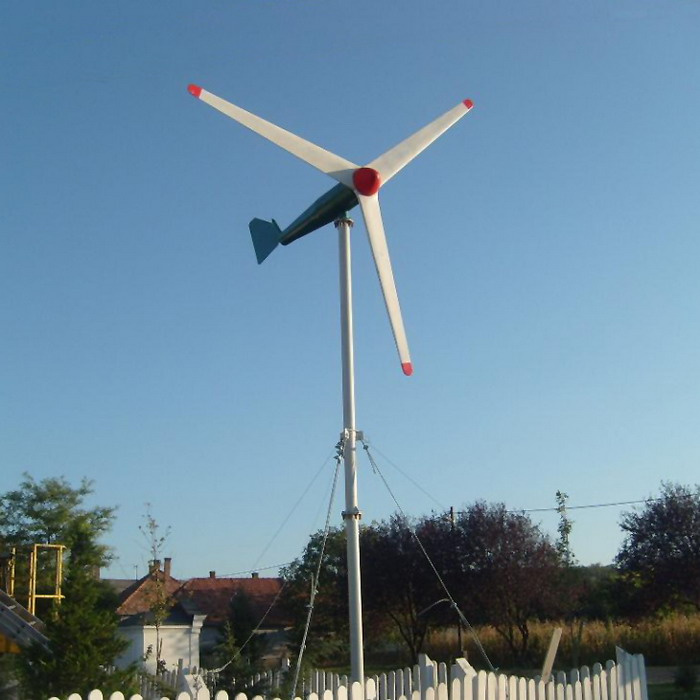

FD2.2-200W
Type of generator: Permanent magnet wind turbine
Blade diameter: 2.5 m
Blade material: Fiber glass reinforced
Rated wind speed: 8m/s
Rated output power: 200W
Max power: 350W
Output voltage)24V
Start up wind speed: 3(m/s
Work wind speed: 3-25m/s
Security wind speed: 40m/s
Tower type: 60mm60mm pull wire tubular tower
High of tower 6.0m
Top section weight: 27 kgs
Output controller system: Controller & inverter
Service life: 20 years
Can supply power for: Lighting, electric fan and charging
FD2.6-300W
Type of generator: Permanent magnet wind generator
Blade diameter: 2.6m
Blade material: Fiber glass reinforced
Rated wind speed: 8m/s
Rated output power: 300W
Max output power: 450W
Output voltage: 24V
Start up wind speed: 3m/s
Work wind speed: 3-25m/s
Security wind speed: 40m/s
Tower type: 60mm60mm pull wire tubular tower
High of tower 6.0
Top section weight: 30kg
Output controller system: Controller and inverter
Service life: 20years
Can supply power for: Small TV, lighting, electric fan and charging.
item |
description |
unit pritce(USD) |
(quantity) |
amountUSD |
remark |
| Wind generator | FD2.2-200w | 81 | 1 | 81 | generator |
| Blades | 2.2mreinforced FPR | 37 | 1 | 37 | (blade)(wheel hub & press board)(dome) |
| Controller& inverter | DC24V→user’s local voltage & frequency | 88 | 1 | 88 | Controller inverter |
| Guy cable tower | Height 6m hot-dip galvanized | 44 | 1 | 44 | Guy cable tower |
| Total amount(USD) | | 250 | |
| FOB QINGDAO | | USD279.00 | |
| Delivery Time: | Within 7 days | | |
REMARK | 1Payment terms100%T/T payment prepaid.
2. package:plywood cases
3. the above quotation not contain battery
If need batteries,the price is USD132.00,including 12v,100ah,2pcs batteries. |
| ITEM | Packing No. | N.W KGS | G.W KGS | L (CM) | W (CM) | H (CM) | Volume M3 | INNER GOODS |
| 0.2kw | 1 | 55 | 70 | 113 | 51 | 32 | 0.1844 | windgenerator group |
| 3 | 30 | 30 | 200 | 6 | 6 | 0.0216 | guy mast tower |
| total | 4 | 85 | 100 | | 0.2060 | |
| | | | | | | | | | | | | | |
We specialize in this field for several years, with the strength of wind turbines, with good quality and pretty competitive price. SHANDONG JIALI NEW ENERGY Co., Ltd founded in 1994, specialized in manufacturing wind turbines, the main products are 200W, 300W, 600W, 1KW, 2KW, 3KW, 5KW, 10KW, 20KW, 30KW, 50KW and 100KW wind turbines and small solar panels, wind solar hybrid systems. Products are exported to the United States, Germany, Britain, France, Pakistan, Indonesia, Mongolia, has a customers high praise.
