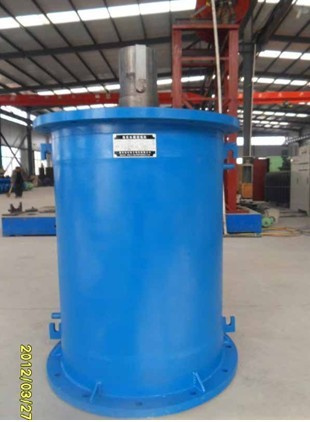

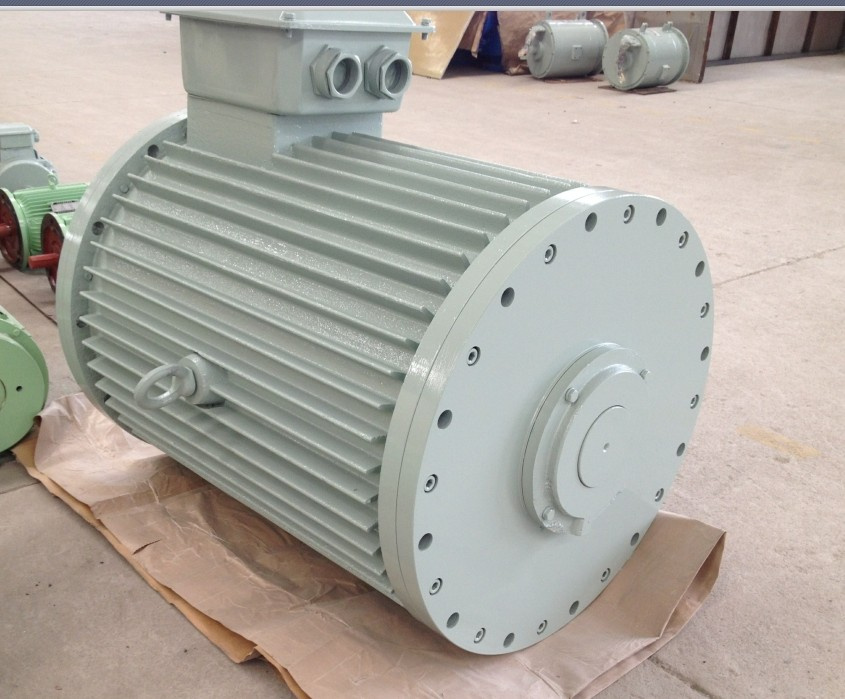

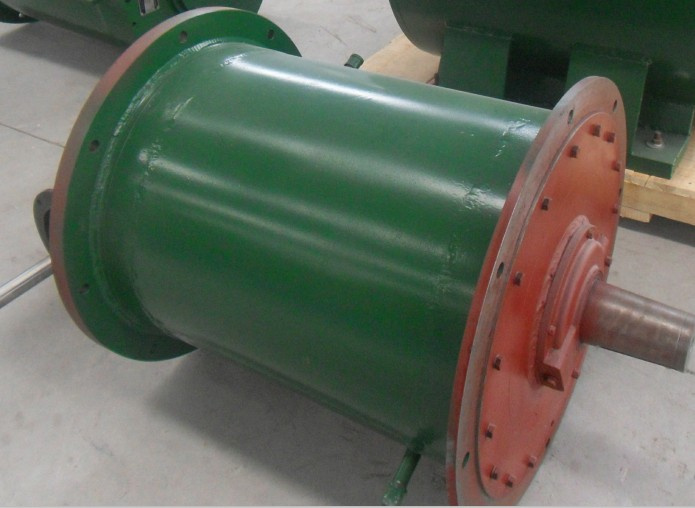

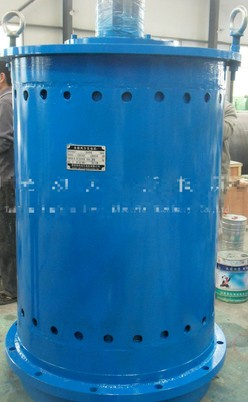

We offer various kinds of permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), please contact us for more detail informations.
Features of permanent magnet generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetime
| 500 |
|
|
|
|
|
|
|
|
|
| Power(KW) | AC voltage(V) | speed(RPM) | poles | frequency | Rated torque(NM) | Start torque(NM) | current(A) | efficiency | weight |
| 350 | 400 | 142.9 | 42 | 50 | 23390.5 | 467.8 | 543.2 | 93.80% | 5200 |
| 500 | 220 | 171.5 | 21 | 60 | 27842.6 | 556.9 | 1411.0 | 93.80% | 5200 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Power(KW) | AC voltage(V) | speed(RPM) | Rated torque(NM) | Start torque(NM) | current(A) | efficiency | weight |
|
|
| 150 | 220 | 60 | 23875.0 | 477.5 | 423.3 | 93.80% | 5200 |
|
|
| 200 | 400 | 60 | 31833.3 | 636.7 | 310.4 | 93.80% | 5800 |
|
|
| 220 | 400 | 100 | 21010.0 | 420.2 | 341.5 | 93.80% | 5200 |
|
|
| 260 | 400 | 100 | 24830.0 | 496.6 | 403.5 | 93.80% | 5800 |
|
|
| 400 | 400 | 150 | 25466.7 | 509.3 | 620.8 | 93.80% | 5200 |
|
|
| 500 | 400 | 150 | 31833.3 | 636.7 | 776.0 | 93.80% | 5800 |
|
|
| 450 | 400 | 200 | 21487.5 | 429.8 | 698.4 | 93.80% | 5200 |
|
|
| 550 | 400 | 200 | 26262.5 | 525.3 | 853.6 | 93.80% | 5800 |
|
|
| 550 | 400 | 250 | 21010.0 | 420.2 | 853.6 | 93.80% | 5200 |
|
|
| 650 | 400 | 250 | 24830.0 | 496.6 | 1008.8 | 93.80% | 5800 |
|
|
| 750 | 400 | 300 | 23875.0 | 477.5 | 1164.0 | 93.80% | 5200 |
|
|
| 800 | 400 | 350 | 21828.6 | 436.6 | 1241.6 | 93.80% | 5800 |
|
|
| 900 | 400 | 400 | 21487.5 | 429.8 | 1396.9 | 93.80% | 5200 |
|
|
| 950 | 400 | 450 | 20161.1 | 403.2 | 1474.5 | 93.80% | 5800 |
|
|
| 1000 | 400 | 500 | 19100.0 | 382.0 | 1552.1 | 93.80% | 5800 |
|
|
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
