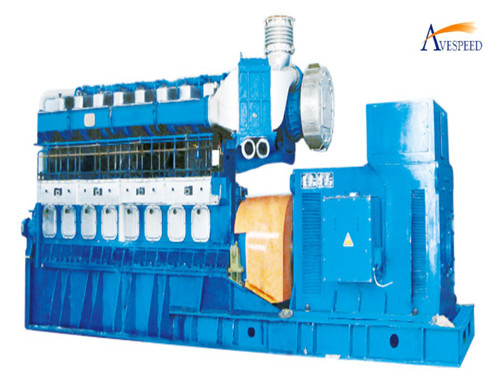

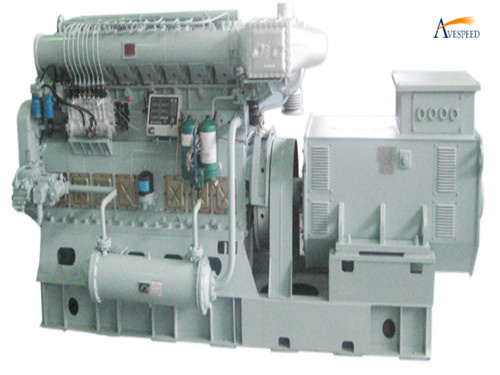

200kw medium speed engine driven marine generator set
Product description:
This type of Marine generator sets/Marine Gensets are suitable for sea areas as draining water ship, tug boat, fishnet ship, freighter and digging-ship etc. As electric power.
Power range of marine generator set is from 5KW to 500KW in our avespeed company, graceful appearance, compact structure, fine performance, high reliability, adopts brand-name engine and TFS-H series marine third-harmonic excitation generator or TFKX-H series compound excitation generator or TFW-H series marine brushless generator per customer's requirements.
In technical data, all data are typical in engine and generator. It also is selected for adopting other engine and generator, may see the data for common generating-set.
Characteristics:
Meet with:ISO8528,IEC60034,ISO3046
Marine medium speed engine driven
Brushless self excited alternator with AVR
Application:Marine gen-set,Stationary gen-set and Containerized gen-set
Easy installation,Low noise,Low operation cost.
Note:All engine rating data based on ISO 3046/1;
Reference conditions: Ambient 25 degree centigrade, Total Barometric Pressure:100kPa,
Relative humidity 30%, Intercooler coolant in:25 degree centigrade ;
Fuel characteristics:Related density: 0.84±0.005,
Lower heat value:42700kj/kg, Consumption tolerance: +5%;
Power: An overload of 10% is permitted for one hour in every twelve hours of operation.

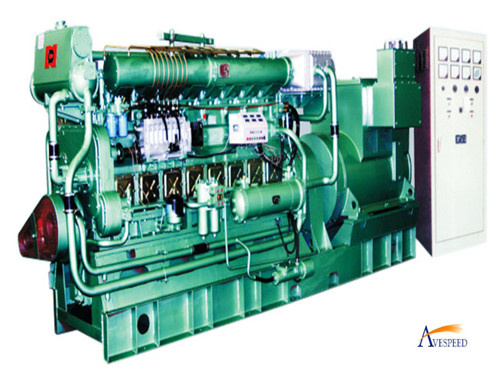

You must also like these marine diesel generators:
Product packages:

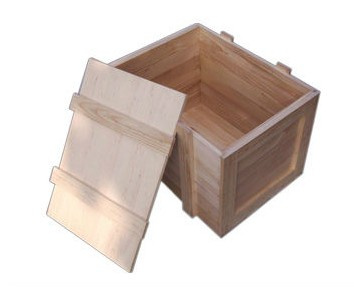

Export wooden case (standard) or Plywood case (Optional)
|
Main Specifications |
|
|
Generator Model |
200GF |
250GF |
300GF |
350GF |
|
|
Rated Output (kW) |
200 |
250 |
300 |
350 |
|
|
Engine Model |
N6160ZLD2A |
N6160ZLD6A |
N8160ZLD2 |
N8160ZLD |
|
|
Bore X Stroke (mm) |
160x200 |
|
|
Engine Type |
4-Stroke, Inline, Direct Injection,Turbocharged, Intercooled |
|
|
Engine Rated Power (kW) |
235 |
294 |
353 |
400 |
|
|
Speed (rpm) |
50Hz@1000 / 60Hz@1200 |
|
|
Fuel Consumption (L/h) |
52.4 |
65.5 |
78.6 |
93.8 |
|
|
Electrical Performance |
|
|
Voltage |
Voltage no-load adjustment range |
% |
95~105 |
|
Voltage fluctuation rate |
% |
±1 |
|
Stable voltage regulating rate |
% |
±2.5 |
|
Transient voltage regulating rate |
% |
±20~-15 |
|
Stabilizing time |
s |
1 |
|
Alternator Excitation method |
|
Brushless AVR |
|
Frequency |
Stable frequency (rev.) regulating rate |
% |
5 |
|
Frequency (rev.) fluctuation rate |
% |
±0.5 |
|
Transient frequency regulating rate |
% |
±10 |
|
Stabilizing time |
s |
<5 |
|
Frequency regulating method |
|
Auto/Manual |
|
Gen-set Dimension (Approx.)(mm) |
3725x1285x1700x548 |
3855x1285x1700x678 |
4499x1268x1980x669 |
4499x1268x1980x669 |
|
Weight(kg) |
5600 |
5700 |
6500 |
6800 |
Beijing Avespeed Commercial & Trading Co., Limited is the leading manufacturer and supplier of diesel engines for marine propulsion, marine Gen-sets, stationery Gen-sets and power plant applications in China. AVESPEED manufactures diesel engines with unit output from 150KW to 4500KW, which can be used as propulsion of merchant vessels and special vessels from 1000 to 30000 tons DWT. AVESPEED manufactures marine auxiliary diesel generators with unit output from 150KW to 4500KW and stationery HFO generators with unit output from 500KW to 8000KW.
AVESPEED designs and builds turn-key power plant with an output up to 100MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel. AVESPEED has been set up more than 200 heavy fuel oil (HFO) power plant projects in the world in recent years, especially in Nigeria, we have set up more than 60 HFO power plant projects there.
All of our marine diesel engines have achieved type approvals and work test approvals of, CCS, China Ships Inspection Bureau, and China Fishing Ships Inspection Bureau. Many products are rated as "National Grade New Products" and "Industry Brand Products" and awarded with "National Prize for Progress in Science and Technology", Now AVESPEED diesel engines are widely used for deep sea fishery, inshore fishing ships, ocean shipping, inland water navigation, passenger cargo ship transport, harbor tug, engineering ships, enforcement ships, naval auxiliaries etc.
New energy products developed in recent years including natural gas generator sets, biomass generator sets, tyre oil/vegetable generator sets and dual-fuel generator sets with unit output from 50KW to 1000KW.
AVESPEED also involves in the development and manufacture of the crystal silicon (mono and poly) solar panel/module, photovoltaic system, and other photovoltaic products. We supply solar panels ranging from 45W to 290W. AVESPEED's on-grid and off-grid inverters are the sole in China certified by TUV. The PV inverters range from 1KW to 1000KW.
Our products and manufacturing processes fully comply with product safety requirements, including TUV/IEC61215 & 61730, CSA/UL1703, MCS, CE and UKAS. Additionally, we have implemented best practices to protect the environment and conserve energy.
So far, our customers spread dozens of countries and regions in Europe, Middle East, Africa, South America, Southeast Asia and West Asia. AVESPEED is willing to cooperate with relevant famous enterprises and far-sighted, strong-willed and talented people at home and abroad by supplying our high-quality products and excellent service.
