Professional generator OEM Factory in Guangzhou
Stock available
Cummins, Yangdong
SGS soncap
50hz@1500rpm or 60HZ@1800rpm all are available
· AVR delivers non fluctuating power
· Panel type digital control panel
· 12 Volt / 24 Volt electric starter ensures easy starting
· Low oil pressure shut down system
· Low fuel cut out protection
· Low water cut out engine protection
· Enclosed structure ensures quieter operation
· Alternator (Dynamo) excitation mode brushless self excitation
· Three-phase output meets differing requirements
· Four stroke, water cooled diesel engine
· 8 hours running @ full load on a single tank of fuel
· Dual access doors for easy maintenance
· Optional automatic or manual transfer switches available
· ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
· Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
· Noise Level (65-70dBA @ 7m)
· All ratings are at sea level

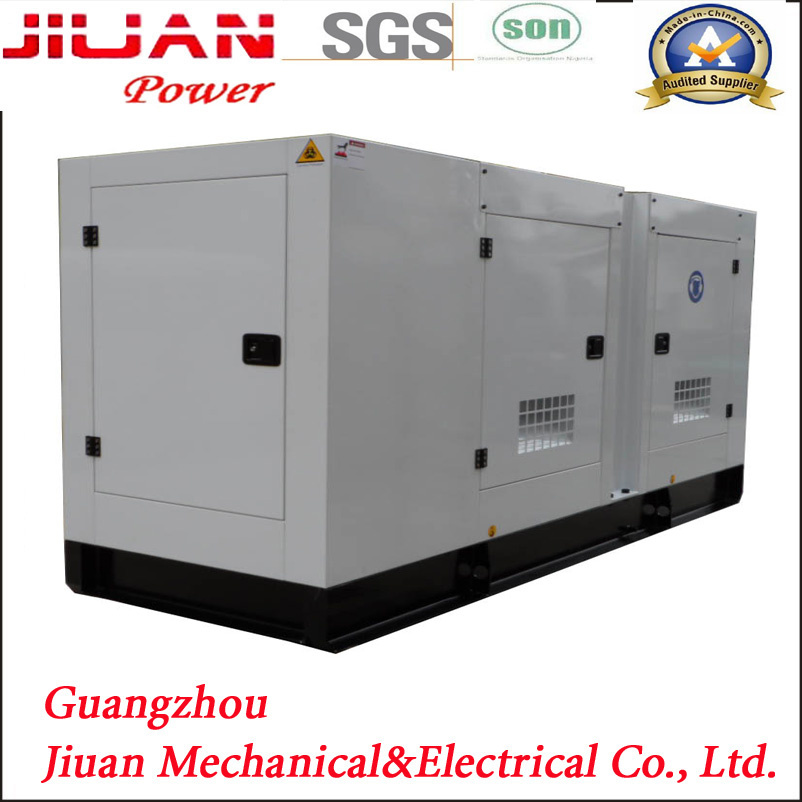

| 200kva Silent generator |
Generator
Specifications | Generator Model | CD160KW/200KVA |
| Generator Prime Power | 160KW/200KVA |
| GeneratorStandby Power | 1176KW/220KVA |
| Generator Alternator | Stamford;Marathon; |
| Canopy for Choice | Silent, super silent |
| Controller | Smartgen |
| Dimensions (L*W*H) | 3100*1300*1600(S) 3500*1300*2800(Super silent) |
| 20FT/40HQFT Container | 2PCS/4PCS |
| Generator Warranty | 1800 hours or 1 year subject to the earlier one. |
| Generator MOQ | 1PCS |
| Certificate | SGS;Cummins Authorized Factory;TUV;Soncap |
| Payment | T/T or Cash |
| Please give detail needs in your inquiry, so that we can make power solutions for you. |
| MODEL | CD-P200KVA |
| Powered by Original Uk Perkins Engine |
| Prime Power (50HZ) | 160KW/200KVA |
| Standby Power (50HZ) | 176kw/220KVA |
| Power Factor | 0.8 (Lagging) |
| Phase Wires | 3-phases 4-Wires |
| Start Model | Electric |
| Protection | Low oil-pressure, High water temperature,
Over-speed, Over-current |
| Engine Model | Original Uk Perkins 1106A-70TAG4 |
| Cylinders | 6 |
| Cylinder Arrangement | L |
| Bore x Stroke(mm) | 105X 135 |
| Compression Ratio | 16:1 |
| Speed | 1500rpm |
| Cooling Method | Water – cooled |
| Starting Method | 12V DC electrical start |
| Full Load Diesel Consumption (L/H) | 45.2L |
| Engine Displacement (L) | 7.01L |
| Inspiration (L) | Turbocharged Intercooler |
| Lube Volume (L) | 16.5L |
| Coolant Volume (L) | 21 |
| Noise (Db) | ≤ 80 |
| Governor Type | Electrical Governing |
| Alternator Model | LEADTECH OR STAMFORD 274H |
| Alternator Power | 160kw/200KVA |
| Voltage | 220/380 V |
| Protection | IP23 |
| Voltage Regulation | ±4% |
| Insulation Class | H |
| Voltage Control | AVR |
| Net Weigh (KGS) | 2200 |
| Dimensions (L x W x H) mm | 3100*1300*1600MM SILENT
3500*1300*2000MM SUPER SILENT |
| 40FT Container | 4 units |
| Optional |
|
| ATS (auto transfer switch) |
| AMF (auto mains failure) |
| BatteryCharger |
| SUPER SILENT |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
