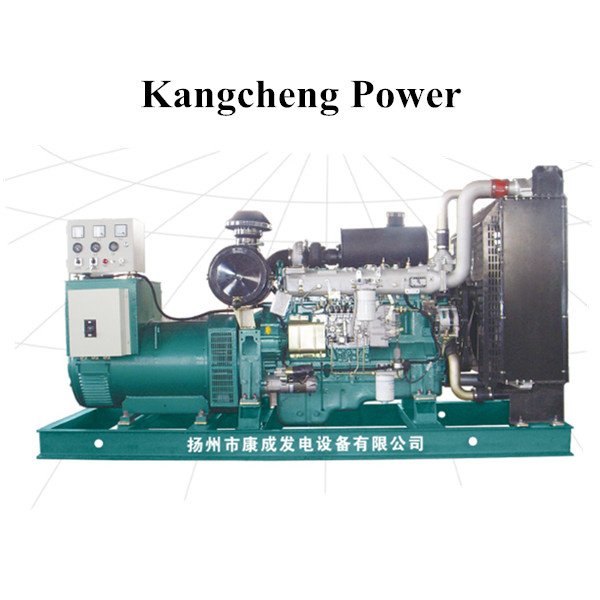

Description & Feature :
Engine:Cummins 6CTAA8.3-G2
Alternator:Stamford UCI 274H
Control Systems:
？
Standard control panel (Manual) is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.
？
？
Fully Automatic (with ATS) is the configuration with LCD automatic control panel for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator set.
ATS detects the voltage and？frequency of main power timely. While？there is something wrong, such as high？voltage, low voltage, phase missing,？electricity cutting off, etc., it will signal to？start the generator set automatically;While main power resumes balanced, it？controls the generator set to shut down？after cooled.
？
Control protection System
High water temperature
Low oil pressure
Over and under speed
Over current
Under/Over generator voltage
Start and stop failure
Low and high battery voltage
Charge fail
Emergency stop
？
Soundproof Canopy
All metal canopy parts painted by electrostatic polyester power paint
Soundproof design ensure that the noise level be controlled in small scope
Convenient to lift and move
Easy to maintenance and operate
Protection of the Environment
？
Base fuel tank
Base frame including position for forklift and crane
Integral fuel tank
Daily fuel tank continuously supply for 8-24 hours
Fuel tank easy to maintain and clean
Anti-vibration pads are flexed between engine and alternator.
Split type fuel tank？
Daily fuel tank continuously supply for 8-24 hours
easy to maintain and clean
Increase？oil
？ ？ ？？
？
Optional Configuration
？
Alternator:Stamford,Stamford,Marathon,Shanghai Lingyu...
Control:Deepsea,Comap,Smartgen,ATS ,or regular control panel
Fuel Tank:Base fuel tank ,Split type fuel tank,
Soundproof canopy
Mobile Trailer
Canopy
|
Diesel generator set technology parameters |
|
Type |
KC160GF |
Power of output(KVA) |
200 |
|
Frequency(Hz) /Speed (rpm) |
50 / 1500 |
Output Voltage(V) |
400 / 230 |
|
Phase Number / Connection Mode |
Three-phase four wire / "Y" type winding |
Rated current (A) |
288 |
|
Startup mode |
DC24V Electric start |
Noise LP7m (dB) |
85-100 |
|
Dimensions for set(LXBXH) (mm) |
2600*850*1650 |
Weight for set(KG) |
1600 |
|
Diesel engine technology parameters |
|
Brand |
Cummins (Dongfeng) |
Type |
6CTAA8.3-G2 |
|
Power of output(KVA) |
255 |
Rated speed(rpm) |
1500 |
|
Air discharge (L) |
8.3 |
Boke*Stroke(mm) |
114/135 |
|
Number&Type of cylinder |
6 cylinder .Four stroke |
Compression ratio |
17.3:1 |
|
Arrangement |
Air intake mode |
Turobocharged |
|
Cooling mode |
Water-air Intercool; cooling water tank/Fan |
Speed regulation mode |
Electronic |
|
Startup mode |
DC24Vstart |
Volume of lub.oil (L) |
24 |
|
Consumption of fuel(g/KW.h) |
≤205 |
Lub oil specification |
15W/40CD |
