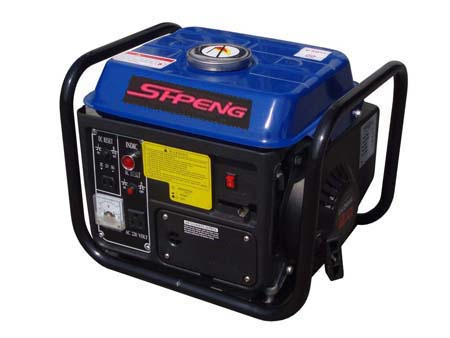

Generator
Rated frequency (Hz): 50 60
Rated voltage (V): 230 120
Rated output power (W): 750
Max output power (W): 1000
Rated rotation speed (rpm): 3000 3600
DC output: 12V 8A
Power factor cos: 1.0
Phase number: Single phase
Noise level dB (A)/7m (zero load-full load): 65-68
Fule tank[L]: 6/12
Set Overall dimensions [mm] ( L x W x H ): 465x365x380
N. W/G. W[Kg]: 26/28
Engine Engine model: ZH90
Engine type: Single cylinder, 4-stroke, air-cooled, OHV, gasoline engine
Displacement [CC]: 87
Compression ratio: 8.5: 1
Rated power [(HP/rpm]: 2.6/3600
Rated rotation speed (rpm): 3600
T. C. I: with
Spark plug: F6RTC
Starting system: Recoil starter
Rotation direction (view from flywheel): Clockwise
Fuel type: Automotive unleaded gasoline
Lube oil brand: SAE10W30 (above CC grade)
Low oil alarm system: No
