Silent diesel generator set
|

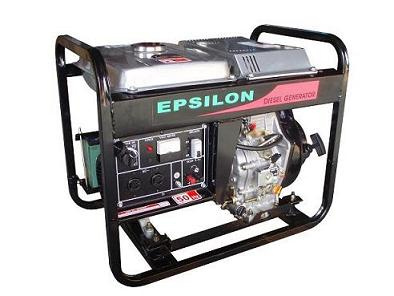

Open frame type air-cooled diesel generator |
|
|
|
|
|
|
Model |
DG6600E |
|
Generator |
Frequency(Hz) |
50 |
|
Rated AC output(kW) |
5.0 |
|
Max. AC output(kW) |
5.5 |
|
Rated. AC voltage(V) |
220 |
|
Power factor(COSΦ ) |
COSΦ =1 |
|
DC output(V) |
12V/8.3A |
|
Phase |
Single phase |
|
Alternator |
self-excited, 2-pole, single phase alternator |
|
Starting system |
Recoil or Electric |
|
Noise level dB(at 7m) |
76-80 |
|
Fuel tank capacity(L) |
12.5 |
|
Continuous running time(h) |
7 |
|
Engine |
Model |
TG186F |
|
Engine type |
Single-cylinder, vertical, 4-stroke air-cooled diesel engine |
|
Bore× stroke(mm) |
86× 70 |
|
Displacement(cc) |
406 |
|
Fule |
0#or-10#light diesl oil |
|
Lubrication oil volume(L) |
1.65 |
|
Combustion system |
Direct Injection |
|
package |
Dimension(L× W× Hmm) |
755× 495× 610 |
|
Net Weight(kg) |
106 |
|
|
20GP/40GP |
84/180pcs |
Taizhou Anpai Cleaning Machinery Co., Ltd. is an enterprise specielized in producting of samll_sized generation sets, power water pumps, power washing machines, It locates in Linhai, namely "the ancient city in jiangnan. "It is very conversant in sea, land and air transportation, the Ninbo_Thaizhou _Wenzhou express highway stretches through the city, The former body of the company engoged machinery products production cl designing
The company adopts the seria of power generating sets"The dream of sea", assembled with advance produc-tion line, by abiding by the following principles of promoting the products quality with science and tach-nology, marching into the market with super_qualitied products, winning trust with specialized service and interpreting brands with brand-new ideas, the company imported a lot of domestic and foreign into the production.
As a role, Tiger machinery regards cliends interest to be the number one priority. "Meeting the clients and need with heartfelt service"is the slogan of the company. In the new era, we are facing new chance, All the staffs of Tiger Machinery are determaind to work hard together with you and enjoy the join fruist.
