Super silent optional;
Welding optional;
Air cooled;
Stable out put.

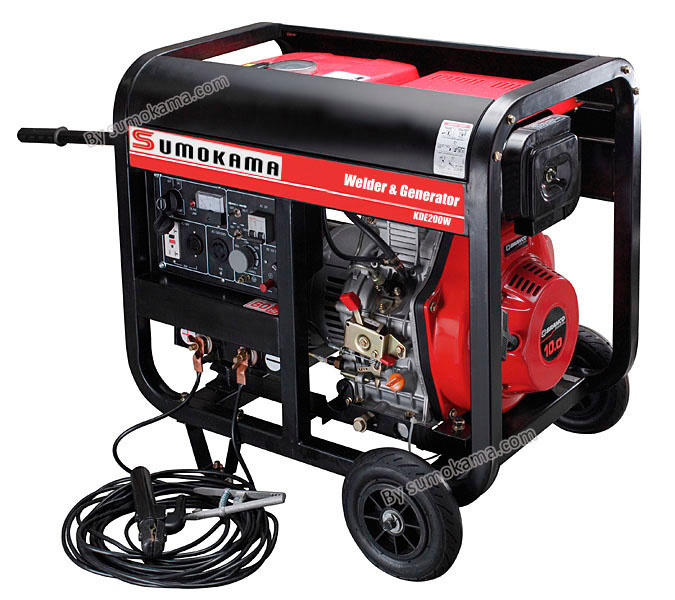

Model KDE200W
Frequency (Hz) 50 60
Rated Output (kVA) 2.2 2.5
Rated Voltage (V) 230 240
Rated current (A) 8.7 9.2
Rated rotation speed (rpm) 3000 3600
No-load welding voltaged: V 65-67
Rated welding voltaged: V 26-30
Rated welding DC: A 160
Current adjusting extension 50-190
Welding Electrode φ (mm) 1.6-4.0
Welding load continuous ratio 50%
Phase No. Single phase
Power Factor COS=1
Excitation Mode Self-excitation, 2 pole and constant voltage (AVR)
DC Output 12V. /8.3A, Connection Pole Output
Structure Type Open frame type
Noise Level (7m) dB(A) 75-79
Engine Model KM186FA
Engine type Single-Cylinder, Vertical, Four-Stroke, Direct Injection, Air Cooled Diesel
Bore × Stroke(mm) 86X72
Displacement (L) 0.418
Rated Power KW 5.7/3000 6.3/3600
Fuel comsumption Rate(g. Kw/h) 275.1 281.5
Compression Ratio 19: 1
Lubrication System Pressure Splashed
Starting System Electric Start with 30Ah MF battery
Fuel Type 0#(summer), -10#(winter), Diesel
Lube Oil Brand SAE10W30 (above CD Grade)
Lube Capacity (L) 1.65
Fuel Tank Capacity (L) 12.5
Continuous Running Time (hr) 12
Overall Dimension: LxWxH (mm) 750 x 520 x 660
Dry Weight (Kg) 110
Quantity in 20FT 99 PCS
We reserve the right to change specifications without notice
