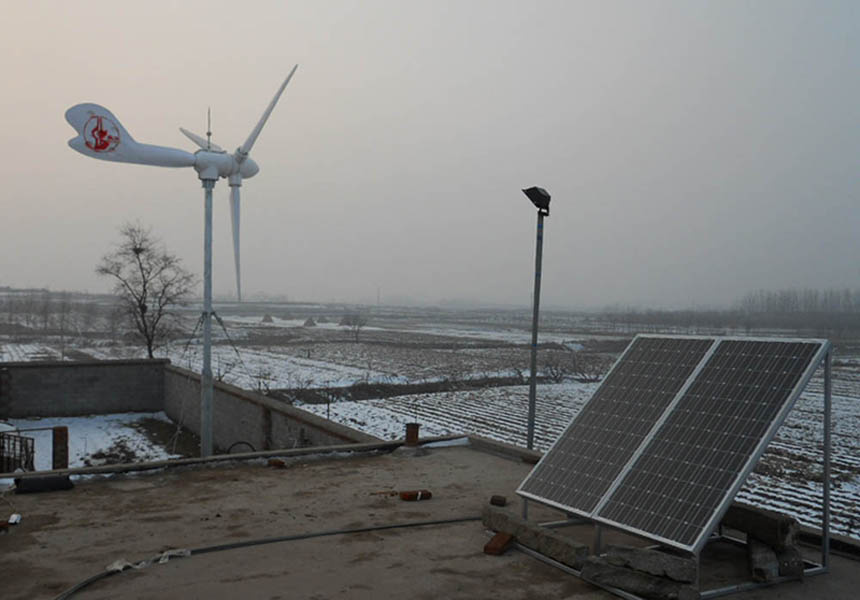

This 1kw wind/solar power system, the generator is PMG, this wind turbine with pitch control system, with CE SGS ISO
This 1kw wind/solar power system introduction:
1\ the wind turbine is horizontal wind turbine;
2\the wind turbine is 1kw (Optional); The solar panel is Monocrystalline 150W (optional)
3\the wind turbine rated power is 1kw, the cut -in speed is 2.0-2.5m/s
4\the wind turbine rated speed is 2.5-25m/s
1KW wind turbine technical parameters |
Rated power |
1000W |
Max Power |
1500W |
Cut-in wind speed |
2.5M/S |
Rated wind speed |
9M/S |
Cut-out wind speed |
25M/S |
Security wind speed |
45M/S |
Operating wind speed |
2.5-25M/S |
Rated RPM |
450 |
Rated Voltage |
48V |
Working Voltage |
120/220V |
Frequency |
50/60HZ |
Protection degree |
IP54 |
Material of Blades |
FRP |
Blade diameter |
3.30M |
Height of Tower |
6M |
Type of Tower |
guyed-tower/free stand tower |
Brake system |
active brake |
Pitch system |
by Mechanical centrifugal force |
Top quality except tower |
163KGS |
Qingdao Minshen Wind Power Technology Co., Ltd. is a professional&high-tech company engaged in wind turbine generator, it founded in 2000 and located in laixi development zone in qingdao(close to 804 national road), convenient transportation through qingdao, yantai, weihai, weifang, such as port. Our company committed to research wind turbine and has advanced wind turbine design&manufacturing technology(a number of technology patents), advanced equipment, many superb experts.
The wind turbine generator which we can produce now include many kinds of horizontal and vertical axis wind turbines from 200W to 100kw. Rational product design, advanced technology, stable and reliable quality are our products characteristics, at the same time, our products have passed ISO9001-2008 international quality management system certification, CE product safety certification. Large-scale wind turbine can be used for the construction of wind and grid and the small wind turbine is the ideal power supply system for the scattered households, meteorological stations, posts, communities, plains, farms and so on. Products have exported to Africa, India, France, Russia and other countries. We have made a tremendous contribution for environmental protection and resource conservation.
