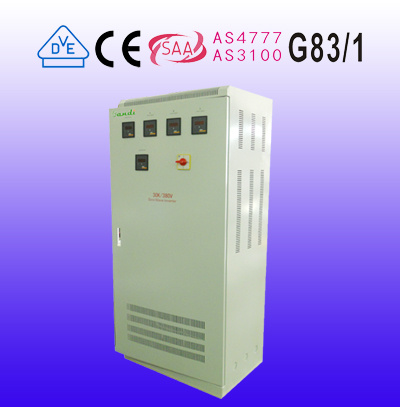

192VDC to 380VAC LED Display off Grid Inverter 20kw for PV System
| Price: |
US $ 3000-5000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Faceplate show working status and fault type, Over voltage under voltage automatic return to work after normal, Manage charge and discharge electricity with many kinds and capability of accumulator.
|
Model |
SDP- 20KP |
|
Rated power |
20000W |
|
DC input voltage |
192V, (220V, 240V) |
|
Maximum discharge current |
90A |
|
Output current |
90A |
|
AC output waveform |
Pure sine wave |
|
Charge current |
10% according battery capacity |
|
Charge function |
Charger outside(can choose) |
|
Instant maximum power |
150% technical data, 10sec |
|
Output voltage |
110VAC, 220V AC ± 3% |
|
AC output frequency |
50Hz/60Hz± 0.05Hz |
|
No-load power |
0.8A DC |
|
Waveform distortion (THD) |
≤ 5%(Linear load) |
|
Inverter efficiency |
≥ 90% |
|
Work environmental temperature |
-10-60 |
|
Work environmental elevation |
≤ 1000m |
| Prod Model: |
SDP-20KW 3phase |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Blade: |
Three Blade |
Yueqing Sandi Electric Co., Ltd specialized in the new energy source and electrical source scientific research, development, manufacture and service had surpasses for 10 years of electrical source field; Which recognized by widely customers according to entirely varieties, high quality and service first. At present, the researched products by our company basically contain the best product at home and abroad, which delegated the top level of electrical source manufacture all over the world. The main products are: PV Grid-Connected Inverter, Solar Inverter, PV Solar Pumping Inverter, Water Pumping Inverter, Grid Tie Inverter, On Grid Inverter, Solar pumping inverter, Wind Turbine Controller, Solar Charge Controller, Pure Sine Wave Inverter, Off-Grid Inverter, power Inverter. The products of company are widely applied in fire fighting, construction, industry, new energy source, civilian use, finance, business tax, electric power, medical treatment, aviation, automatically control system of war industry and national heavy engineering project.
SANDI Electric Company insist on technology as forerunner, keep long-term, good research cooperation with all universities; Fetch in and absorb international advanced technology, built strictly quality control system.
We will take the work objective of "unremitting exploration, endeavor and innovation, honesty and dedication, perfect and practicality" and quality guideline of "criterion management, intensive manufacture, quality first, service with all hearts". Seek excellence, value innovation!
We will ceaselessly struggle and create refulgence with you together.
