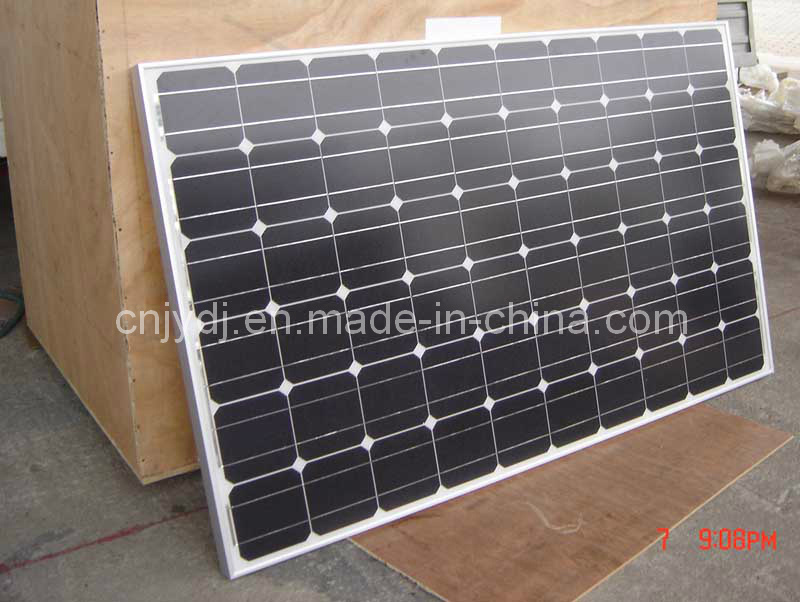

190W/24V Mono Solar Panel
Monocrystalline silicon solar PV module
Monocrystalline solar panels
Photovoltaic solar modules
PV monocrystalline panel
280W single crystalline silicon solar cells with High efficiency
Specifications of 190W/24V Mono Solar Panel
PV solar panels, solar panel price
Solar cells
TUV IEC61215 CE ISO SONCAP
Long lifespan
High Conversion rate
Parameter of 190W/24V Mono Solar Panel
Maximum power (Wp): 190W
Maximum power voltage (V): 36.8
Maximum power current (A): 5.16
Open circuit voltage (V): 44.2
Short circuit current (A): 5.78
Number of cells (PCS): 72
Size: 1580*808*35mm
Certificates: CE, TUV
Jiaoyang's photovoltaic module is designed for electrical power requirements. The solar panel componets as follows:
1)Solar cell: High efficiency crystalline solar cell. Even if under the weak light, the solar module can produce maximum power output.
2)Tempered glass: Auti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.
3)EVA and TPT: Using high quality EVA and TPT to prevent destroying and water.
4)Aluminum frame: Without screw, comer connection. 6 holes on the frame can be installed easily.
5)Junction box: IP65, Multi function junction box with water proof.
6)Sillicon rubber adhesive.
Solar panel relevant index:
1)Long lifetime: More than 25years, less power decrease.
2)Good performance of preventing from atrocious weather such as wind and hails.
3)Resisting moisture and etching effectively, not effect by geology.
4)Warranty: 2 year product warranty, and Pmax is no less than 90% in 10 years and 80% in 20 years.
5)Tolerance: +/-5%, solar cell's efficiency can get to above 16%.
6)Certificate: TUV, IEC61215, CE and ISO9001: 2000.
7)System voltage: 12V/24V/36V/48V
