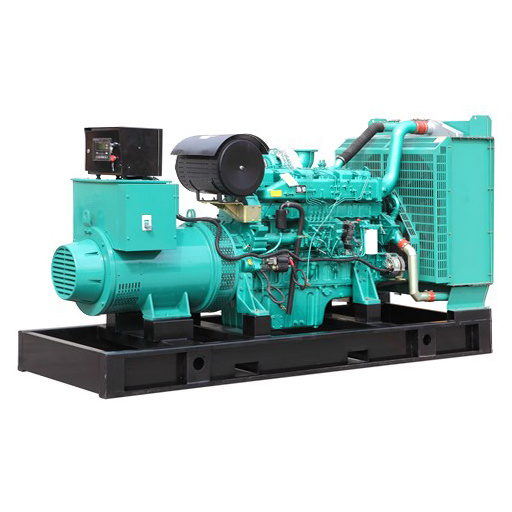

188kVA Yuchai Diesel Generater Set (ETYG-188)

Etone Series Diesel Generater:

Product Description:
150KW Yuchai Diesel generator set
1) Yuchai engine, Etone, stamdford/Marathon/Leroy somer generator
2) Prime Power: 150kw, 188kVA
3)Voltage: 230/400V(other voltage can available
4) 12 months warranty

1. Technical parameters of Engine:
Producer: Yuchai

2. Technical parameters of Alternator:
Brand: Etone Stamford/Marathon/Leroy Somer(Optional)Frequency fluctuation: ≤ ± 0.5%Frequency regulation: ≤ ± 0.5%(stable)Voltage Setting Range: ≥ ± 5%Temperature Rise: HClass of Insulation: HGrade of Protection: IP22Efficiency: 93.60%Electromagnetism Interference Factor: THF<2%, TIF<50Steady Voltage Regulation Factor: ≤ ± 1.0%

3. Technical parameters of Control Panel:
Brand: Smartgen/Upwin/Deepsea(Optional)Start or stop generator set Manually/AutomaticallyGenerator over/under frequency protectionOpen controller output can be defined as Pre-heat/Idle outputGenerator over/under/unbalance voltage protectionHigh coolant temperature protectionOver speed protectionLow oil pressure protectionOver current protectionOver load protectionAvailable for remote controlNote: Indicate this function depeed on the set points of the controller in field.

INSPECTION AND TEST
1 GENERAL
1.1 Each engine shall be tested at manufacturers workshop to certify the engine output and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
1.2 All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
1.3 The engine and generator shall be tested separately in accordance with relevant standards specified above.
1.4 The completed and individually tested engine and generator shall be assembled onto the baseplate with all auxiliaries, instruments and controls for a complete test of the generator set.
Product line
1. Open type gensets.
2. Silent type gensets.
3. Trailer mounted gensets.
4. Enviromental protection and noise reduction project
