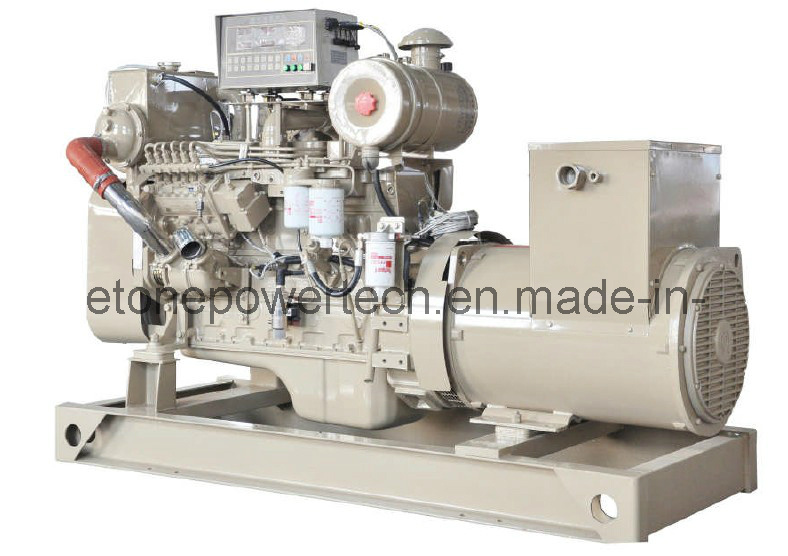

150-800kVA Cummins Marine Genset (ETM500)

Name: 150-800kVA Cummins Marine Genset (ETM500)
Brand: aboutgenerator.com
SKU: 705127765
Availability: InStock
Rating: 5 (126 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P

Contact Supplier

Dongguan City Etone Machinery Electricity Equipment Co., Ltd.

Showroom Product Company Profile

150-800kVA Cummins Marine Genset (500KVA)

Model: ETCG500
Engine Mode: KTA19-G3
Prime Power: 450kVA/260KW
Standby Power: 500kVA/400KW

Options for the diesel generaor set:
Soundproof canopy type, trailer type
50Hz/60Hz, 1500rpm/1800rpm
Single phase/three phase four lines

Generator set feature:
Engine Features:
* Super power, PT fuel system, ultra-high injection pressure, sufficent combustion, low fuel consumption and good economic performances.
* Replaceable wet cylinder sleeves, effective cooling system, good spare parts commonality, high product serialization, easy maintenance and low failure.

Diesel Engine Type:
* Working cycle: Four-strokes
* Combustion model: Direct injection
* Starting way: DC Batteries
* Cooling way: Radiator with fan & water tank

The Electrical Performance of Diesel Generator Sets
* Power factor: 0.8(lagging)
* Connection way: Three phase four lines
* Ambient temperature: -40C~52C
* Steady voltage regulation rate: ± 1%; Transient voltage regulation rate: +20~-15%
* Steady frequency regulation rate: ± 1%; Transient frequency regulation rate: +10~--7%
* Voltage fluctuation rate: 0.5%
* Frequency fluctuation rate: 0.5%

AC Alternator
* Standard brands: Etone, Leroy Somer
* Optional brands: Marathon\Stamford
* Excitation method: Brushless self-excitation
* Isulation grade: H
* Protection grade: IP21-IP23
* Electromagnetic interference: THF<2%, TIF<50

Control System
* Standard matching brands: Smartgen and Comap
* Optional brands: Harson, Deepsea
* LED/Graphics/meters indicate unit running parameters
* High water temperature, low oil pressure, low speed, overspeed and others alarm and protected
* Automatically start switching when the main power service fails(optional)
* Multi-gensets with automatic parallel connection control module(optional)
* Functions of remote control interface, remote control, remote test and remote signal(optional).

Item	Output(KW)	Engine Model	Dimension(LWH)mm	Weight (KG)
ETCFJ150	150	NT855-DM	25509802250	2900
ETCFJ180	180	NT855-DM	25509802250	2900
ETCFJ200	200	NTA855-DM	25809802290	3100
ETCFJ250	250	NTA855-DM	26209802290	3180
ETCFJ270	270	NTA855-DM	265010002300	3250
ETCFJ280	280	NAT855-DM	265010002300	3250
ETCFJ300	300	KTA19-DM	31009502080	3750
ETCFJ350	350	KTA19-DM	315010002150	3850
ETCFJ400	400	KTA19-DM	315010002150	3950
ETCFJ500	500	KT38-DM	410016502200	6200
ETCFJ600	600	KTA38-DM	410016502200	6300
ETCFJC40	40	4BTA3.9-GM47	15007501320	1000
ETCFJC50	50	4BTA3.9-GM47	15007501320	1000
ETCFJC64	64	6BT5.9-GM83	18508201350	1200
ETCFJC70	70	6BT5.9-GM83	18508201350	1250
ETCFJC80	80	6BTA5.9-GM100	19008501400	1300
ETCFJC90	90	6CT8.3-GM115	19008501400	1350
ETCFJC100	100	6CT8.3-GM115	21008001360	1650
ETCFJC120	120	6CTA8.3-GM155	21008001360	1750
ETCFJC150	150	6LTAA8.9-GM200	24009001400	1950
ETCFJC720	720	KTA8-DM	415016502200	6500
ETCFJC800	800	KTA38-DM	420017002350	7000

Prod Model:	ETM500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	150-800kVA
Stroke:	Four Stroke
Type:	Self-Starting Diesel Generator
Cooling Method:	Water Cooling
Installation Method:	Fixed
Output Type:	AC Three Phase
Speed:	1500rpm/1800rpm

Etone----Never Stop Running!
Your reliable electric power expert

Etone Power Co., Ltd is a professional manufacturer specialized in Generator set production, design, sales, installation, maintenance and service. It has been established over 15 years, The field experience is over 20 years, And the commodity has been exported to over 80 countries and regions all over the world. Etone has set up reliable partnership with Cummins, Perkins, Deutz, Mitsubishi, Stamford, Leroysomer and Marathon series world famous engines and AC alternators. To provide no defect product and professional, timely service is our work orientation.

In accordance with international standard strickly, Etone has its own advanced production line and professional technical team to make sure every piece of Etone product is durable, practical and well satisfy the clients' request. Etone has got high reputation and satisfaction from the users. The products are Widely used in the industry, IT field, finance field, Telecom, mining industry, army, government project and public facilities etc. Etone has formed a completed pre-sale, sale and after-sale service system.

After many years accumulation and development, The Product lines widely cover Generator set, Uninterrupted Power Supply, Transformer and AVR electric product etc. We are devoted to provide the user complete electric proposal for the whole system.

Etone will always to execute " Use our technology and service to create a better for the human being, To keep all your work, you life never stop running.

For more complete and detailed information, you also can refer to the Official website.
