185Watt Maximum power UL-155 UL-160 UL-165 UL-170 UL-175 UL-180 UL-185
Mono-crystalline solar paner
Features
@High conversion efficiency based on leading innovative photovoltaic technologies
@High stabillity with guaranteed+/-3%power output tolerance, ensuring return on investment
@Beautiful appearance
@Withstands high wind-pressure and snow load
@Easy to install
Quality and safety
@25-year power output warranty with China Pacific Property Insurance Co., Ltd
@Rigorous quality control meeting the highest international standards
@ISO9001: 2008(Quality Management System)certified factories manufacturing world-class products
Recommended Applications
@On-grid utility systems
@On-grid commercial systems

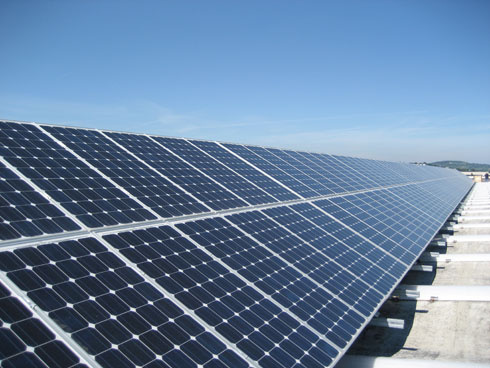

@Off-grid ground mounted systems
CharacteristicsUL-155 UL-160 UL-165 UL-170 UL-175 UL-180 UL-185
Open-Circuit Voltage(Voc) 42.2V 42.8V 43.2V 43.6V 43.9V 44.2V 44.4V
Optimum Operating Voltage(Vmp) 35.2V 35.5V 35.6V 35.8V 36.2V 36.8V 37V
Short-Circuit Current(lsc) 4.96A 5.15V 5.2V 5.25V 5.3V 5.35V 5.92V
Optimum Operating Current(lmp) 4.4A 4.51A 4.65A 4.76A 4.85A 4.9A 5A
Maximum Power at STC(Pmax) 155Wp 160Wp 165Wp 170Wp 175Wp 180Wp 185Wp
Operating Temperature -40oC to+85oC -40oC to+85oC -40oC to+85oC -40oC to+85oC -40oC to+85oC -40oC to+85oC -40oC to+85oC
Maximum System Voltage 1000VDC 1000VDC 1000VDC 1000VDC 1000VDC 1000VDC 1000VDC
Series Fuse Rating 15A 15A 15A 15A 15A 15A 15A
Power Tolerance ± 3% ± 3% ± 3% ± 3% ± 3% ± 3% ± 3%
Mechanical Characeteristics
Solar Cell Momo-crystalline 125× 125mm (5inch)
No. Of Cells 72(6× 12)
Dimensions 1580× 808× 35mm(62.2× 31.8× 1.4inch)
Weight 15.5kg(34.1lbs)
Front Glass 3.2mm(0.13inch) tempered glass
Frame Anodised aluminium alloy
Junction Box Cixi Renhe PV-rh0502B(TUV)
Temperature Coefficents
Nominal Operating Cell Temperature(Noct) 45± 2oC
Temperature Coefficient of Pmax -0.48%/oC
Temperature Coefficient of Voc -0.34%/oC
Temperature Coefficient of lsc -0.017%/oC
Shanghai U-light Industrial Co., Ltd., is devoted to the development, production and trade of solar products. We own our professional R&D team and production base. With the quick development of the company, we have exported products to different countries in Asia, Europe, Middle-east, South Africa, and also have sound share in the local market.
Our main solar products include solar panel, solar street light, solar camping lantern, solar road studs, solar lawn light, other solar light, solar water heater, solar water pump, etc.
Inheriting the spirit of everlasting innovating, growing and struggling, people of U-light will continue to play a roll in the development of the solar energy application field while going ahead and working hard right along.
With the high quality products and perfect customer service, we believe we will be your best business partners.
