Manufacturer Shengli Oilfield Shengli Power Machinery Group Company Ltd (Shengdong Group)

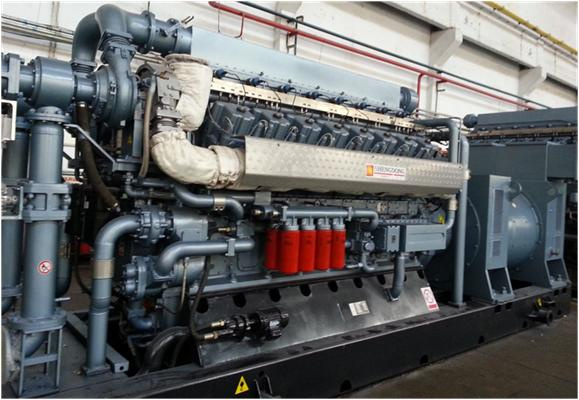

Genset model 1200GFZ-PWT
Engine model T16V190ZLDK-2
Alternator model 1FC6 506
Breaker panel model GCBP
Field control panel FCP
Local control panel LCP
Rated power kW 1200
Rated current A 1800
Rated voltage V 480
Rated power factor cosφ 0.8 (lagging)
Frequency Hz 60
Fuel gas consumption MJ/(kWh) 9
Lubricant consumption g/(kWh) ≤0.75
Electrical efficiency % 40
Start-up method DC 24V Electric motor
Start-up control Manual/Automatic
Wiring method 3 phase 3 line/3 phase 4 line
Stable speed droop % ≤5
Cooling method Closed loop, with fan radiator
Exhaust back pressure max. 6 kPa
Noise level 110 db @ 1 meter away from the genset
37 db @ 1 meter away from engine muffler
Genset vibration ≤7.2mm/s
Coupling between engine and alternator Elastic coupling
Cooling method Closed type radiator
Dimension (L×B×H) mm 6770X1800X3179
Weight kg 25000
Major component/system supplier & description:
Overall control & genset management Shengdong TEM-2 (ECU based)
Air/ fuel ratio control Shengdong TEM2 Venturi Mixer
Speed governing system (digital) Heinzmann / Woodward
Ignition (digital) Motortech / Altronic
Turbocharger Twin ABB turbocharger, water cooled aftercooler
Intelligent circuit breaker Changshu Switchgear
Shengli Oil Field Shengli Power Machinery Group Co., Ltd is the largest gas engine manufacturer in China. We are the manufacturer of Shengdong brand gas engines.
Our gas engine/generator is mainly for industrial purpose, with following five series:
1190 series, single cylinder four stroke engine, 24-40KW, designed for beam pump driving;
4190 series, four cylinder, 80-200KW, designed for beam pump driving and power generation;
6190 series, six cylinder, 180-350KW, for power generation;
12V190, 12 cylinder, V type engine, 350-1000KW, for power generation;
16V190, 16 cylinder, V type engine, 800-1400KW, for power generation;
20V190, 20 cylinder, V type engine, 1500-2000KW for power generation.
Shengdong Gas Engine was founded by Ministry of Petroleum (divided into SinoPec and ChinaPetro in 1990s) in late 1970s, located in Shengli Oil Field, Dongying City, Shandong Province. Core business of Shengdong is gas engine, meanwhile diesel engine, oil equipment are also manufactured in Shengdong factories.
Today, Shengdong Gas Engine holds more than 45% of China's gas engine market while the share is still rising. In the field of CMM (Coal Mine Methane) power generation, due to excellent adaptability to Extreme Low Density CMM and unique Safe Distribution Technology of CMM, Shengdong Gas Engine holds more than 80% of the market.
Shengdong Gas Engine aims to provide users with low-cost but high-payback gas-power solutions;
With tailor designed engines, Shengdong Gas Engine provides different products against different gas sources. Type Z (natural gas), T (Natural gas), W (CMM), G (biomass gas), M (coal gas) can ensure you are using the most optimized gas engine; Low-cost but highly-available spare parts, fast site services ensure the best availability of the gas engine after your purchasing.
Shengdong Gas Engine will keep on exploring global market, with best product and service.
Shengdong Gas Engine has made remarkable achievement in different continents and markets, with thousands of users over the world. Shengdong agents/distributors are available in Malaysia, Thailand, Indonesia, Australia and Colombia.
