Manufacturer Shengli Oilfield Shengli Power Machinery Group Company Ltd (Shengdong Group)

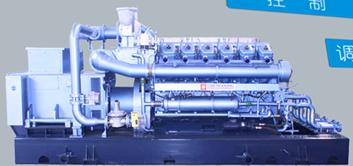

Genset model 700GFZ1-PWT
Engine model T12V190ZLDK
Alternator model 1FC6 458-6
Breaker panel model GCBP1-1263
Field control panel FCP1-750T
Local control panel LCP1-3GS
Rated power kW 400-750
Rated voltage V 400-13000
Rated power factor cosφ 0.8 (lagging)
Frequency HZ 50/60
Fuel gas consumption MJ/(kW？h) 9
Lubricant consumption g/(kW？h) ≤0.75
Electrical efficiency % 40
Start-up method DC 24V Electric motor
Start-up control Manual/Automatic
Wiring method 3 phase 3 line/3 phase 4 line
Stable speed droop % ≤5
Cooling method Closed loop, with fan radiator
Exhaust back pressure max. 6 kPa
Noise level 106 db @ 1 meter away from the genset
34 db @ 1 meter away from engine muffler
Genset vibration ≤7.2mm/s
Coupling between engine and alternator Elastic coupling
Dimension (L×B×H) mm 5600X2100X2335
Weight kg 15200
Major component/system supplier & description:
Overall genset management ComAp & Motortech AIO Gas Genset Control Moduel
Air/ fuel ratio control ComAp & Motortech AIO Gas Genset Control Moduel
Speed governing system (digital) Heinzmann / Woodward
Ignition (digital) Motortech
Intelligent circuit breaker Changshu Switchgear
Shengli Oil Field Shengli Power Machinery Group Co., Ltd is the largest gas engine manufacturer in China. We are the manufacturer of Shengdong brand gas engines.
Our gas engine/generator is mainly for industrial purpose, with following five series:
1190 series, single cylinder four stroke engine, 24-40KW, designed for beam pump driving;
4190 series, four cylinder, 80-200KW, designed for beam pump driving and power generation;
6190 series, six cylinder, 180-350KW, for power generation;
12V190, 12 cylinder, V type engine, 350-1000KW, for power generation;
16V190, 16 cylinder, V type engine, 800-1400KW, for power generation;
20V190, 20 cylinder, V type engine, 1500-2000KW for power generation.
Shengdong Gas Engine was founded by Ministry of Petroleum (divided into SinoPec and ChinaPetro in 1990s) in late 1970s, located in Shengli Oil Field, Dongying City, Shandong Province. Core business of Shengdong is gas engine, meanwhile diesel engine, oil equipment are also manufactured in Shengdong factories.
Today, Shengdong Gas Engine holds more than 45% of China's gas engine market while the share is still rising. In the field of CMM (Coal Mine Methane) power generation, due to excellent adaptability to Extreme Low Density CMM and unique Safe Distribution Technology of CMM, Shengdong Gas Engine holds more than 80% of the market.
Shengdong Gas Engine aims to provide users with low-cost but high-payback gas-power solutions;
With tailor designed engines, Shengdong Gas Engine provides different products against different gas sources. Type Z (natural gas), T (Natural gas), W (CMM), G (biomass gas), M (coal gas) can ensure you are using the most optimized gas engine; Low-cost but highly-available spare parts, fast site services ensure the best availability of the gas engine after your purchasing.
Shengdong Gas Engine will keep on exploring global market, with best product and service.
Shengdong Gas Engine has made remarkable achievement in different continents and markets, with thousands of users over the world. Shengdong agents/distributors are available in Malaysia, Thailand, Indonesia, Australia and Colombia.
