160kw /380V/50Hz Marine Diesel Generator Set
| Price: |
Negotiableset/sets |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set/sets |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |

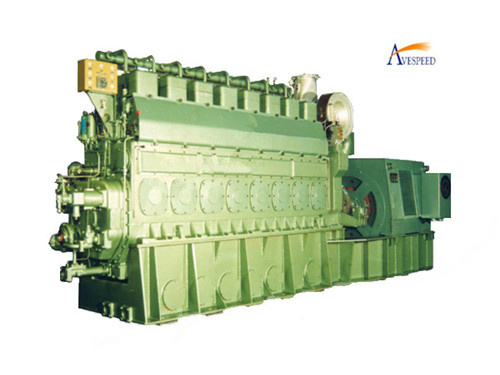

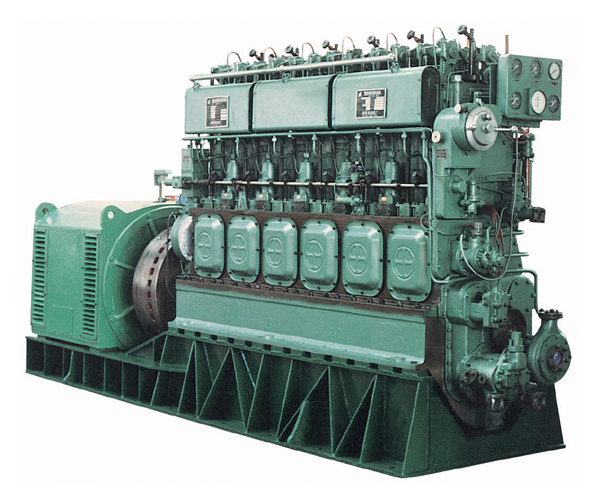

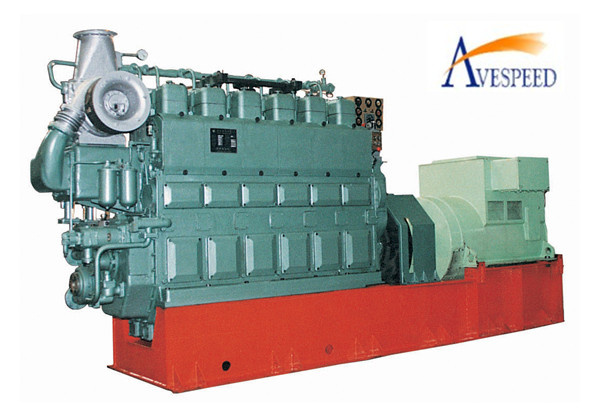

160kw /380v/50Hz marine diesel generator set
The descriptions of the diesel generating sets:
The "AVESPEED"brand diesel generating sets with capacity 120-3000kw which the factory products are motive powered with N330,300,L250,210,Z170,Z6150 series and with characteristics such as high power, low fuel consumption,operational safety, operating easy etc.They can be supplied for factory and institution as self powers as well as all sorts of power stations and pump station sets ideally.
Different types of stationary and marine diesel engine sets are available,with frequency of 50Hz and 60Hz and output voltage 400V,450V,3800V,6300V and 10500V.For them,single power set running and multi-power sets parallel running are both ok.Automatic sets,heavy oil engine sets,gas engine sets and biomass gas engine can also be produces according to customers'requirements. Small-sized air-cooled and mobile sets are also provided.
"AVESPEED"brand generator sets are throughout 32 provinces,municipalities and autonomous regions in our country,and sold to more than 30 oversea countries and areas,such as Italy,Vietnam,Ethiopia, Bangladesh,Kenya and so on.we would like to offer good services to customers.
You must also like these marine diesel generator sets:
Product packages:
Export wooden case or Plywood case (optional)
|
Item |
Specification |
|
1\diesel generator set |
|
Gen-set brand |
Excellent Power |
|
Model |
160GF |
|
Gen-set Power(KW) |
160 |
|
Output Voltage(V) |
400/230 |
|
Frequency(Hz) |
50 |
|
Power Factor |
0.8(Lag) |
|
Rated Current(A) |
288 |
|
Voltage Changing Ratio(%) |
≤0.5 |
|
Transient Voltage Regulation(%) |
+20~-15 |
|
Steady Voltage Variation(%) |
≤±1 |
|
Voltage Stabilization Time(s) |
0.5 |
|
Frequency Changing Ratio(%) |
≤±0.5 |
|
Instant Frequency Timing Ratio(%) |
+10~-10 |
|
Steady Frequency Timing Ratio(%) |
≤±1 |
|
Frequency Stabilization Time(s) |
0.5 |
|
Rated Rotation Speed(rpm) |
1500 |
|
Gen-set N/W(kg) |
1950 |
|
Overall Dimension(L*W*H) (mm) |
2700 × 1100× 1600 |
|
2\Marine engine |
|
Engine Brand |
Yuchai |
|
Engine Model |
YC6M240C |
|
Rated Rotation Speed( rpm) |
1500 |
|
Continuous Power(KW) |
176 |
|
Cylinder Number |
6 ( in line) |
|
Bore*Stroke |
120*145 |
|
Displacement(L) |
9.84 |
|
Compression Ratio |
17.5:1 |
|
Fuel Consumption(g/kw*h) |
≤189 |
|
Oil consumption(g/kw*h) |
≤0.5 |
|
Oil capacity(L) |
28 |
|
Speed Regulation Mode |
Electric |
|
Cooling System |
Sealed and water Cooling System |
|
Starting Way |
24V Electric Start |
|
Noise[dB(A)] |
≤98 |
|
3\Alternator |
|
Alternator Brand |
Kangfu (Sanbo) |
|
Alternator Model |
SB-HW4(.D)-160 |
|
Rated Rotation Speed (rpm) |
1500 |
|
Alternator Power (KW) |
160 |
|
Excitation |
Harmonic Brushless |
|
Class of Insulation |
H |
|
Degree of Protection |
IP23 |
|
Waveform : THD |
'<2% |
|
Temperature Rise |
≤125K |
|
Voltage Regulation |
≤±1 |
|
4\ Side meters |
|
Manufacturer |
Yuchai |
|
Display Content |
Water temp., Current, Oil pressure, Oil temp.ect. |
| Prod Model: |
160GF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
160gf |
| Gen-Set Power(Kw): |
160 |
| Output Voltage(V): |
400/230 |
| Frequency(Hz): |
50 |
| Rated Current(a): |
288 |
| Gen-Set N/W(Kg): |
1950 |
| Rated Rotation Speed(Rpm): |
1500 |
| Overall Dimension(Mm): |
2700X1100X 1600 |
| Engine Model: |
Yc6m240c |
| Bore*Stroke: |
120*145 |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Basic Diesel Generator |
| Output Type: |
AC Three Phase |
