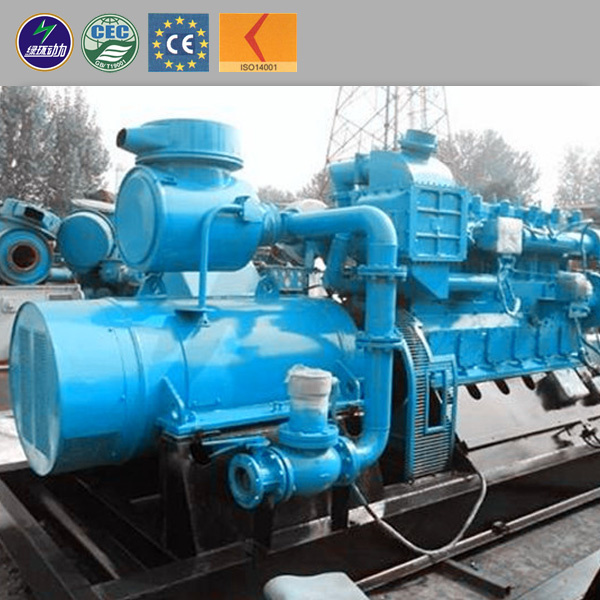

160kw 200kVA Natural Gas Generator 50Hz
Kinds of gas generators for natural gas, biomass, biogas coal bed methane (CBM), associated gas and syngas as well as diesel generators are all produced by us.
Natural gas generator applied field:
1. Oil field
2. Industrial Zone
3. Petroleum chemical plant
4. Used as standby power in case of emergency
5. Supply power to oil well…
Natural gas generator specification and parameters:
Rated Power: 10kw - 600 KW ( 12.5-750KVA)
Power factor: 0.8
Rated Voltage and Rated Frequency: 400V/230V, 50/60HZ
Voltage Stabilized Regulation: ≤ ± 1.5%
Frequency Fluctuation Ratio: ≤ ± 1%
Insulation Class: H
Fuel: Natural Gas (CNG, LPG), oilfield associated gas
Natural gas generator required gas condition:
Within 1meter from gas intake valve of generator
1. The ratio of methane(CH4) in natural gas ≥ 70%
2. Pressure of natural gas 80 ~ 200kpa, pressure changing rate ≤ 1kpa/min
3. H2S ≤ 20mg/Nm3
4. Moisture content ≤ 40g/Nm3
5. Impurity particle size ≤ 5μ M, impurity content ≤ 30mg/Nm3
Features of our natural gas generator
1. Pure copper water tank for best cooling effect
2. Famous component brand to ensure overall quality
3. Expansion fitting combined with shrinking fitting give high tightness to the system4. Safety guarantee form electromagnetic valve as well as back-fire relief valve
5. Residual heat CHP recycle system available for choice.
Service form us:
1. Installation and maintaining service abroad
2. Best sale service for machine using time
3. CE, ISO14001: 2004 certificate
4. Turnkey project with CHP/CCHP system and recovery system of exhaust heat
Natural gas generator machine supply details:
Ignition system: We adopt ignition system of magneto which produced by American ALTRONIC company, including: Magneto, high-tension coil, sparking plug.
Starting system: DC24V electric motor, 12v190 adopt ST710 of direct-current.
Pressure charging system: Pulse Mixed-flow supercharger, compression ration is 1: 8, meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Optional part---Silent canopy for natural gasgenerator:
Suitable to installation in narrow place and place with strict demand for noise, like: Factory, school, hotel, restaurant and residential area, etc.
Features of generator silent canopy:
1. Regular low noise control within 75dB(A) ( at 7 meters), super low noise with in 70 dB(A)(at 7 meters)
2. Double layers bottom frame with shock absorbing device. The oil tank, battery and muffler are assembled together. Easy to deliver and install.
3. Glass window and emergency button to make it easier to operate and inspect the working situation of generator.
Automatic control system for natural gas generator:
1. Manual control panel: This mode can not only provide start/stop fundamental function, but also can supervise the sunning situation if the generator set bu showing ass the technical data. Based on the alarm system and protection function, the generator can run more steady and reliably.
2. Long distance control system: The generator can be controlled in a long distance. We fix start time-lapse relay and stop time-lapse relay on the panel, so the system is easier to operate and it can run more reliable.
3. Automatic control panel and automatic loading switch: Freestanding control cabinet with ATS and automatic start control function available form us. It's easy to operate and suitable for the central control of electric equipment.
A. National grid power and self-generated power can be switched freely by ATS with protection.
Other Specification
Payment: TT(30%+70%), TT30%+LC 70%, LC%
Installation service provided if you need
Inspection: 100% inspection before shipment in person or third party
| Model Number | LHNG200 |
| Brand Name | Lvhuan |
| Rated Power | 200KW/250kva |
| Rated Speed | 1000 /1500rpm |
| Rated Frequency | 50 Hz |
| Rated Voltage | 220v / 380V |
| Phase | AC 3 phase 4 wire |
| Starting system | 24V electric motor |
| Cooling method | Circulating water cooling |
| Lubricant method | pressure and splash |
| Power Factor | 0.8 lagging |
| Voltage Stability | ≤±2% |
| Voltage Transient | ≤±10% |
| Voltage Stable time | ≤1 s |
| Cylinder No., diameters and stroke | 12 pcs 135mm, 150mm |
| Voltage regulation mode | automatic |
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
