1600Hz Electronic DG Sets Test Load Bank
1.Product Introduction

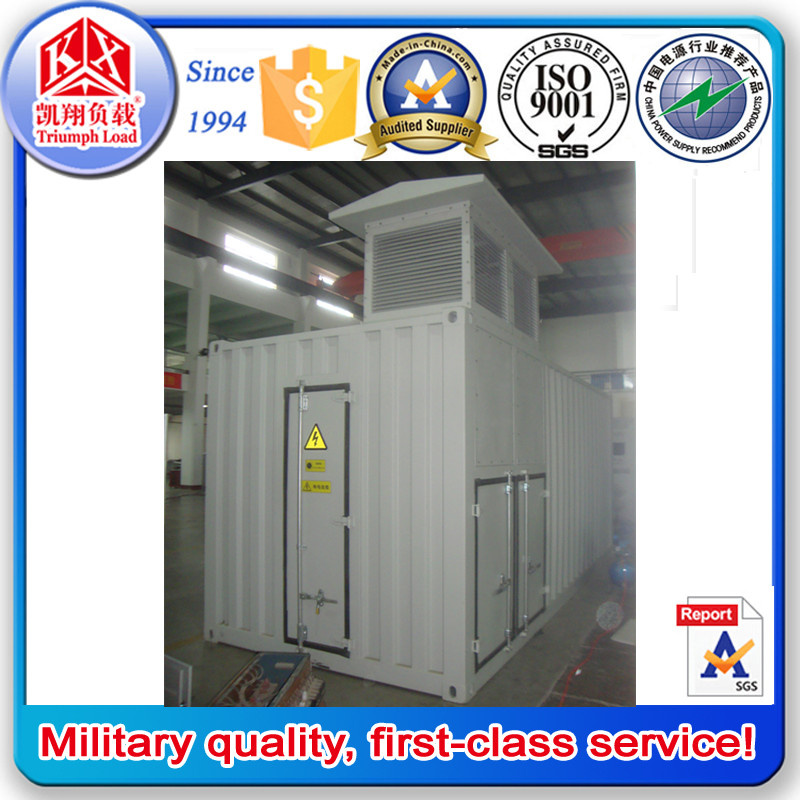

1600Hz Electronic DG Sets Test Load Bank
It is composed of outdoor resistor-inductance AC load bank,data collection system,electric control module,thermal module,control part etc.It can accurately detect Marine generator output power and load capacity,and assist shipyard in acceptance of vessel,mooring test,sea trial,load test,static voltage characteristic test, speed characteristic test,overload protection test,reverse power and reverse current protection test,and parallel operation test etc.
2.1600Hz Electronic DG Sets Test Load Bank Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
3.1600Hz Electronic DG Sets Test Load Bank Technical Specifications
Technical parameter |
AC380-800KVA-RL |
Rated voltage /Frequency | AC Three-phase three-wire 380V,1600Hz |
Rated Capacity | 800KVA |
Load Power | Resistive power:400KW Inductive power:400Kvar |
Stepping | Resistive Load:1,2,2,5,10,10,20,50,100,200, 10steps Indudctive Load:1,2,2,5,10,10,20,50,100,200, 10steps |
Power factor | 0.8~1 |
Load Tolerance(each step) | ±5% |
Load Tolerance(overall) | ±3% |
Display Precision | 0.5 class |
Control Power Supply | External AC three-phase four-wire 380V/50Hz |
Wire Connection | Load power supply input--Copper bar Control power supply input--Aviation connector/copper bar When 400V,angle connection;when 690V,star connection,manual conversion |
Insulation grade | F class |
Duty cycle | Continuous |
Cooling | Forced air cooling, Horizontal inlet air, Vertical cooling |
Transportation | Hoisting, there are lifting lug in top of casing and casters in bottom of load bank |
Casing Color | Grey(RAL7035) |
Dimension | 6058*2438*2591mm |
Weight | 8000Kg |
Operating Environment Parameter |
Ambient Temperature | -10ºC~+50ºC |
Relative Humidity | ≤95% |
Altitude | ≤2500 meters |
Atmospheric Pressure | 86~106kPa |
Main components brand |
Contactor | Schneider |
Circuit Breaker | Siemens |
Fuse | Delixi |
SCM | Infineon |
Alloy Resistor | Kaixiang |
Data Management Software | Kaixiang |
4.Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
