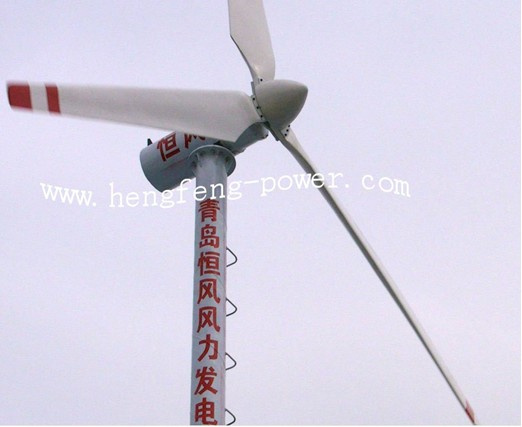

Low speed permanent magnet generator
Low starting torque, High generating efficiency
Designed for minimal maintenance.
Generator horizontal permanent magnet direct drive
Tower: Guy wire tower
Life-span: 20-25 Years
Output voltage of inverter: According to customers' request
Controller: High-performance controller
Inverter: Pur sine wave
Blades: FRP lay-up by hand (3PCS)
Security wind speed: 50 m/s
Start up wind speed: 3 m/s
Work speed: 3-25m/s
Basic technical parameters:
Power: 15KW
Blade diameter: 9.0m
Rated rotor speed: 200r/min
Rated speed: 10m/s
Rated power: 15KW
Max power: 20KW
Output voltage: 380V
Start up wind speed: 3m/s
Work speed: 3-30m/s
Security wind speed: 50m/s
Height of tower: 16m
Top quality except tower: 680kg
Tower type: Guy wire tower
Output controller system: Controller & inverter
System: Off-grid system
|
Rated Power |
15KW |
|
Max Power |
20KW |
|
Diameter of Blades |
9.0m |
|
Rated rotor speed |
200r/m |
|
Rated speed |
12m/s |
|
Output voltage |
380v |
|
Start up wind speed |
3m/s |
|
Work speed |
3-30m/s |
|
Security wind speed |
50m/s |
Tower Specification
|
Height of tower |
18m |
|
Thickness |
8mm |
|
Tower dimeter |
273mm |
|
Flange |
355*355*16(mm) |
|
Material |
Q273 Steel pipe |
Controller
|
Rated wind input power |
15KW |
|
Rated Battery Voltage |
380VDC |
|
Control Mode: |
PLC |
Invertor
|
Rated Output Capacity |
15KW |
|
Rated Ourput Voltage |
110/120/220/230/240/380/420VAC |
Qingdao Hengfeng Wind Power Generator Co., Ltd is one of the leading wind turbine manufacturer in China. Company start at 2004, Workshop covers more than 5000 square meters. It is about 1 hour by car to Qingdao Airport. And 30 minutes to Qingdao port. The traffic is very convenient.
Our company mainly produces 150 watts to 100 kilowatts of small and medium horizontal axis, vertical axis wind turbines, wind and solar power supply system, widely used in off-grid and on-grid power generation system. Produced in strict accordance with the ISO9001 international standard production system management, we have standard production line and automated packaging line, strict product testing system, advanced test equipment, to ensure provide customers the highest quality products and services; All products have achieved CE certification. Hengfeng has unrivalled experience and has built up a global reputation for their robust and reliable performance.
Our products has been export to more than 60 countries, for example, Europe, Middle East, Southeast Asia, Australia etc; Widely applied for island, military, maritime monitor, home use, commercial business and remote area etc, we have integrated design, production, sale and after-sale service. If you are thinking about reducing your domestic energy bills or providing a multi-site energy solution for your business, HENGFENG can help achieve your renewable energy aspirations. We make sure that your wind turbine choice will work productively for you and deliver all-round environmental benefits.
