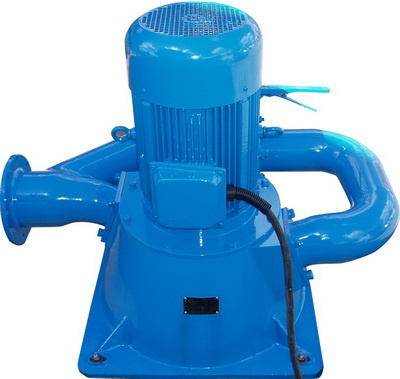

15KW Grid Tie Turgo Turbine Generator
Twin Nozzle T30-15G2
Introducing T30-15G2 a new generation turgo turbine generator that hooks up to your home to help you reduce or eliminate your monthly electricity costs. It's the first compact, user-friendly, all-inclusive water generator designed to provide quiet, clean electricity from water. No need of battery and inverter, T30-15G2 offers a complete water to wire system with integral turgo turbine, generator and valve flow control. Output voltage and frequency are controlled by the electronic load controller(with ballast). As little as 60 to 70 liter per second (l/s) falling 40 meter through a pipe, it produce significant power out. The standard configuration uses one nozzle. This machine is compact, easy to install and requires little maintenance except lubricating the bearing every few months.
|
Item |
Parameters |
|
Model |
T30-15G2 |
|
Water Head Range |
30 – 40 meter |
|
Water Flow Range |
60 – 70 liter/second |
|
Rated Power Output |
15KW |
|
Intended voltage |
Three phase, AC380V~ |
|
Rotary Speed |
1500 rpm |
|
Turbine runner type |
Turgo |
|
Runner diameter |
340 mm |
|
Number of buckets |
14 |
|
Number of nozzles |
1 |
|
Jet diameter |
200 mm |
|
Generator |
Single phase permanent magnet alternator |
|
Power factor |
1.0 |
|
Insulation level |
B/B |
|
Protection level |
IP44 |
|
Temperature |
-25~+50C |
|
Humidity |
≤90% |
|
Safety protection |
Short circuit, over load, Islanding, Grounding fault |
|
Packing material |
Fiberboard |
|
Packing size |
126 x 93 x 98cm |
|
Gross weight |
395kg |
Suzhou Yueniao Machinery & Electronics Imp & Exp Co., Ltd. is one of the pioneer renewable energy business and has been in this field since 2002. We are dedicated exclusively to the business of small wind generator, mini hydroelectric generator and solar energy.
As a manufacturer with advanced technology, we are making in our own workshop the wind turbine from 300W to 20kw with CE certificates. Beside that we are dealing with business of mini hydroelectric generator from 200W up to 60KW and solar panel from 20W to 280W.
We do not claim any of its products to be the best, but we are proud to hear the owners of our products praise them. And that is what makes all the time and effort we spend on our products worthwhile.
Thank you for your support!
