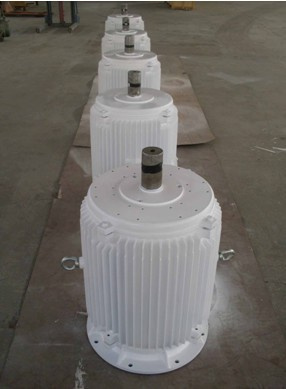

Generator style: Permanent magnetism 3 phase AC
Magnetic steel material: 38SH NdFeB Class of insulation: B
Case material: Cast iron Grade of Protection: IP54
Rated rotate speed: 50RPM
Rated voltage: 220VAC/240VAC/360VAC/380VAC
Weight: 467kg
Start up torque: 22.56Nm
Rated torque at 125rpm: 1267Nm
15KW125rpm 380Vac PMG Test Data |
RPM ( r/min ) | No Load Voltage ( V ) | Load Voltage ( V ) | Load Current (A) | Load Power (W) | Frequency ( Hz ) |
25 | 79.5 | 74.9 | 4.61 | 601 | 3.33 |
50 | 158.6 | 150 | 9.16 | 2380 | 6.67 |
75 | 240.1 | 225.1 | 13.42 | 5240 | 10 |
100 | 320.6 | 299.3 | 17.78 | 9230 | 13.33 |
125 | 401.7 | 385 | 22.4 | 14950 | 16.67 |
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
