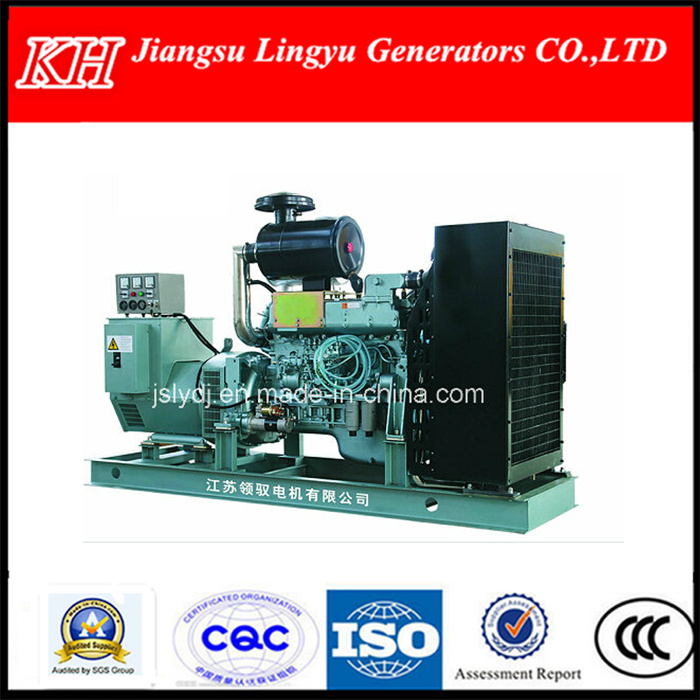

150kw/187.5kVA Electric Starter Hangfa Origin Diesel Generator

Packaging & Delivery


Packaging Detail:	generator standard exporting package
Delivery Detail:	within 5-10working days after the deposit

Specifications

1)manufacturer
2)open type/silent/trailer
3)global warranty
4)CE,ISO,SGS,SONCAP,OEM
5)in stock
Reliable manufacturer !!! CE approved 200KVA-2000KVA generator with Hangfa / Deutz/Ricardo/Lovol/Volvo /MTU/DOOSAN brands

Product Description

The specification of  power generator :
1. power generator powered by Hangfa diesel engines respectively in China.
2. power generator equipped with famous alternators.
3. power generator strict tests before sale.
4. power generator features at low oil consumption, stable performance, easy maintenance, low operation cost, low emission.


Genset model	LY
Type	open/sound proof/weather proof
Genset output power range	40kw-280kw
Rated voltage	220/380V,230/400V,240/415V,120/240V
Frequency	50/60HZ
Power factor	0.8
Rated speed	1500/1800rpm
output type	AC three phase/single phase
Motor	brushless
Frequency	<3%
Frequency at stable state:	<0.5%
Frequency deviation at instantaneous state	≤+10%
Frequency return time	≤3s
Voltage deviation at stable state	≤±1%
Voltage deviation at instantaneous state	≤+20%
Voltage return time	≤4s
Voltage modulation	≤0.3%




diesel genset			diesel engine		alternator
model	power(kW)	power(kVA)	model	power(kW)	model	power(kW)
KH40GF	40	50	WD415.16D	83	KHI50-14	40
KH50GF	50	62.5	WD415.16D	64	KHI75-14	70
KH100GF	100	125	WD415.16D	101	KHI100-14	96
KH100GF	100	125	WD415.24D	115.5	KHI100-14	96
KH120GF	120	150	WD415.24D	128	KHI2014	112
KH120GF	120	150	WD615.64D	134	KHI120-14	112
KH150GF	150	187.5	WD415.24D	152	KHI150-14	144
KH150GF	150	187.5	WD615.68D	192.5	KHI150-14	144
KH200GF	200	250	WD615.68D	210	KHI200-14	180
KH200GF	200	250	WD615.46D	222	KHI200-14	180
KH240GF	240	300	WD615.57D	242	KHI240-14	220
KH240GF	240	300	WD615.57D	262	KHI240-14	220
KH250GF	250	312.5	D1242D	292	KHI250-14	240
KH280GF	280	350	D1242D	311	KHI280-14	250
KH100GF	100	125	WD615.64D	103	KHI100-14	96
KH150GF	150	187.5	WD615.64D	159.5	KHI150-14	144


The specification of  Hangfa diesel engine:


Model	WD415.16D, WD415.24D, WD615.68D, WD615.46D, WD615.57D, D1242D , WD615.64D ,WD615.64D,
Cooling Method	water cooled
Rotating speed	1500/1800rpm
Governor system	electrical or mechanical governor
Aspiration mode	natural aspirated or turbocharged
Starting method	12/24V DC electric starting



The specification of alternator:



Brand	Stamford, Leroy semor, Maraton etc.
Regulator	AVR automatic voltage regulating
Excite type	pret or shunt
Connecting type	3PH star, 3PH-DELTA
Steady frequency change	0-5%
No load voltage	≥95%-105
Steady voltage	≤±1
Insulation degree	H degree
Exclosure degree	IP23

power generator features:
1.Hangfa  industrial diesel engine
2. Radiator 40°C max,fans are driven by belt, with safety guard
3. Choice of manual/auto and AMF control panels and protection systems
4. Digital auto-start panel
5. Anti Vibration Suspension Absorber
6. Dry type air filter, fuel filter, oil filter
7. Mould case circuit breaker
8. 24V DC start motor and storage battery
9. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
power generator use of safety norms
1.Operators sould be familiar with the operation of generating units, operating methods, and all control bodies, manual valves, stopping body position.
2.In the engine room or near the unit, must hoisting of danger notices warning signs associated personnel:
(1)Uints exist electric shocks danger;
(2)Uints exist scald danger;
(3)Units exist winding, and collision dangers;
3.To avoid fuel, lubricants, and other fire, engine room No smoking.
4.Engine room or other nearest shouldmaintain an appropriate level of fire service equipment (proposed CO2 fire extinguishers).
5.Grounding the entire unit reliably, and meet the applicable requirements of neutral grounding.
6.Above and around the unit should not be unrelated equipment, obstructions and dangerous goods, should be keeping the floor dry and clean without oil.
7.Units will be run by noise, suggest that the staff wear suitable protective equipment, such as earmuffs vehicles.
8.Before any maintenance, must cut off all power lines, particularly the Dcpower supply circuit (remove the battery's anode and cathode), the warning signs must also note "is maintenance", and should have another concern, especially in the narrow region maintenance at the same time should be nitified stop all of this unit operation.
9.To the reliable operation of unit, the settings of unit voltage, frequency, speed and other related parameters and unit controller set up should not be arbitrarily changed except the specialized operators.
10.Units are valuable equipment, for personal safety, operation stability to light, no illegal operation and drink operation.
Plywood packing case,fumigation-free  .
Shipping :Not more than 7days since get full payment in Shanghai Port .
Best quality  Best service with Competitive price
Start your internet business with us here
The best power support for your future life

? Guarantee/Warranty And After-sale Service

ALL ANSWER IS "YES"!!!!

? one year guarantee for whole machine except of tube and lens
? 24 hours technical support by e-mail
? calling or door-to-door service

? use-friendly English software,user manual and detailed Videos/CD
