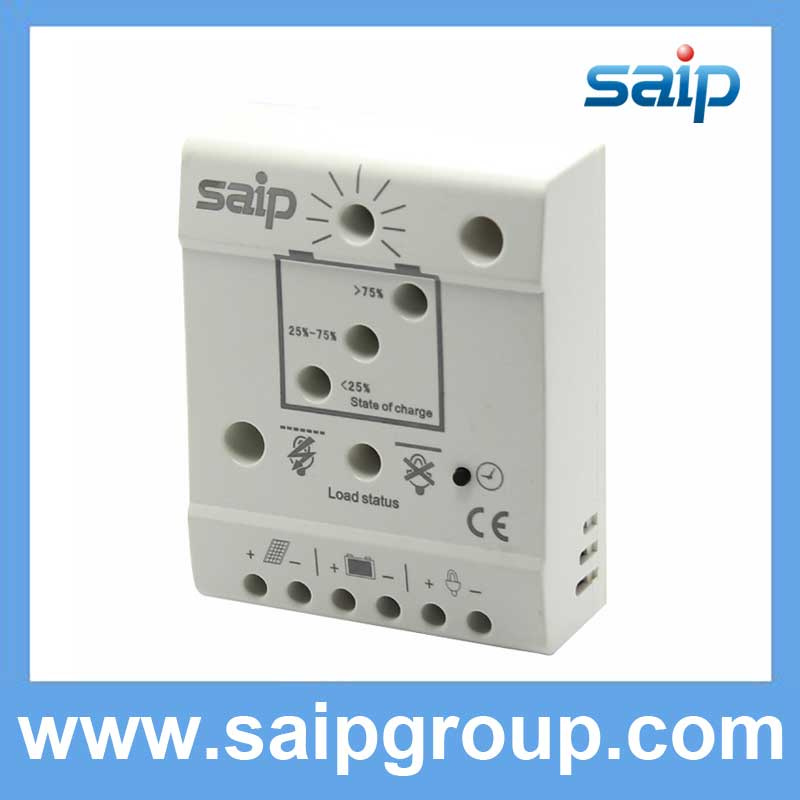

12V/24V MPPT Hybrid Solar Charge Controller (SMLNL05)

12V/24V MPPT Hybrid Solar Charge Controller (SMLNL05)
Solar Charge Controller, smart solar charge controller 15A 12/24V



Specifications:
~~~~~~~~~~~
1.12/24V

2. OEM service

3. CE&Rohs



Function:
~~~~~~
--One programmable nightlight function

--PWM regulation (series type)

--Integrated temperature compensation

--Three-state charging method

--SOC and voltage controlled LVD

--Solid-state circuit and load protection

--Reverse polarity protection

--Fully electronically protected



Introduction:
~~~~~~~~~~
--The SMLNL series is a sophisticated solar charge controller family for low cost applications.

--The electronic circuit is equipped with a microcontroller that provides high-efficiency charging technology together with a number of outstanding status display, warning and safety functions.

--The SMLNL series comes with two nightlight function mode. One of them is programmable that switch on the load output for a adjustable number of hours from dusk.

--The nightlight function is overridden by a battery deep discharge protection to avoid excessive discharge and damage of the battery.

--The temperature-compensated three-state PWM charging method (boost-equalize-float) is now ajustable to sealed and vented lead-acid batteries

--The low voltage disconnect function can be controlled either by SOC or by voltage.

--The battery status, charging status and load status are clearly indicated by 5 LEDs
