| TYPE | Output | Current(A) | Pole Number | Sychronous Speed(r.p.m) |
| KVA | KW |
| Single phase 230V 50Hz/1500r/min |
| ST-2 | 2 | 2 | 8.7 | 4 | 1500 |
| ST-3 | 3 | 3 | 13 | 4 | 1500 |
| ST-5 | 5 | 5 | 21.8 | 4 | 1500 |
| ST-7.5 | 7.5 | 7.5 | 32.6 | 4 | 1500 |
| ST-10 | 10 | 10 | 43.3 | 4 | 1500 |
| ST-12 | 12 | 12 | 52.2 | 4 | 1500 |
| ST-15 | 15 | 15 | 65.3 | 4 | 1500 |
| ST-20 | 20 | 20 | 87 | 4 | 1500 |
| Three phase 400V 50Hz/1500r/min |
| STC-3 | 3 | 3.8 | 5.4 | 4 | 1500 |
| STC-5 | 5 | 6.3 | 9 | 4 | 1500 |
| STC-7.5 | 7.5 | 9.4 | 13.5 | 4 | 1500 |
| STC-10 | 10 | 12.5 | 18.1 | 4 | 1500 |
| STC-12 | 12 | 15 | 21.7 | 4 | 1500 |
| STC-15 | 15 | 18.8 | 27.1 | 4 | 1500 |
| STC-20 | 20 | 25 | 36.1 | 4 | 1500 |
| STC-30 | 30 | 37.5 | 54.1 | 4 | 1500 |
| STC-40 | 40 | 50 | 72.2 | 4 | 1500 |
| STC-50 | 50 | 62.5 | 90.2 | 4 | 1500 |

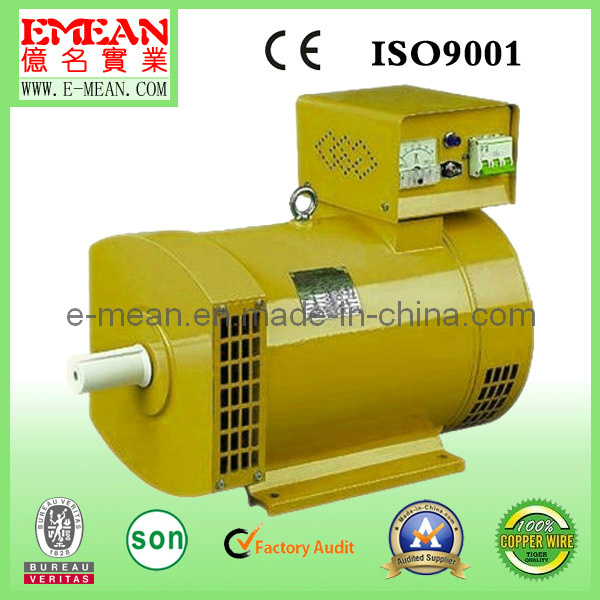

Place of Origin: Fujian, China (Mainland)
Brand Name: EMEAN
Model Number: STC-12
Output Type: AC Three Phase
Speed: 1500r. P. M, 1500rpm at 50Hz
Frequency: 50Hz
Rated Power: 12KW
Rated Voltage: 400V
Rated Current: 21.7A
Warranty: 1 year
Certificate: CE, ISO, SGS, SONCAP
Winding: Copper wire
Housing: Cast iron
Pole: 4 poles
Color: As requst
Function: Alternators for generators
Application: Standby power for variety of application
This series generators are to be used in town, countryside, worksites, mountain and pasture as electric power source for lighting purpose, it can also he used as reserved power source for emergent case using.
The generators are of dripproof with rotary field type and adopt harmonic excitation system, easy operation and maintenance.
The generators are three-phase, four-wire type, adopting star connection with neutral point. The rated line voltage is 400V, phase voltage 230V, frequency 50Hz. Power factor 0.8(lag). We can provide 60Hz and the other voltage's generator according to the customer's request.
They can be coupled with a prime mover directly or through V-belt making right or reverse continuous rotation at the rated speed. When the rotation speed of prime mover changs 3% or so and load varies in the range of 0~100% cos j 0.8~1.0, the generators offer constant voltage, when sudden change (increase or decrease) of load, the generator will soon return to their normal working state, at the same time, without any starting device the generator can directly start an unloaded squirrel cage induction motor.
Professional generator manufactrurer with R&D capacity
Reliable quality, reasonable price, desirable service
Tell us your demand, provide what you want
Contact us now, let's make a deal.........
EMEAN LIGHT UP YOUR LIFE!
Fuzhou Emean Electric Machinery Co., Ltd. is one of the biggest enterprises, lies in "China Electrical Machinery and Appliances City"--Fuan. EMEAN is a private enterprise established in 2003, which is a comprehensive electrical machinery manufacturing company integrating product designs, production, marketing and service.
Rely on scientific and technological development, we continue to provide users high-tech products, which is our consistent pursuit. On the basis of absorbing the foreign advanced technology, we have already fetched in 10 lines advanced international machinery production. The main products manufactured by our company consist of more than 10 series, over 100 types, involving generators, diesel generating sets, gasoline generating sets and concrete cutter, of which all of our products have been passed the national attestation CCC, CE certificate, Nigeria Soncap and EPA certificate.
EMEAN is a young enterprise, but she owns the fresh and great-hearted blood, which make her more charmful. "Quality assurance, user first" is the agreement of EMEAN executives. Communicate with the domestic industry, scientific research institutions exchange and cooperation so as to improving the quality, such as: Design and production, commissioning and maintenance. Then occupy the market, and expand the scale of the company. We have been moving forward to a more prosperous achievement under the fierce competition.
Today, EMEAN staff pursue the guidelines--"aggressive, realistic, strict and unity" to blaze new trails. We make technology as the core, quality as life and users to God, dedicated to provide you with the highest & cost-effective products and meticulous after-sales service in order to shape a bright future.
