68kw~504kw Volvo diesel generator
1, Volvo Series Engine
Volvo, the largest industrial enterprise in Sweden with more than 120 years history, is an engine manufacturer with the longest history in the world. Up to the present, the engine field exceeds 1 million sets, which have been widely used in large and small automobiles, heavy-duty trucks, engineering machineries and ships. Moreover, they are the ideal drive force of power generation sets. Volvo engines have high load capability as well as fast and reliable cold start performance.
2, Alternator
1)Optional Brand: Engga, Stamford, Marathon, leroy somer ^
2)The standard generator set matches with Engga brand alternator, and customer also can choose other brands.
3)Standard AVR, AC three phase, 12 reconnect copper leads, single bearing or double bearing, self-exciting system and permanent magnet generator.
4)IP21-23 protection grade, insulation system is H class, and stators are wound to 2/3 pitch.
5)Manufacture standards: GB755, BS5000, VDE0530, NEMAMG1-22, IEC34, and ASB59
3, Digital Control Panel
Controller Brand: Smartgen
Control Panel: English interface, LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.
4, Warranty and Maintenance
1) Do the full power load test for five hours before package.
2) One year or 1000 working hours, whichever comes first, global warranty for Volvo.
3) After expiration, we provide spare parts maintenance with low price.

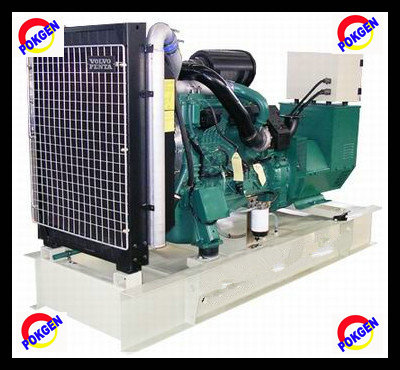

68kw~504kw Volvo diesel generator
|
Genset Technical Data: |
|
Gensets model |
POKV125 |
|
Prime power |
100KW/125kVA |
|
Stangby power |
110KW |
|
Rated speed |
1500RPM |
|
Output frequency |
50Hz |
|
Power Factor |
0.8(lagging) |
|
Phase |
3 |
|
Rated voltage |
380/220V |
|
Dimensions(mm) (L× W× H) |
2080*900*1450 |
|
Genset Weight(kg) |
1250 |
|
Specification of diesel engine: |
|
Engine brand |
Volvo |
|
Engine model |
TAD531GE |
|
Number of Cylinders |
4 |
|
Cylinder arrangement |
Vertical in-line |
|
Cycle |
Four stroke |
|
Aspiration |
Turbocharged |
|
Fuel System |
Direct Injection Fuel System, Bosch Pump |
|
Bore× Stroke (mm× mm) |
108 x 130 |
|
Displacement (Liter) |
4.76 |
|
Compression Ratio |
18.0: 1 |
|
Speed Governor |
Heinzman Mechanical Governor |
|
Cooling System |
Forced Water Cooling Cycle |
|
Speed Stability (%) |
≤ 1% |
|
Total lubrication system capacity (L) |
13 |
|
Fuel Consumption at 100% Load (g/kwh) |
218 |
|
Starting Method |
DC24V Electrical starting |
