10kw wind generator(10KW wind turbine)

1) Alluminum Alloy material, lighter and beautiful
2) CE &ISO9001 approved
3) with slip ring and carbon brush to avoid twist

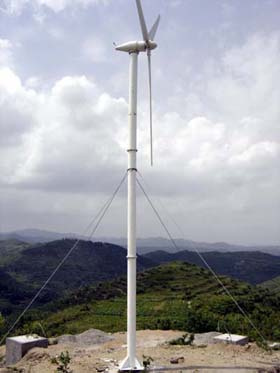

4) guy wired tower or free stand tower according the clients' requirement.
5) has exported to at least 80countries and areas.
FD8.0-10KW type
A. diameter of the wind wheel: 8.0m
B. method of the adjustment: Auto adjust to the face wind angle.
C. Rated speed: 10m/s
D. Rated voltage: 380v
E. Rated power: 10kw
F. Generator: 3 phases, permanent-magnet generator
G. Rated rolling speed: 160 R/ min
H. Stop wind speed: 25m/s
I. Start up wind speed: 3m/s,
J. Over wind speed protection: Self adjust itself to the facing wind angle and do not exceed the rated rolling speed.
K. Method of change the direction: Inspected by anemoscope and dogvane. The rolling speed controller outputs the deviating signal.
L. Height of the tower: 12m
M. Stop the machine: Voltage 450v, temperature 100 degree Celsius, wind speed over 25metre/ second, stop automatically.
N. Program display: Controller display wind speed, voltage, current and alarm position. The batteries over voltage or lack of voltage, over wind speed and communication status.
O. untwisting the wire automatically: When the wind generator continue to roll above 3 rounds, at auto stop status it will untwisting the wire automatically itself to keep it ok.
P. Installation angle: When the wind generator is working, the tower should be perpendicular to the ground, allowing less than 0.5-degree deviation to prevent accidents caused by the wind generator fell down.
Q. The height of Pulling ring from the ground: The ring should be fixed on 8 metres high from the ground to prevent when the wind generator is working, the steel line will prevent the blades to work, even damage the blades.
