Products:
10- 50 - 100 - 200 - 500 - 1000KW range CNG(gas) and HL(liquefied petroleum gas)series gas engine, air conditioning units, generator sets, stationary power units developed by ourselves has a good market. Emissions reach EURO standards.
Company:
Early investment 260 million yuan, with a engine block production line, a cylinder head production line, two assembly lines, a casting production line, acquired ISO9001 & TS16949 quality certification, production capacity reaching 100, 000 units per year.
Research center:
We established R & D center, combined with the Tsinghua University and other scientific research institutes, Size of 4000 square meters, invested 30 million yuan (RMB), and create a "Chinese Control Technology Co., Ltd. ", for the development of gas engine, generator and electric Control System Development

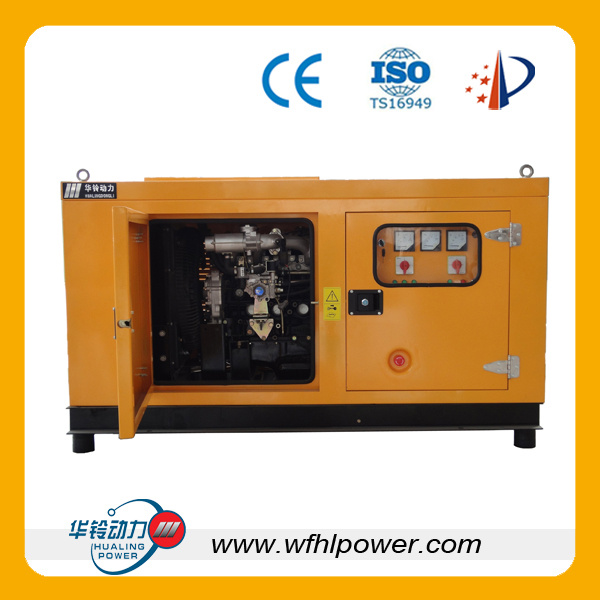

HUALING POWER GAS GENERATOR SPECIFITIONS |
Air pressure 100kpa ,
ambitent temperature 25c
and humid is 30%,
the engine can work 12hours
and work efficiary can up to 90% |
Generator Model |
HL20GF |
HL24GF |
HL25GF |
HL50GF |
HL64GF |
HL75GF |
HL90GF |
HL100GF |
HL120GF |
HL132GF |
HL150GF |
HL165GF |
HL180GF |
Rated Power kw |
20 |
24 |
25 |
50 |
64 |
75 |
90 |
100 |
120 |
132 |
150 |
165 |
180 |
Engine Model |
HL493CNG(ISUZU) |
HL6102CNG-D(6BT)(CUMMINS) |
HL6126CNG-D. (STEYR) |
Type |
Four stroke In-line four-cylinder Water cooling Electric ignition Doing-like thin wall chromium plating cylinder liner |
Four stroke In-line six-cylinder Water cooling Booster Intercooler Single Poine Electronic Fuel Injection Doing-like thin wall chrome-plating cylinder liner |
Four stroke In-line six-cylinder Water cooling Booster Intercooler Single Poine Electronic Fuel Injection Doing-like thin wall chrome-plating cylinder liner |
Rated power kw |
24 |
28 |
30 |
60 |
78 |
90 |
110 |
120 |
144 |
158 |
180 |
198 |
216 |
Rated speed r/min |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
Idle r/min |
800± 50 |
Power factor |
0.8 |
m3/kw. hHeat consumption |
≤ 0.22 |
Excitation Mode of the power generator |
Brushless |
Oil consumption |
≤ 1.36g/KW@ h |
Grounding of the power generator |
Three Phase Four Wires |
Front row of turbinetemperature |
≤ 650c |
Insulation class |
F |
Rated Voltage |
400V |
Rated Frequency |
50Hz |
Voltage |
Regulation of steady-state ≤ ± % Regulation of the transient≤ ± 20% Stabilization time ≤ ± 1.5s Volatility ≤ ± 0.8% |
Frequency |
Regulation of steady-state 0~5% Regulation of the transient ≤ ± 10% Stabilization time ≤ ± 10s Volatility ≤ ± 1% |
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.
The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.
We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.
Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
