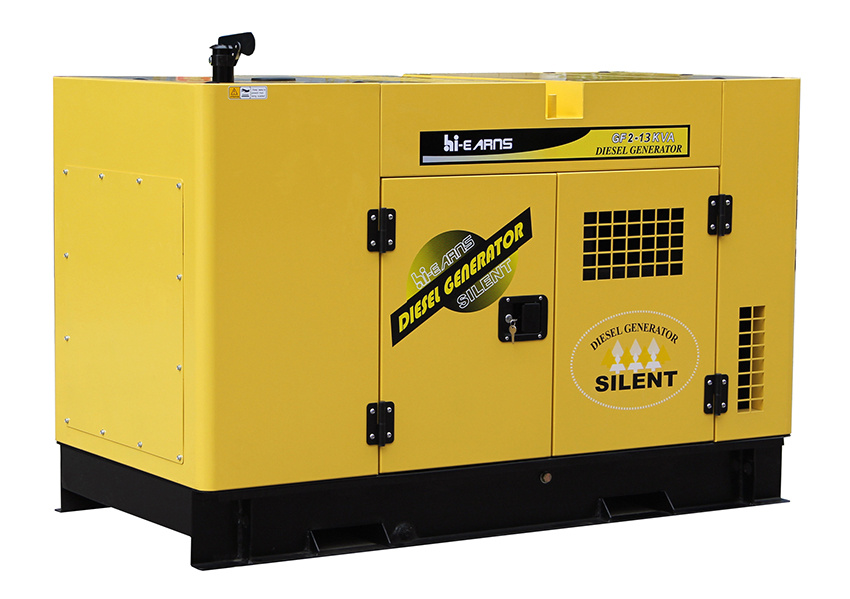

10kw 55db Super Silent Diesel Power Generator
| Price: |
US $ 2600-2650/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,D/P |
| ENGINE DATA |
| Engine Type | Quanchai Engine QC480D. Four stroke,Water-cooled, Direct line |
| Rated RPM (r/min) | 1800rpm |
| Cooling System | Forced Water-cooled |
| Fuel Consumption (≤g/kw.h) | ≤249 |
| Cylinder Number | 4 |
| Bore×Stroke (mm) | 80×90 |
| Displacement (L) | 1.809 |
| Start Method | Electric Start |
| Rated Speed Regulation (g/kW·h) | ≤5 |
| Combustion Chamber Type | Direct Injection |
| Add Oil Capacity | 4L |
| ALTERNATOR DATA |
| Alternator Data |
| Power Factor | 0.8 Lag |
| Insulation Class | H |
| Lubricating System | Pressure,Split,Complex |
| Protection Grade | IP23 |
| Exciter Type | Brushless,self-exciting |
| Altitude | ≤1000m |
| Environment Temperature (ºC) | 40 |
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting |
| Intake Type | Natually-Aspirated |
| Rated Speed Regulation % | ≤±1% |
| Phase | 3 |
| Dimension & Weight |
| Soundproof Type |
| Overall Size :1.65(m)×0.85(m)×1.02(m) |
| Weight :620kg |
Our Advantages:
1. Reliable Performance:
Reliable Performance is the major advantage of Hi-earns products, and this reliability is based on the outstanding design in every aspect and strict Q.C. System.
2. Customer First:
We devote ourselves to develop products to meet customers' requirements .Our engineer develop and design new products for customers.
3. Technical Support and Service:our engineer team will solve your technical problems within 48 hours.
4. Strict test process before ex-factory :
Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.
5. Certification: CE,ISO,,TUV,GS,SONCAP etc.
| Prod Model: |
GF2-10KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Super Silent: |
55db |
| Alternator: |
Brushless Alternator |
| Stroke: |
Four Stroke |
| Type: |
Self-Starting Diesel Generator |
| Cooling Method: |
Water Cooling |
| Installation Method: |
Fixed |
| Output Type: |
AC Three Phase |
