100W Small Vertical Wind Turbine/Wind Power Generator
Price: |
US $ 300-320/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
2/Piece |
Pay Type: |
L/C,T/T,Money Gram,Western Union |

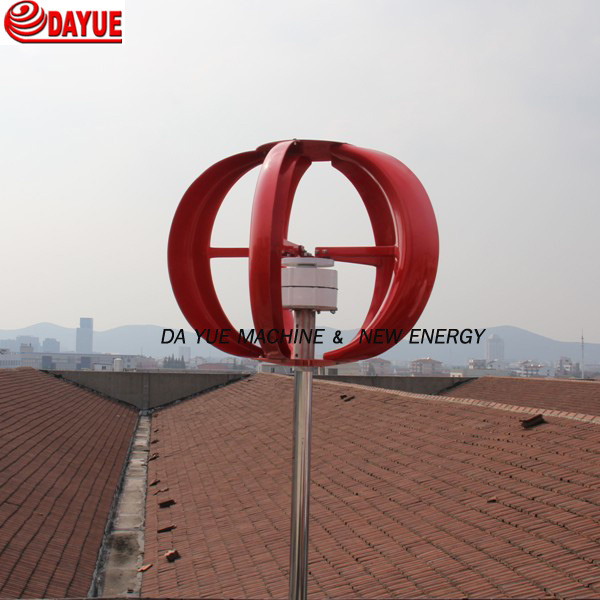

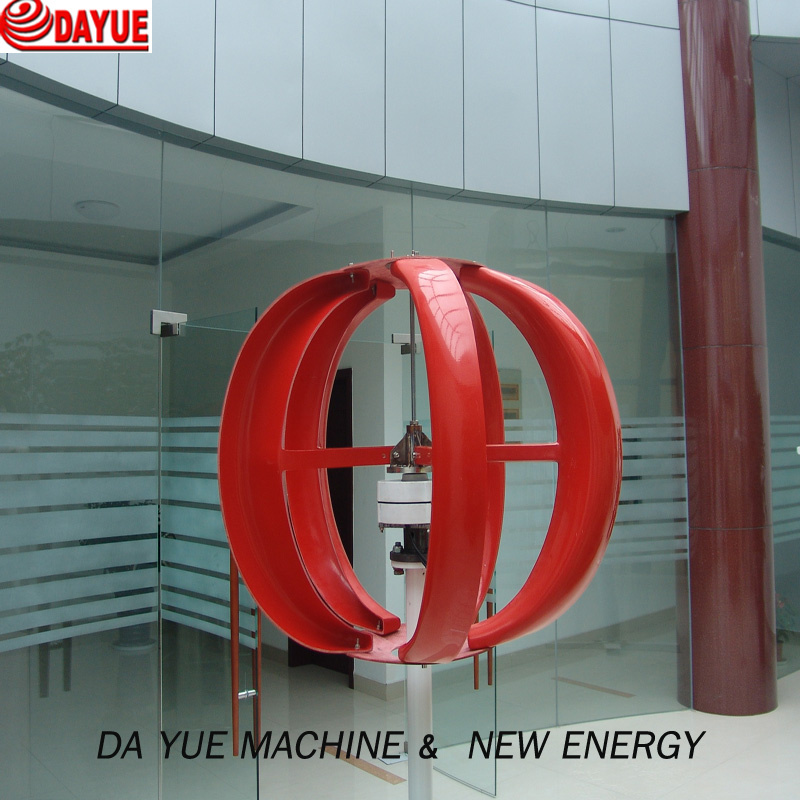

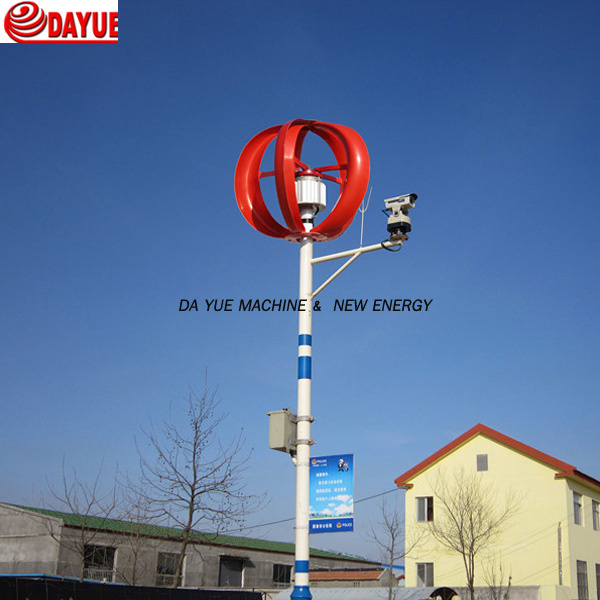

100w vertical wind generator
Product Features:
1.Low start-up speed,high wind power utilization, light,cute, low vibration.
2.Human-friendly design,easy to install and maintain.
4.Blades using reinforced glass fiber, helped with optimized structure and aerodynamic shape, it enhanced wind power coefficient and power generating capacity.
5.Using patented permanent magnet generator and special stator, it effectively reduces torque resistance and guarantees the stability .
Model |
FDV-100
|
FDV-200 |
FDV-300
|
Rated power |
100W |
200W |
300W |
Max power |
130W |
220W |
310W |
Rated voltage |
12/24V |
12/24V |
12/24V |
Start-up speed |
1.3m/s |
1.3m/s |
1.3m/s |
Rated wind speed |
10m/s |
11.5m/s |
13m/s |
Survival wind speed |
45m/s |
45m/s |
45m/s |
Top NW |
11.5kg |
13kg |
16kg |
Gross weight |
16kg |
18kg |
20kg |
box size |
43x32x64cm |
Wheel diameter |
0.6m |
0.8m |
0.8m |
Number of blades |
5 |
Blades material |
Reinforced glass fiber |
generator |
Three phase ac permanent magnet generator |
Control system |
Electronic magnet |
lubrication |
Lubrication grease |
Working temperature |
-40degree-80degree |
|
|
|
|
Prod Model: |
FDV-100 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Rated Power: |
100W |
Voltage: |
12V or 24V |
Blade Number: |
5PCS |
Gross Weight: |
23kg |
Wheel Diameter: |
0.6m |
Blades Material: |
Reinforced Glass Fiber |
Generator: |
Three Phase AC Permanent Magnet Generator |
Box Size: |
43X32X64cm |
Top Nw: |
11.5kg |
Max Power: |
130W |
Rotating Shaft: |
Vertical |
Number Of Blade: |
Multiple-Blade |
Stress Way Of Blade: |
Resistance |
Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.
The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:
- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)
-JD series Horizontal Axis Variable Pitch Blades Wind Turbine (2KW- 30KW)
-FDV series Vertical Axis Wind Turbine (300W-5KW)
-Wind & Solar Hybrid Street Light System (500W and 800W)
-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)
These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries
In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;
There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.
If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
