Home Generator Products Variable Pitch Blades Wind Turbine/ Wind Power Generator (JD-2KW)

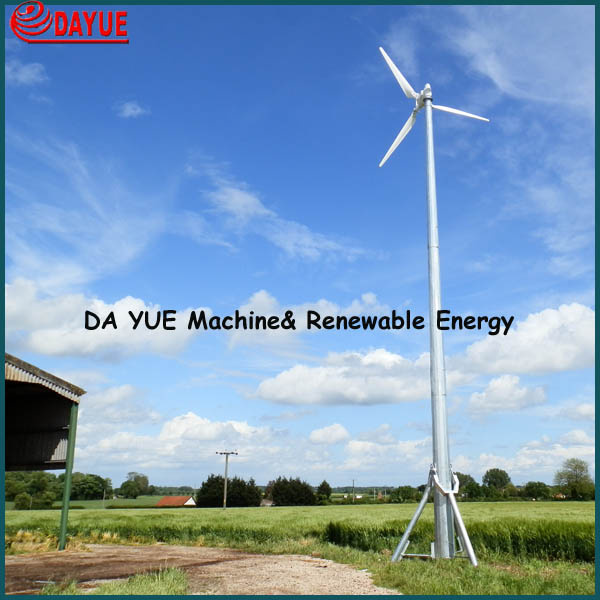

Variable Pitch Blades Wind Turbine/ Wind Power Generator (JD-2KW)

Variable Pitch Blades Wind Turbine/ Wind Power Generator (JD-2KW)
Price: US $ 2080-3200/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
Variable Pitch Blades Wind Turbine System (JD-2KW):


The variable pitch blades wind turbine, newly developed by Dayue machine & Renewable Energy, is a patented product and pioneer in domestic.
1,The self-developed centrifugal pitch controlled mechanism of Wind turbine adjusts blade pitch following wind rotor rotating speed, and keep wind turbine at rated rotating speed.
2,This wind turbine has a stable output power and safe running and is maintenance free. Wind rotor never goes to over speed even encounter to variable wind speed and strong gale.

3) There're also few kinds of tower for selection,Tapered tower, Lattice Tower, hydraulic tower ,  you can choose the best one against the purchasing cost budget and the installation site condition
4) All towers will be with a working station fence , the technicians can stand at the working station for making installation and commissioning for this turbine

5) On-grid and off-grid system application for different countries demanding

If you choose the off-grid system , we can equipment with a dual powers inverter with this turbine, so that it can use the utility grid power and wind power to together supply your home , the wind power as main power and utility grid power as standby power ,its voltage output can be designed against users requirements

6)The on-grid system is equipped with Sungrow controller and inverter, which are obtained the CE , TUV ,G83 certificate to ensure you can easily get the installation permission from your government ,The on-grid voltage can be single phase 240Vac or three phase 380-415Vac

7) Low noise (Under 55db), never effect people working and rest

JD-2KW



Technical Parameter:


Numbers of Blade3 pcs
Material of BladeFRP Complex Resin
Diameter of Wind Rotor3.6m
Start (out-in) wind speed3m/s
Working wind speed3-22m/s
Rated speed400 rpm
Security wind speed45m/s
Wind energy ratio40%
GeneratorThree phase Permanent magnet generator
Generator rated power2000w
Max output power2800w
Charging voltage120Vdc
Output voltage of InverterSingle phase 220-240Vac/50HZ 110-130Vac /60HZ
Stop methodStop by tail-vane yawing 60-90 0
Wind direction tracking methodBy tail-vane mechanical adjustment
Speed adjustment methodBy tail-vane mechanical adjustment
Protect methodIntelligent control full-automatically
Tower typePainting /Galvanized guyed wires tower
Tower height & weight9m/ 120kgs
Charging controlIntelligent control full-automatically
Inverter power supplyPure sine wave
Battery Matching (for off-grid wind system)10pcs 12Vdc-150/200AH Lead-acid or colloid batteries
Grid tied inverter matching (For on-grid wind system)Input: 240Vdc Output: 240Vac single phase Recommend : SMA WB2500 (one pcs)
Time of charging (off-grid type)About   16 hours
Annual power generationAbout 5000 KWH ( annual average wind speed above 5m/s )



PS: if you want to know  clearly  and completely   the vertical wind turbine each details, designing , material, even the bolts mdels, plz click the  "view video " buttom below the main picture, then you will learn  the JD-2KW wind turbine completely installing process  and working situation from this video .


Prod Model: JD-2KW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power: 2kw
Annual Power Generation (Min. /Max. ): 2000kwh/6000kwh
Speed Regulation Method: by Centrifigual Pitch Blades System
Blades Material@ Length: FRP @ 2 M
Diameter Of Wind Rotor: 3.6m
Rated Speed: 400 Rpm
Number Of Blade: Three Blade
Rotating Shaft: Horizontal
Stress Way Of Blade: Lift Force
Phase: 3 Phase
Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.

The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:

- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)

-JD series Horizontal Axis Variable Pitch Blades Wind Turbine (2KW- 30KW)

-FDV series Vertical Axis Wind Turbine (300W-5KW)

-Wind & Solar Hybrid Street Light System (500W and 800W)

-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)

These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries

In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;

There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.

If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
