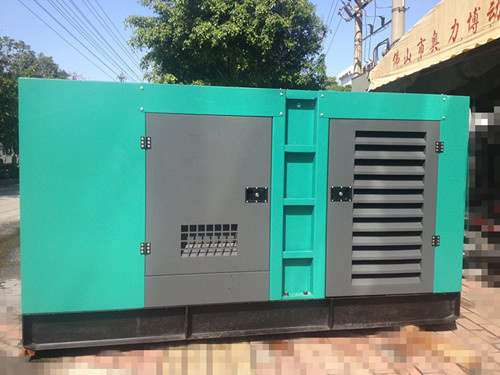

100kVA Soundproof Diesel Generator with Cummins Brand Engine
| Price: |
US $ 10200/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Description
1.International Warranty Service
2. Short delivery time
3. With ISO9001 SGS & CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator or Chinese alternator
6. Perfect after-service network
7. Both 50Hz and 60Hz
| Model No. | STANDBY POWER | PRIME POWER | ENGINE | ALTERNATOR | CONTROLLER |
| KVA | KW | KVA | KW |
| OCL-110 | 110 | 88 | 100 | 80 | 6BT5.9-G2 | LTG274C1 | 6110 |
230/400VAC,50Hz,0.8PF (lag),Three phase four wires Generator set specifications| Governor Class | ISO8528 G3 |
| Potential Drop | 1% |
| Steady Voltage Regulation | 1% |
| Frequency Drop | Synchronous(0%) |
| Steady-state Frequency | 0.25% |
| R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
| Fuel Consumption Rate ,g/kw.h(L/hr) | 215(22) |
| Starting Battery Capacity ,A/hrhhr | 80*2 |
| Total Coolant Capacity ,L | 27 |
| Fuel Capacity (base tank),L | N/A |
Engine Data| Model | 6BT5.9-G2 |
| Type | In-line 6 Cylinder,4 Cycle |
| Displacement ,L | 5.9 |
| Compression Ration | 17.5:1 |
| Aspiration | Turbo |
| Fuel System | A/AD type Fuel Pump,EFC Electronic Governor |
| Bore*Stroke(mm) | 102*120 |
| Rated Speed ,rpm | 1500 |
| Governor Type | Electronic |
| Starting Voltage | 24V ,Negative ground |
| Battery Charging System | 24V 35A |
| Lubricant Capacity ,L | 16.4 |
| Coolant Capacity, L | 27 |
Alternator Data| Protection Class | IP21 |
| Insulation Class | Class H |
| Temperature Rise in Standard | 125 ºC(When Ambient Temp.is 40 ºC) |
| Excitation Type | Brushless & Self-excited |
| Waveform Distortion | No load<1.5% Non-Distorting balanced linear load<5% |
| Telephone Interference(TIF) | <50 |
| Telephone Interference(THF) | <2% |
OPTIONAL ACCESSORIES/SPARE PARTS:
-Sound and water proof enclosure
-Trailer/Movable power station
-Battery charger
-Jacket water heater
-Oil heater
-Diesel oil heater
-Automatic transfer switches(ATS) & paralleling system
-Extra fuel tank
-Fuel water separator
Warranty:
1-One year or 1000 working hours whichever comes first!
2-Free spear parts offer in warranty period, if confirm manufacturing defect.
3-Free professional technical service support.
Location: Located in Foshan City , quite near Guangzhou, welcome to our factory to check the products and the quality.
1.From Guangzhou Baiyun International airport to Oripo:
a.It takes about 1 hour by car/taxi,it is about 58 kilometer;
b.Or take the subway from JiChangNan station to HanXiChangLong Station(you need to transfer at the TiYuXiLu station to PanYu direction), then take a taxi to Oripo, it will take about 1.5 hour.
2.From Canton fair complex to Oripo:
a. It takes about 30 minutes by car / taxi, it is about 32 kilometer;
b. Take the subway from XinGangDong Station / PaZhou station to HanXiChangLong Station, then take a taxi to Oripo, It will take about 1 hour.
Company Introduction
Established in 1998, Foshan Oripo Power Engineering Co.,Ltd is one of the leading worldwide manufactories of diesel generator set, with over 2000 square meters factory and nearly 400 staffs. Headquarter is located in Foshan city, adjacent to Guangzhou which is the trade centre of Guangdong province, other 17 branches all over the domestic and oversea market.
We are mainly deals in different famous brand diesel generator sets , soundproof and rainproof canopy, movable power station, tower station, ATS cabinet. All generator set can match with different brand alternators, such as, LEATECK, Stamford, etc. Through decades of years' development, we set up and implemented a well-regulated management system ISO9001 targeting towards competitive price, excellent quality and reputable service in long-term plan. Some products can meet with Euro-II, III and IV exhaust emission.
FAQ(Frequently Asked Question):1. What is your warranty period?Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period. 2. Does your generator have global warranty?Yes, most of our products like Cummins diesel generator enjoy the global warranty service. And the alternator we use like Leateck also enjoy the global warranty service, so you do not need to worry about the aftersales service. 3. Can you accept OEM?Yes, we can accept OEM. 4. What is your payment terms? We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. 5. What is your delivery time? Our normal delivery time is 20 to 25 days. But if your order is some special engine and alternator, then the delivery time is longer.
Contact Details:FOSHAN ORIPO POWER ENGINEERING CO.,LTD
Contact person:Janet
Mobile:+86-18923200408
Fax:0757-28791208
Web:en.oripo.com
| Prod Model: |
OCL-110 |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Dimension: |
3100*1150*1820mm |
| Alternator: |
Leateck/Stamford |
| Controller: |
Smartgen/Deep Sea |
| Insulation Grade: |
H |
| Protection Grade: |
IP21-23 |
| Type: |
Micro-Computer Control Automatic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
