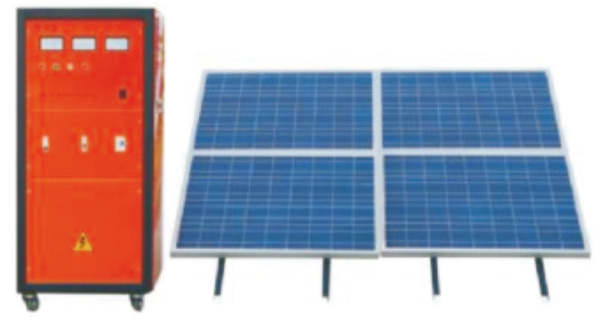

1000W SP-1000L Home Use Solar Power System
1. Energy saving, environmental -friendly
2. Long life service
3. Low maintanence
4. CE&RoHS
Specifications:
1. Simple structure, easy maintenance
2. Output for pure sine wave
3. Micro-computer chip controller, PWM regulator, automatic temperature compensation
4. Electronics-insurance is replaced of fuse, surge and over-current protection
5. Protection is wide, with over-voltage, under-voltage, overload, short-circuit and so on.
6. High performace, especially used at home
7. Charge function: Solar and city power
|
Item No. |
SP-1000L |
|
Capacity |
1000VA |
|
System voltage |
48VDC |
|
Best output power everyday |
1460WH |
|
Inverter |
Output wave |
Pure sine wave |
|
Output voltage |
AC110/220V |
|
Output frequency |
50HZ/60HZ |
|
Output current |
3.6A(220V) / 7.3A(110V) |
|
Precision of output voltage |
±3% |
|
Precision of output frequency |
±0.1% |
|
False output wave of AC |
<3% |
|
Overload ability |
120%,30 seconds |
|
Invert efficiency |
>85% |
|
Solar panel |
Pmax |
400W |
|
Vmp |
70V |
|
Imp |
5.7A |
|
Battery |
Capacity |
48V120AH |
|
Package data: |
|
Part |
Size (L*W*H mm) |
Weight(kg) |
20' (pcs) |
40' (pcs) |
|
Power box |
695*670*1150 |
101 |
27 |
67 |
|
Solar panel |
1200*850*170 |
45 |
|
Solar panel bracket |
1660*85*150 |
28 |
|
Battery |
425*760*269 |
132 |
Yueqing Saibang Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces new source products, including Solar Generator, Solar charge controller, Wind Generator, Solar Inverter, Solar tracking systems and so on.
