Item No: FC-NA1000-B
Applications:
1) Small Refrigerator, Washing machine, Computer, TV, Printer, Water pump, Electric motor, Electric drill, Lighting, etc
2) Household electricity, Traffic, Communication, Market, Building, Field, Offic, Farm. Etc.
Features:
1. Solar Penal: Module efficiency up to 17.1% achieved through advanced cell technology and manufacturing capabilities. Sealed with high transparency low iron tempered glass, anti-aging EVA, high insulation TPT, with the anodizing (or plating finish), High stability with guaranteed+/-3%power output tolerance, ensuring return on investment, Withstands high wind-pressure and snow load;
2. Solar Battery: High-quality sealed valve-regulated lead-acid batteries, the professional design and technology, excellent deep discharge performance, capacity does not decay, no memory, 3-5 years of life, 2 -year warranty;
3. Solar Controller: The latest process technology, precise over-discharge, overcharge, overload, Temperature compensation, etc., Protection function, exquisite beauty indicator, easy to distinguish the solar system working state.
4. Inverter: Inverter technology of pure sine wave, AC power output equal to the commercial power supply, with high conversion efficiency above 90%(The market a lot of inverter output AC power is not stable, long-term use can damage electrical appliances). Precise protection with a low voltage, high voltage, 200% instant anti overload ability, the operating temperature range -10º C~50º C.
5. Beautiful appearance, Easy to install.
Quality and Safety:
1. Solar Panel: 25-year transferrable power output: 5years/95%, 12years/90%, 18years/ 85%, 25years /80%. Warrants 6.7% more than the market standard over 25years. 8-year material and workmanship warranty.
2. Rigorous quality control meeting the highest international standards;
3. ISO9001: 2008, ISO1400: 2004(Quality Management System)certified factories manufacturing world-class products;
4. Products meet international standards and through professional testing and certification authority (SGS, IEC612215, IEC61730, CE, TUV).
Recommended Applications:
1. On-grid utility systems;
2. On-grid commercial systems;
3. Off-grid ground mounted systems;
4. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photovoltaic power plants and other fields.
Quality assurance testing:
1. Thermal cycling test;
2. Thermal shock test;
3. Thermal/Freezing and high humidity cycling test;
4. Electrical isolation test;
5. Hail impact test;
6. Mechanical, wind and twist loading test;
7. Salt mist test;
8. Light and water-exposure test;
9. Moist carbon dioxide/ sulphur dioxide.
Item No. |
Specification |
Specification |
Parameters |

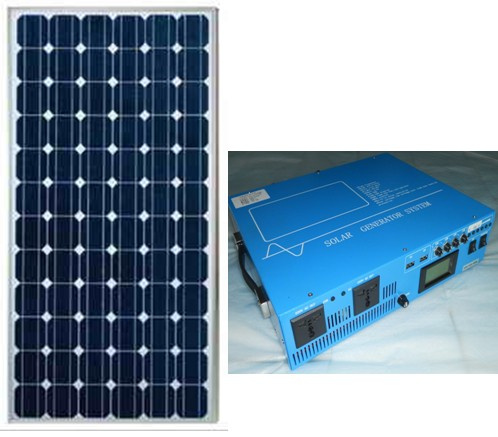

FC-NA1000-B
Photovoltaic off grid system
(Max output power 1000W)
Applications:
TV,Computers,Printers,Fans
, Water pump, Washing
machine, Small Refrigerator
, Electric drill,Electric Tool,Lighting etc. |
Solar Panel |
Polycrystalline |
1200W/72V (8 year quality warranty) |
Solar Battery |
SMF lead acid |
600AH/12V (2 year quality warranty) |
Solar Control System |
Solar Controller |
30A/48V |
Inverter |
AC1000W/DC48V |
Indicator |
Battery capacity,AC,Charge,etc |
Control Box |
Iron painting |
Output Voltage Selectable |
DC12V/24V/48V |
AC110V/220V/230V/240V |
Frequency selectable |
50HZ/60HZ |
Accessories |
Installation Operating Instructions |
Solar panels dedicated plug |
Working temperature |
Solar panels -40ºC~80ºC |
Control system -10ºC~50ºC |
Wooden packing |
Solar Panel (L.W.H):2100*1100*450mm |
1pcs |
Control System (L.W.H):460*380*200mm |
1pcs |
Battery Box (L.W.H):750*650*650mm |
1pcs |
Gross Weight |
371kg |
Quality Certification |
Products through the European CE, TUV quality testing and certification |
Optional Configuration |
Dual power automatic switching function(0.4S only), external battery charging apparatus |
Any customizing request, such as sample, your own brand name, logo and package can be made here. |
