1. The power ratings for natural gas generating set: 10kWe to 1, 200kWe.
2. CCHPs (Combined Cooling, Heating and Power) /Tri-generation: Available on request.
3. The hertz and voltages: 50Hz, 400/230VAC or 60Hz, 220/110VAC, other voltages available on request.
4. The fuels: (1) pipeline natural gas with pressure 1-5kpa (2) CNG (3) LNG.
5. The gas engines: Powered by Cummins, Deutz, GM, Toyota, Isuzu and Suzuki gas engines.
6. The alternators: Leroy Somer, Stamford, Marathon and Chinese ones. Brushless, self-excited.
7. The control cabinets: With controllers from ComAp, DeepSea/DSE and Smartgen. ATS, parallel cabinet and grid parallel cabinet available.
8. The governors: Electronic, from Woodward
9. The mixers: Venturi or variable mixers from IMPCO.
10. The ignition system: Hi-energy ignition system from Woodard, Altronic & Motortech. Lean-burn with closed loop lambda control system available for continuous running gas gensets/CHPs.
11. Gas train: Ball valve, gas filter, DUNGS solenoid valve & pressure switches.
12. Heat recovery system: To recovery heat from jacket water and/or from exhaust pipe, with total heat efficiency up to 85%.
13. Silent canopy: With noise < 72dB(A) @ 7 m. Container type available.
14. Standards and Certifications: ISO 9001, ISO 8528, ISO 3046, CE, UL, CSA, EPA.
15. Factory test: All gensets are tested with min. 2 hours before delivery.
16. Packing: Standard export packing, no fumigation certificate needed.
17. Quality warranty: 1, 500 hours or 18 months for standby gas gensets/CHPs, whichever comes first. 8, 000 hours for continuous running gas gensets/CHPs with European configuration.
|

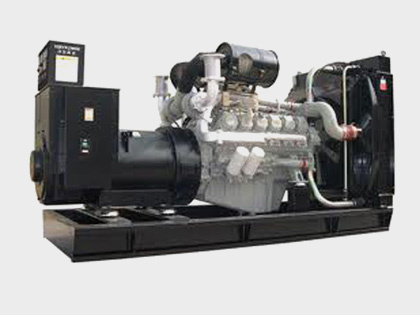

CUMMINS 1000kw Natural Gas Generator Set |
|
Rated Output(KW) |
1000 |
|
Standby Output(KW) |
1100 |
|
Voltage(V) |
400 |
|
Current(A) |
1768 |
|
Size(mm) |
5652*2286*2441 |
|
Approximate weight(KG) |
10900 |
|
Emission levels (Nox) |
Euro II emission(mg/m³) |
|
Engine of CUMMINS 980kw Natural Gas Generator Set |
|
Engine Model |
KT50 |
|
Type |
16 cylinders in line |
|
Bore * Stroke (mm) |
159*159 |
|
Displacement(L) |
50.3 |
|
Compression ratio |
9.5:1 |
|
Rated speed(rpm) |
1500/1800 |
|
Inlet type |
Naturally aspirated |
|
Cooling type |
Cooling water tank |
|
Fuel System |
Low and high pressure |
|
Gas consumption(m 3 /kw·h) |
<0.3 |
|
Rough oil consumption(g/kWh) |
<1.6 |
|
Radiator and oil cooler heat |
320 KW |
|
Exhaust pipe heat radiation |
380 KW |
|
Engine thermal radiation |
50 KW |
|
Alternator thermal radiation |
20 KW |
|
Alternator of CUMMINS 980kw Natural Gas Generator Set |
|
Alternator Model |
Engga EG400L-1000N |
|
Excitation Method |
Brushless Permanent Magnet |
|
Winding pitch |
2/3 pitch |
|
Number of poles |
4 |
|
Bearing number |
1 |
|
Stator Windings |
6 ends |
|
Insulation Class |
H class |
|
Protection class |
IP 21 or IP 23 |
Shandong Weituo Group Co., Ltd. Were established in the early 1950' s and have more than 60 years of machinery production experience. Our product ranges from diesel engines, gas engine, generator sets, tractors from 17HP-120HP, farming implements and so on. We are also is the sole agent of large power tractor from 350--600HP of Germany DTU brand in Asia area.
We have 7 scientific research centers where our products are designed. In our production centers we use specialized casting, machining, pressing and assembly machines, 12 production lines and more than 1, 000 other units of equipment. This collection helps us to achieve a capacity of 200000 engines, 150000 generator sets and 200, 000 tractors annually.
Our tractors include TS series from 17HP to 28HP, TY series from 18HP to 30HP, greenhouse and gardon series compact tractor from 18HP to 30HP, AOYE series from 35HP to 60HP, SWT series from 70HP to 120HP and all kinds of farm implements. We have more than 60 years of tractor manufacturing history and have rich experiences in manufacturing and exporting. Our tractors are famous for its low price and steady propety and long life.
Our engines include three series which feature more than 300 varieties with power ratings varying from 20 to 660kW. You can select from diesel, gas or other fuel-powered options. We have turbo-charged models, with or without a cooler, altiplano models and models that use European technology. The latter reaches new standards in terms of dynamics, durability, low emissions and economical savings. These engines are used in agricultural equipemnt, generator set, ship, pump, air compressor and construction machinery and so on.
Our generator sets series include internal combustion engines and dynamotors that range from 5 to 1, 000KW. We offer automated units, mobile power stations, gas generator sets and more. The noise level for low-noise gensets can reach 60dB at 1M. Our generators are used in industry, standby power in hospital, malls and hotels, telecom
To fasten the company's development, SWT is building "Tractor Industrial Garden"(which occupies 100, 000 square meters in Weifang Economy and Technical Exploiting District) and "Power Industrial Garden"(which occupies 140, 000 square meters in Weifang Fangzi District). Of which Power Industrial Garden will get moving qualification at the middle of 2009. Tractor Industrial Garden mainly produces big and middle series tractors, TY series tractors and various implements. And Power Industrial Garden mainly produces diesel engine, gas engine, generator sets and power equipment parts, etc.
When the two Industrial Gardens are putting into production, SWT will develop into one of the largest enterprise, integrated with products such as tractors, engines, generator sets, various types of machinery parts and components casting process.
