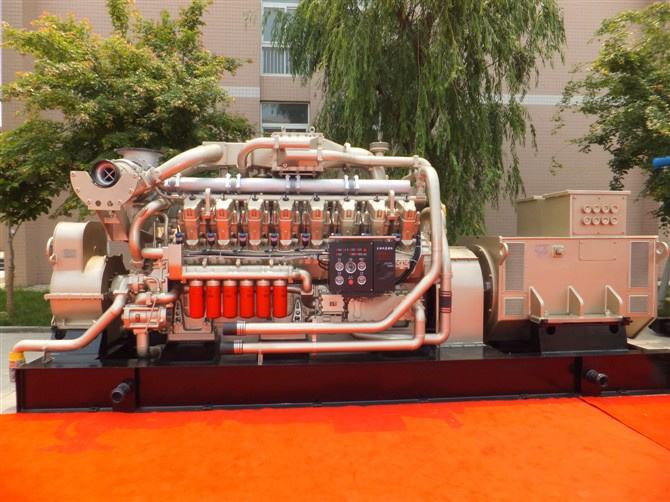

Strong power genset 2000kw natural gas generator set
The generator which aly the natural gas engine generater as Prime Mover has the advatages of high precision for pressure, good characteristic for dynamic state, low voltage waveform distortion rate, efficient, compact structure, convenient maintenance, reliable working, longer service life, enconomic operation, and so on.
Features of Natural gas Power Units:
(1)clean and environment friendly
Natural gas engine has low harmful emission, almost being no pollution to the air.
(2)the generator is safe and raliable
The natural gas generating set 2000kw choose brushless synchronous generators made under an import license, and equiped with atomatic regulator(AVR) devices.
(3)protection for set is more comprehensive
The generator has high performance control system and high quality monito instruments with the functions of low-voltage, over-current and reverse power protections ect. Meanwhile, it can monitor speed, water temperature, oil temperature, oil pressure and exhaust temperature parameters of the enginre, It's aslo equipped with sound and lighr alarm devices for main parameters and automatic shutdown device.
(4)various operation mode
The units can operate singly, in parallel or combine with main network, What' more. It can achieve automatic control according to the requirements of customers
(5)Long time service life
Long life time Natural Gas engine has a life time up to several years if it's properly operated and maintained.
(6)Low cost &wid applications
It can be used as standby power in regions abundant in oil and gas. It's the stable, enviromental protecting and enconomy power equipment
2000kw gen-set & gas engine |
Basic model |
9L26/32 series |
Type |
Four-valve/four-stroke/pre-combustion chamber/water cooling/turbocharged intercooled/electronic control |
Cylinder arrangement |
In-line |
Bore /stroke(mm) |
260*320 |
Piston total displacement(L) |
153 |
Rated speed(r/min) |
1000 |
Rated power(kW) |
2250 |
Heat consumption(kj/kW.h) |
≤9200 |
Lube oil consumption(g/kW.h) |
≤0.6 |
Rotation direction of crankshaft |
Counter clock wise(facing output end ) |
A/F control |
Electronic control |
Ignition control |
Digital ignition controller |
Starting method |
Compressed air motor or electric motor |
Fuel |
Natural gas /biogas/CBM |
Gas generating |
Rated power(kW) |
2000 |
Rated frequency(Hz) |
50 |
Voltage |
According to different demand(6300V/10500V) |
Control panel |
Gen-set smart management module |
Shandong Weituo Group Co., Ltd. Were established in the early 1950' s and have more than 60 years of machinery production experience. Our product ranges from diesel engines, gas engine, generator sets, tractors from 17HP-120HP, farming implements and so on. We are also is the sole agent of large power tractor from 350--600HP of Germany DTU brand in Asia area.
We have 7 scientific research centers where our products are designed. In our production centers we use specialized casting, machining, pressing and assembly machines, 12 production lines and more than 1, 000 other units of equipment. This collection helps us to achieve a capacity of 200000 engines, 150000 generator sets and 200, 000 tractors annually.
Our tractors include TS series from 17HP to 28HP, TY series from 18HP to 30HP, greenhouse and gardon series compact tractor from 18HP to 30HP, AOYE series from 35HP to 60HP, SWT series from 70HP to 120HP and all kinds of farm implements. We have more than 60 years of tractor manufacturing history and have rich experiences in manufacturing and exporting. Our tractors are famous for its low price and steady propety and long life.
Our engines include three series which feature more than 300 varieties with power ratings varying from 20 to 660kW. You can select from diesel, gas or other fuel-powered options. We have turbo-charged models, with or without a cooler, altiplano models and models that use European technology. The latter reaches new standards in terms of dynamics, durability, low emissions and economical savings. These engines are used in agricultural equipemnt, generator set, ship, pump, air compressor and construction machinery and so on.
Our generator sets series include internal combustion engines and dynamotors that range from 5 to 1, 000KW. We offer automated units, mobile power stations, gas generator sets and more. The noise level for low-noise gensets can reach 60dB at 1M. Our generators are used in industry, standby power in hospital, malls and hotels, telecom
To fasten the company's development, SWT is building "Tractor Industrial Garden"(which occupies 100, 000 square meters in Weifang Economy and Technical Exploiting District) and "Power Industrial Garden"(which occupies 140, 000 square meters in Weifang Fangzi District). Of which Power Industrial Garden will get moving qualification at the middle of 2009. Tractor Industrial Garden mainly produces big and middle series tractors, TY series tractors and various implements. And Power Industrial Garden mainly produces diesel engine, gas engine, generator sets and power equipment parts, etc.
When the two Industrial Gardens are putting into production, SWT will develop into one of the largest enterprise, integrated with products such as tractors, engines, generator sets, various types of machinery parts and components casting process.
