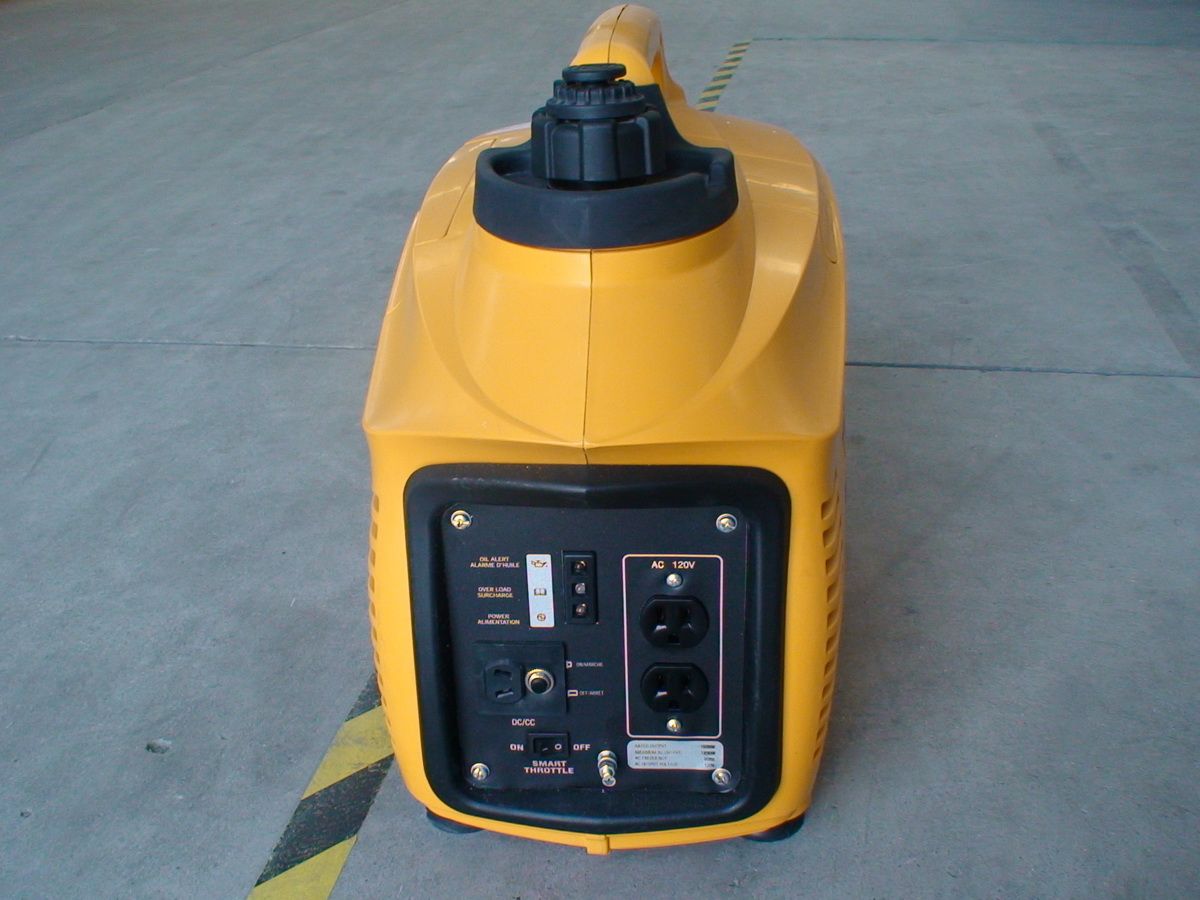

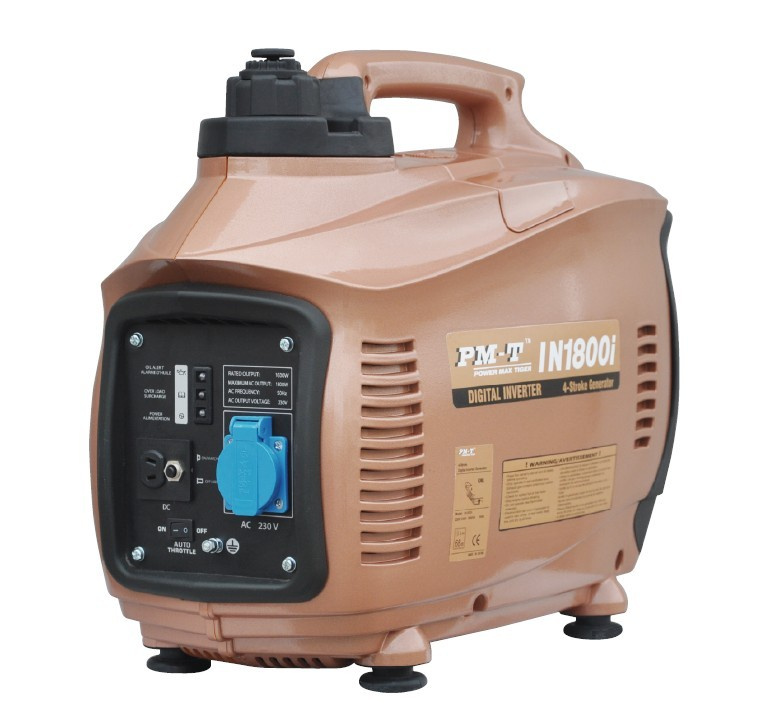

Portable digital inverter generator (IN1800 ):
Model: IN1800i.
Name: Gasoline portable inverter generator
Engine
Engine type: 4-stroke, Overhead Valve, Single Cylinder.
Displacement: 99.3CC
Bore X stroke: φ 58mmx37.6mm
Fuel type: UNLEADED GASOLINE #93
Air intake: Natural Aspiration
Start system: Manual start
Compression ration: 10: 1
Engine speed: 3000rpm ~ 4500rpm.
Nominal Current: 7A
Cooling system: Forced air.
Ignition system: Full transistor
Oil Capacity: 0.5L
Fuel tank capacity: 3L
Fuel consumption: 0.91L/H.
Spark plug: A7RTC
Noise Level (ISO 8528-10 ): 65dB(A )
Active continuous power: 1600W@3800~4300rpm
Maximum power: 1800W@4000~4500rpm
Voltage regulation system: Closed Cycle Control
Protective switch: Electronic Overload Protection
Alternator Type: Permanent Magnet Alternator
Typ of protection: CLASS F (IP23)
Generator
AC Output:
Rated Voltage ( V): 220/230/240 110/120
Rated Frequency (Hz): 50 60
Rated output (VA ): 1600 1600
Max Output (VA ): 1800 1800
Dimensions (LXWXH): 530mm x285mm x450mm
Dimensions packing(LXWXH): 560mm X301mm X 478mm
Dry Weight: 21.5KGS.
Weight incl. Packing: 23.5KGS
Qty in 20ft container: 360PCS.
Available accessories
Convential tool-kit(spark wrench, spanner, manual )
Double-head Screwdriver
Spark plug socket spanner
8-10 socket spanner
Certificate:
CE-Declaration of conformity: GB/1067/1361/08 ISSUE 1
EPA: STP-NRSI-08-01
CARB: EXECUTIVE ORDER U-U166-0001/0002
It's good for outdoor applicaces such as power tools, lights, radio.
Computer friendly sine wave alternator with low thd ouput suitable for sensitive electronics.
Safe to use on all your electronic appliances, equipment, power tools.
Jiangsu Tiger Yacht Manufacture Co., Ltd is the first and one of largest manufacturer on Outboard motor, Gasoline generator and Inverter generator item.
Head office in Suzhou city center, Jiangsu, Factory location in Haimen city, Nantong, Jiangsu China.
Our group company have SAIL outboards, inflatable boat, RIB boat, aluminum boat, PMT inverter generator and all brands of outboards propeller full size etc.
SAIL 4-stroke outboard motor size: F2.5, F4, F5, F6, F9.9, F15, F9.9E, F15E; 2-stroke outboard motor size: OTH9.9, OTH15, OTH30, OTH40, OTH30E, OTH40E.
Tiger generator series: TG950, TG2700, TG4700, TG6700.
PMT and Tiger Inverter generator is: IN800(0.75KW), IN1800(1.6KW), IN2500(2.2KW), INF2800(2.5KW), INF3800(3KW), INF6800(5KW).
SAIL Inflatable boat S shape and E shape: 2.3m, 2.7m, 3m, 3.3m, 3.6m, 3.8m, 4.3m, 4.7m, 5m, 5.5m, 6m, 6.5m, 7m, 8m.
Available on plywood, aluminum, air deck etc floor.
SAIL RIB boat: RIB270, RIB300, RIB330, RIB360, RIB420, RIB470A, RIB470B, RIB470C, RIB520C, RIB580B, RIB580C, RIB680(with twin engine ), RIB730C (single engine ), RIB730B (twin engine ).
New model developing plans further:
Outboard motor: 4-stroke 20HP to 100HP range.
New inverter generator with our own core technology and copyright, It's first generation in this world new technology. The new inverter generator from 1KW to 20KW will be releasing into the market further soon.
Our sail outboards are built with high quality standards and we have thrived to exceed the expectations of the export markets.
Our aim is "To continuously develop new products and improve quality, to shorten the gap with international level and create famous Chinese outboard motors brand".
SAIL / Tiger / PM-T productions with intelligent design, reliability quality, rapid service, bring you better life.
