Home Generator Products 0.8kw Digital Inverter Generator

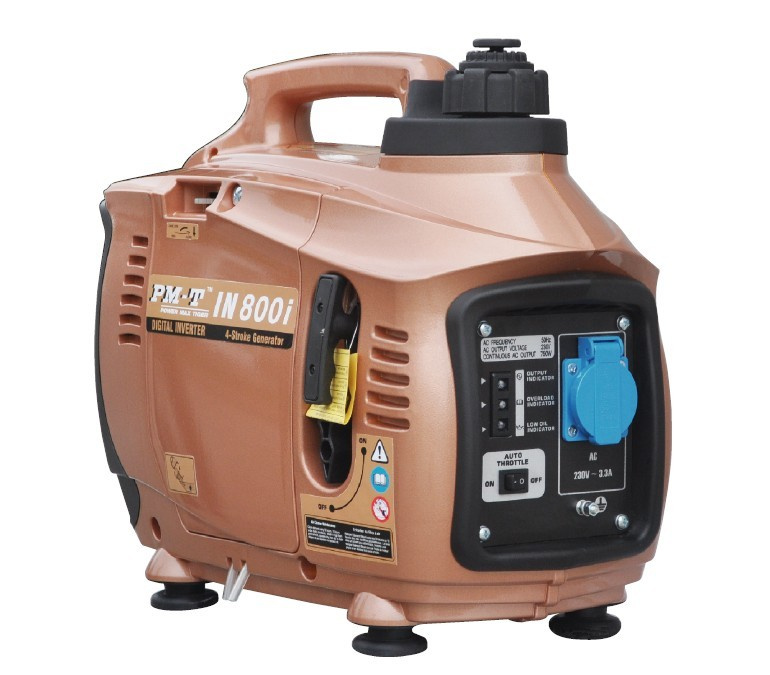

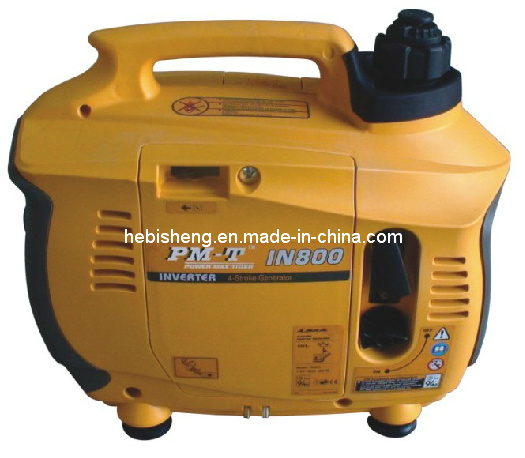

0.8kw Digital Inverter Generator

0.8kw Digital Inverter Generator
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T

TIGER Intelligent design, Reliability quality, Rapid service, We bring you better life!!! Since 1995 year
TIGER / PM-T DEGITAL INVERTER GENERATOR
FUEL CONSUMPTION LOWER , NOISE QUIETER , USE FOR SAFER , WEIGHT LIGHTER THE MOST SMARTEST OF GENERATORS
Designed for better life!!!
Advanced Inverter Technology Provides Reliable Power, Ideal for sensitive equipment computers, TV etc.
It's durable , lightweight, compact design with built-in handle offers portable power for the outdoors , An emergency,
Construction , the home, Events ,Heating and Cooling.
Lightweight and compact up to 40% lighter than a standard generator of equal watts .Built-in-handle-move with minimal effort.
Super Quiet and campground friendly full enclosure drastically reduces noise.
Operation high throttle - for large loads or battery charging immediately,
Eco throttle helps to reduce fuel consumption, operating noise and exhaust emissions level.
Electronic Overload protection circuit breaker protected. Shuts the engine down if oil reaches an unsafe operating level and Prevent engine damage from overheating due to lack of oil.
At-a-glance status Lights LED lights on the control panel indicate system status.
Model number

IN800i

GENERAL FEATURES

Voltage

230V

Maximum power LTP

850@5200-5500rpm

Continuous power COP

750@5000-5400rpm

Nominal Current

7A

Power factor

1

Frequency

50Hz

Phases

SIN WAVE

Battery Charger

High idel/Lower idel: 10-15V/15-20V

ENGINE

Engine Model

140F

Bore x stroke

 φ40mmx30mm

Fuel

Unleaded gasoline#93

cylinders

Single

Displacement

38cc

Air intake

Natural Aspiration

Start system

Manual start

Speed

3000-4500rpm

Oil capacity

0.18L

Fuel consumption full load

0.5L/H

Oil deficiency shut-down

Yes

Fuel tank capacity

1.6L

Running time at 1/2 load

6h

Noise Level (2000/14/EC)

65dB(A)

 ALTERNATOR

Poles

18

Alternator type

Permanent Magnet Alternator

Type of protection

CLASS F (IP23)

Speed

3000-5600rpm

Continuous power

750W

Power factor

1

Active continuous power

750W

DHT

≤3%

Maximum overload

850W

Voltage regulation system

Closed cycle control

Protective swith

Electronic overload protection

OVERALL DIMENSIONS AND WEIGHT

Net weight

12.5KGS

Gross weight

14KGS

Dimensions LXWXH

 448x248x375mm

Dimensions packing LxWxH

460x255x395mm

Accessories  &  Tool-kit

1.Double-head screwdriver
2.Spark plug socket spanner
3.8-10 socket spanner
Spark wrench,Spanner,manual


Prod Model: IN800i
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Maximum Power: 0.8kw
Rated Voltage: 220V/230V/240/110V/120V
Engine Type: 4-Stroke Gasoline
Color: Yellow,Orange, Blue , Green etc
Noise: 65 Dba
Dry Weight: 18kgs
Fuel Consumption At Full Loaded: 0.5L/Hour
Fuel Tank: 1.6L
Displacement: 38cc
Certificate: CE,TUV , EPA, Carb
Output Type: AC Single Phase
Jiangsu Tiger Yacht Manufacture Co., Ltd is the first and one of largest manufacturer on Outboard motor, Gasoline generator and Inverter generator item.
Head office in Suzhou city center, Jiangsu, Factory location in Haimen city, Nantong, Jiangsu China.
Our group company have SAIL outboards, inflatable boat, RIB boat, aluminum boat, PMT inverter generator and all brands of outboards propeller full size etc.

SAIL 4-stroke outboard motor size: F2.5, F4, F5, F6, F9.9, F15, F9.9E, F15E; 2-stroke outboard motor size: OTH9.9, OTH15, OTH30, OTH40, OTH30E, OTH40E.
Tiger generator series: TG950, TG2700, TG4700, TG6700.
PMT and Tiger Inverter generator is: IN800(0.75KW), IN1800(1.6KW), IN2500(2.2KW), INF2800(2.5KW), INF3800(3KW), INF6800(5KW).
SAIL Inflatable boat S shape and E shape: 2.3m, 2.7m, 3m, 3.3m, 3.6m, 3.8m, 4.3m, 4.7m, 5m, 5.5m, 6m, 6.5m, 7m, 8m.
Available on plywood, aluminum, air deck etc floor.

SAIL RIB boat: RIB270, RIB300, RIB330, RIB360, RIB420, RIB470A, RIB470B, RIB470C, RIB520C, RIB580B, RIB580C, RIB680(with twin engine ), RIB730C (single engine ), RIB730B (twin engine ).

New model developing plans further:
Outboard motor: 4-stroke 20HP to 100HP range.
New inverter generator with our own core technology and copyright, It's first generation in this world new technology. The new inverter generator from 1KW to 20KW will be releasing into the market further soon.

Our sail outboards are built with high quality standards and we have thrived to exceed the expectations of the export markets.

Our aim is "To continuously develop new products and improve quality, to shorten the gap with international level and create famous Chinese outboard motors brand".

SAIL / Tiger / PM-T productions with intelligent design, reliability quality, rapid service, bring you better life.
